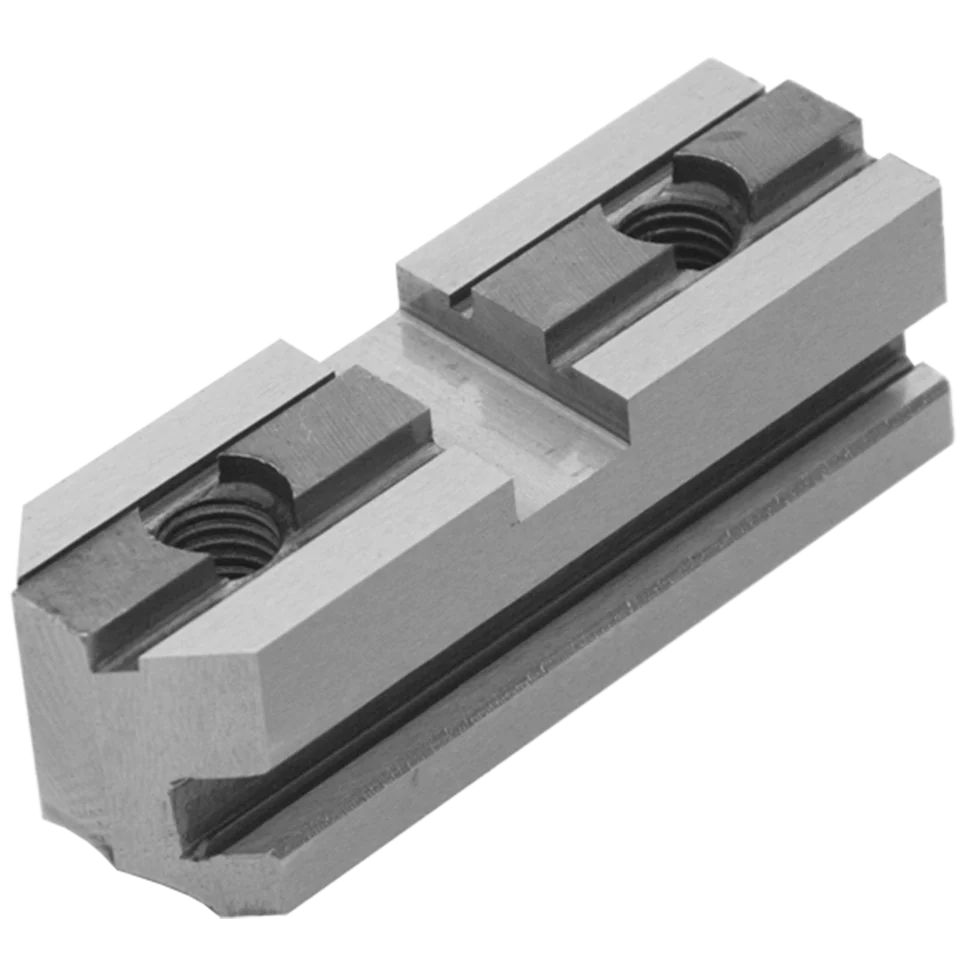

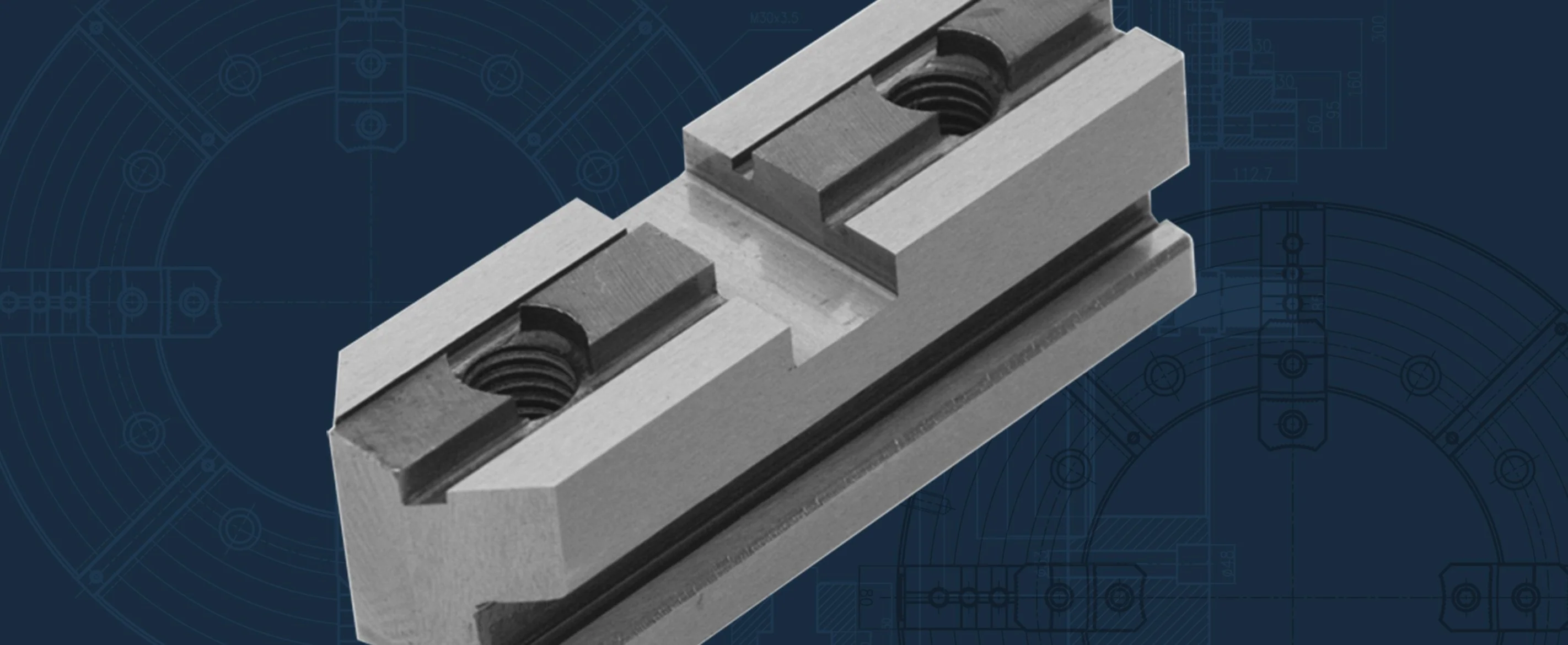

Hard Master Jaws for 4-Jaw Independent Chucks 40"
Product Information
| Jaw Type | Hard Master Jaws |
| Title | Hard Master Jaws for 4-Jaw Independent Chucks - 40" |
| Chuck Type | 4-Jaw / Independent |
| Chuck Dia (in) | 40 |
| Jaw Mount | Tongue & Groove |
| Jaw Material | Steel |
| Number of Jaw Bolt Mounting Holes | 6 |
| Weight Gross (lbs) | 97.0 |
| Includes | 4pc. Master Jaw Set |
Product Dimensions
| Chuck Dia (in) | 40 |
| Chuck Type | Independent |
| A (in) | 3.1496 |
| B (in) | 2.2732 |
| G (in) | .7496 |
| E (in) | 0.2835 |
| F (in) | .9843 |
| C (in) | .5000 |
| H (in) | 3.1496 |
| J (in) | .9843 |
| K (in) | 1-1/2 |
| L (in) | 12.7953 |
| Top Jaw Mounting Bolt Thread Size M (in) | 3/4-10 |
| Operating Screw Thread Size N (mm) | Tr55x8 |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Hard Master Jaws for 4-Jaw Independent Chucks 40"
Hard Master Jaws for 4-Jaw Independent Chucks 40"
Product Information
| Jaw Type | Hard Master Jaws |
| Title | Hard Master Jaws for 4-Jaw Independent Chucks - 40" |
| Chuck Type | 4-Jaw / Independent |
| Chuck Dia (in) | 40 |
| Jaw Mount | Tongue & Groove |
| Jaw Material | Steel |
| Number of Jaw Bolt Mounting Holes | 6 |
| Weight Gross (lbs) | 97.0 |
| Includes | 4pc. Master Jaw Set |
Product Dimensions
| Chuck Dia (in) | 40 |
| Chuck Type | Independent |
| A (in) | 3.1496 |
| B (in) | 2.2732 |
| G (in) | .7496 |
| E (in) | 0.2835 |
| F (in) | .9843 |
| C (in) | .5000 |
| H (in) | 3.1496 |
| J (in) | .9843 |
| K (in) | 1-1/2 |
| L (in) | 12.7953 |
| Top Jaw Mounting Bolt Thread Size M (in) | 3/4-10 |
| Operating Screw Thread Size N (mm) | Tr55x8 |
