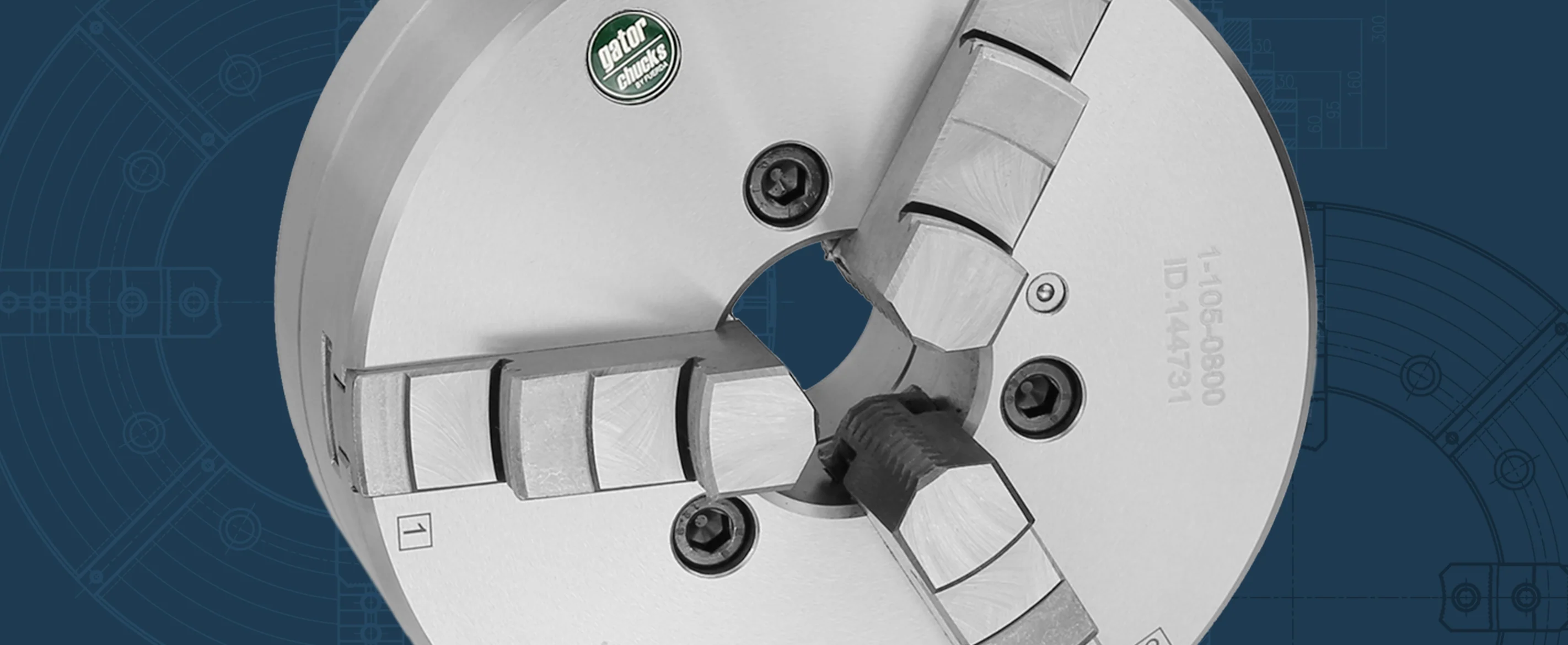

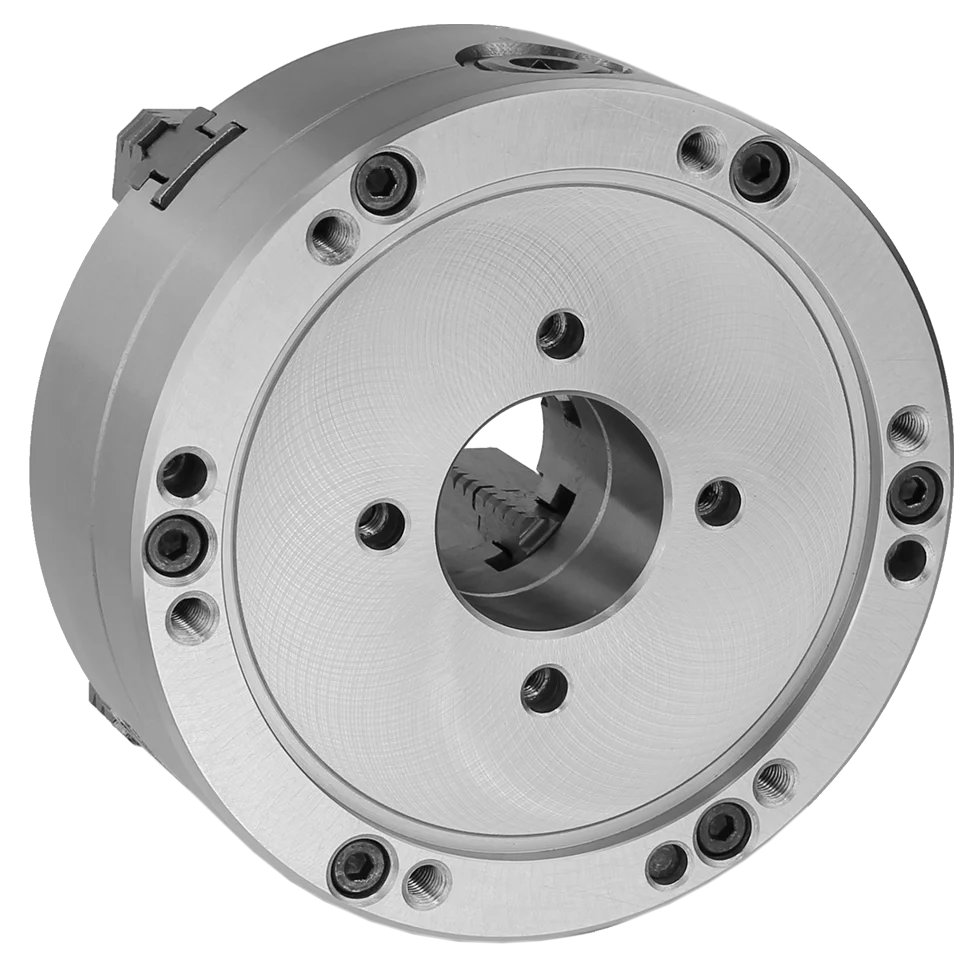

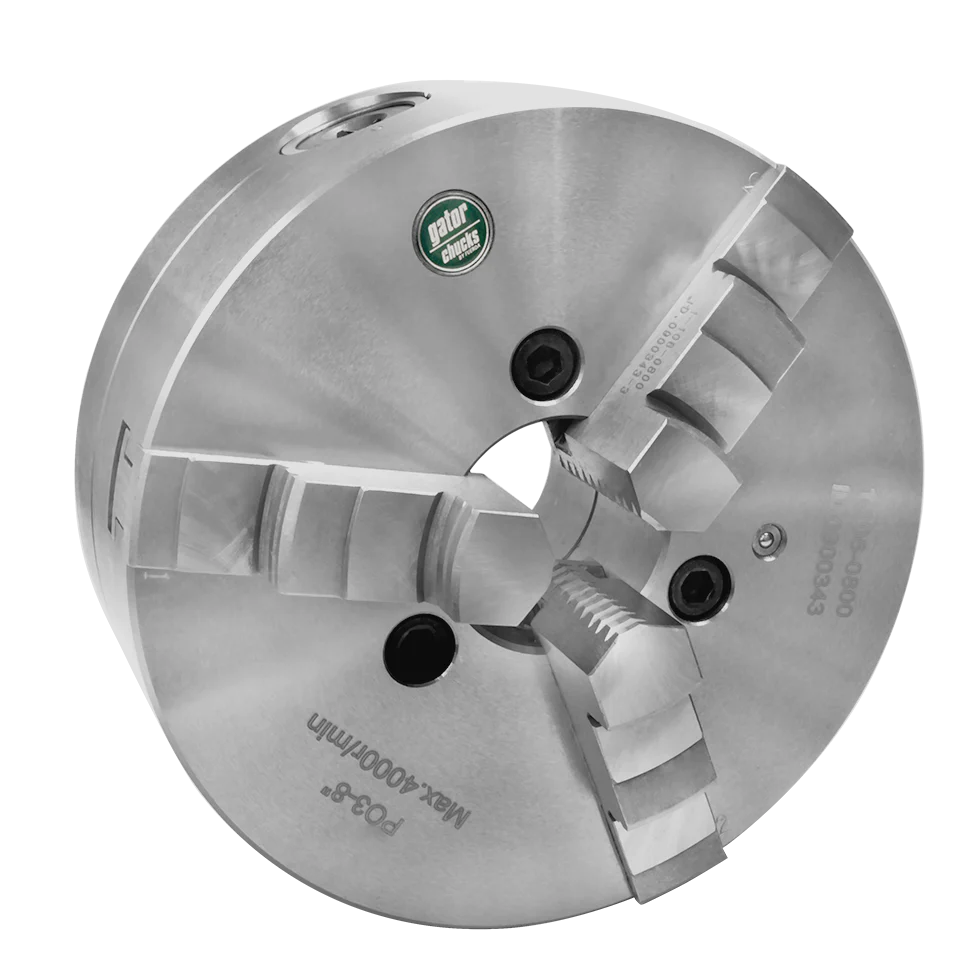

3-Jaw Scroll Chuck, 8" Steel Body, Plain Back, Hard Solid Jaws
Product Information
| Part Number | 1-106-0800 |
| Chuck Type | Scroll Self-Centering |
| Chuck Mount | Plain Back |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 8 |
| Thru-Hole (in) | 2.1654 |
| Gripping Range Min-Max (in) | 0.16 - 7.87 |
| Chuck T.I.R (in) | 0.0016 |
| Max RPM | 4000 |
| Material | Forged Steel |
| Jaws | 3 |
| Jaw Type | Hard Solid |
| Weight Gross (lbs) | 41.89 |
| Includes | 1 Set of Hard Solid ID & OD Jaws, Adapter Mounting Bolts,Chuck Wrench, Hex Keys |
Product Dimensions
| D (in) | 8 |
| F (in) | 6.9291 |
| E (H7) (in) | 6.2992 |
| d Hole (in) | 2.1654 |
| C (in) | 0.1575 |
| H (in) | 3.071 |
| h1 (in) | 1.142 |
| M Mounting Bolt Thread (mm) | M10x1.5 |
| M Mounting Bolt Length (in) | 0.98 |
| Mounting Bolt Qty | 6 |
Crossover to Other Brands
| Bison | 7-829-0800 |
Accessories
| Jaws | |
|---|---|
| ID Hard Solid Jaws (Set) | OJ-PS3-200 |
| OD Hard Solid Jaws (Set) | IJ-PS3-200 |
| Soft Solid Jaws (Set) | SJ-PS3-200 |
| Spare Parts | |
| Chuck Wrench (1 pc) | W-P-200 |
| Scroll (1 pc) | SC-PS-200 |
| Pinion (1 pc) | PI-PO-200 |
| Pinion Sleeve (1 pc) | PS-P-200 |
| Half Ring (1 pc) | HR-P-200 |
| Chuck Mounting Bolts (1 pc) | MB-BS-200 |
| Adapters | |
| FM Machied Adapters A4 | FM-200A4 |
| FM Machied Adapters A5 | FM-200A5 |
| FM Machied Adapters A6 | FM-200A6 |
| FM Machied Adapters D4 | FM-200D4 |
| FM Machied Adapters D5 | FM-200D5 |
| FM Machied Adapters D6 | FM-200D6 |
| FM Machied Adapters L00 | FM-200L00 |
| FM Machied Adapters L0 | FM-200L0 |
| FM Machied Adapters L1 | FM-200L1 |
| SM Semi-Finished Adapters A4 | SM-200A4 |
| SM Semi-Finished Adapters A5 | SM-200A5 |
| SM Semi-Finished Adapters A6 | SM-200A6 |
| SM Semi-Finished Adapters D1-4 | SM-200D4 |
| SM Semi-Finished Adapters D1-5 | SM-200D5 |
| SM Semi-Finished Adapters D1-6 | SM-200D6 |
| SM Semi-Finished Adapters L00 | SM-200L00 |
| SM Semi-Finished Adapters L0 | SM-200L0 |
| SM Semi-Finished Adapters L1 | SM-200L1 |
| SM Semi-Finished Adapters 1-1/2-8UN-2B (T2) | SM-200T2 |
| SM Semi-Finished Adapters 2-1/4-8UN-2B (T5) | SM-200T6 |
| SM Semi-Finished Adapters 2-3/8-6UN-2B (T6) | SM-200T6 |
