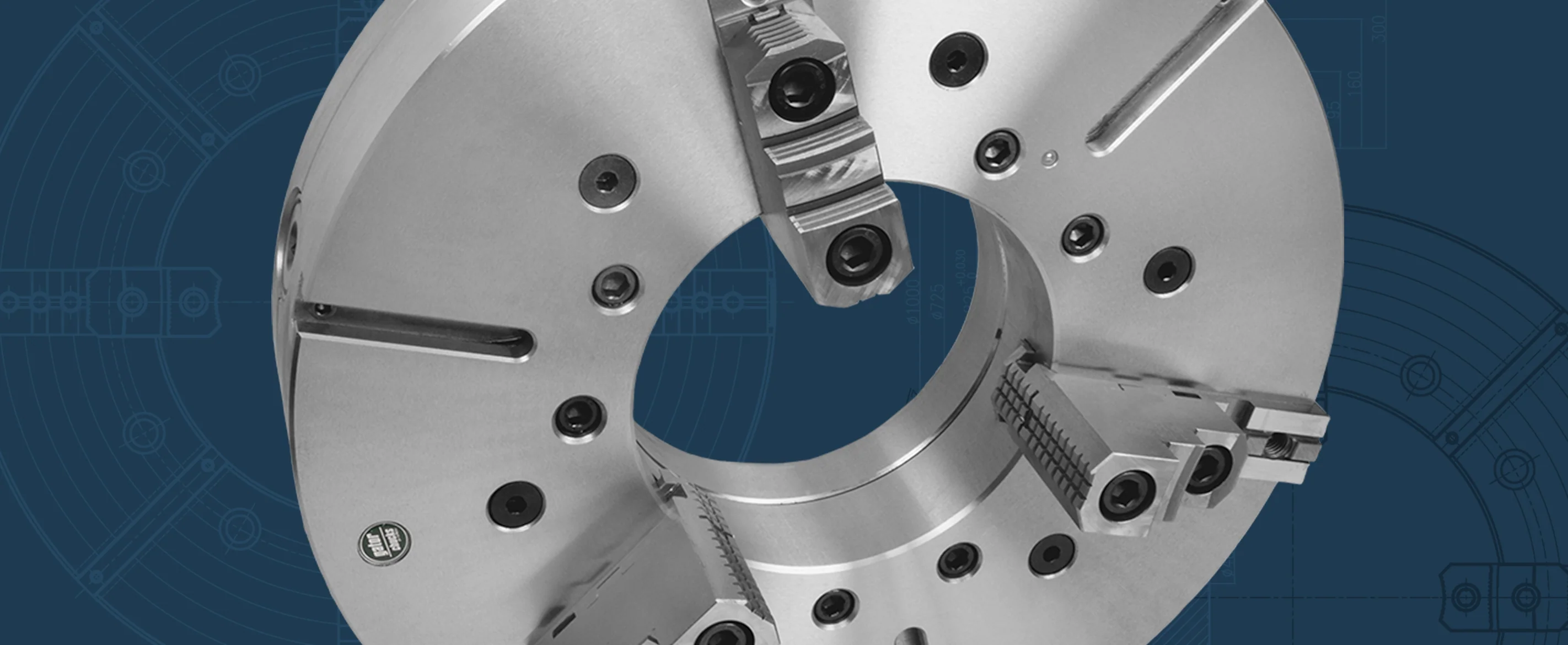

3-Jaw Scroll Chuck, 16" Steel Body, Plain Back, 2 PC Hard Rev. Jaws
Product Information
| Part Number | 1-105-1600 |
| Chuck Type | Scroll Self-Centering |
| Chuck Mount | Plain Back |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 15-3/4 |
| Thru-Hole (in) | 5.3545 |
| Gripping Range Min-Max (in) | 0.39 - 15.75 |
| Chuck T.I.R (in) | 0.0024 |
| Max RPM | 2000 |
| Material | Forged Steel |
| Jaws | 3 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 227.08 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 15-3/4 |
| F (in) | 14.2519 |
| E (H7) (in) | 12.9921 |
| d Hole (in) | 5.3545 |
| C (in) | 0.1969 |
| H (in) | 4.252 |
| h (in) | 2.854 |
| M Mounting Bolt Thread (mm) | M16x2 |
| M Mounting Bolt Length (in) | 1.57 |
| Mounting Bolt Qty | 6 |
Crossover to Other Brands
| Bison | 7-820-1600 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (set) | TJ-PS3-400 |
| Hard Master Jaws (set) | MJ-PS3-400 |
| Soft Top Jaws (set) | STJ-PS1-400 |
| Spare Parts | |
| Chuck Wrench (1 pc) | W-P-400 |
| Scroll (1 pc) | SC-PS-400 |
| Pinion (1 pc) | PI-PO-400 |
| Pinion Sleeve (1 pc) | PS-P-400 |
| Half Ring (1 pc) | HR-P-400 |
| Chuck Mounting Bolts (1 pc) | MB-BS-400 |
| Adapters | |
| FM Machied Adapters A6 | FM-400A6 |
| FM Machied Adapters A8 | FM-400A8 |
| FM Machied Adapters A11 | FM-400A11 |
| FM Machied Adapters D6 | FM-400D6 |
| FM Machied Adapters D8 | FM-400D8 |
| FM Machied Adapters D11 | FM-400D11 |
| FM Machied Adapters L1 | FM-400L1 |
| FM Machied Adapters L2 | FM-400L2 |
| FM Machied Adapters L3 | FM-400L3 |
| SM Semi-Finished Adapters A6 | SM-400A6 |
| SM Semi-Finished Adapters A8 | SM-400A8 |
| SM Semi-Finished Adapters A11 | SM-400A11 |
| SM Semi-Finished Adapters D1-6 | SM-400D6 |
| SM Semi-Finished Adapters D1-8 | SM-400D8 |
| SM Semi-Finished Adapters D1-11 | SM-400D11 |
| SM Semi-Finished Adapters L1 | SM-400L1 |
| SM Semi-Finished Adapters L2 | SM-400L2 |
| SM Semi-Finished Adapters L3 | SM-400L3 |
