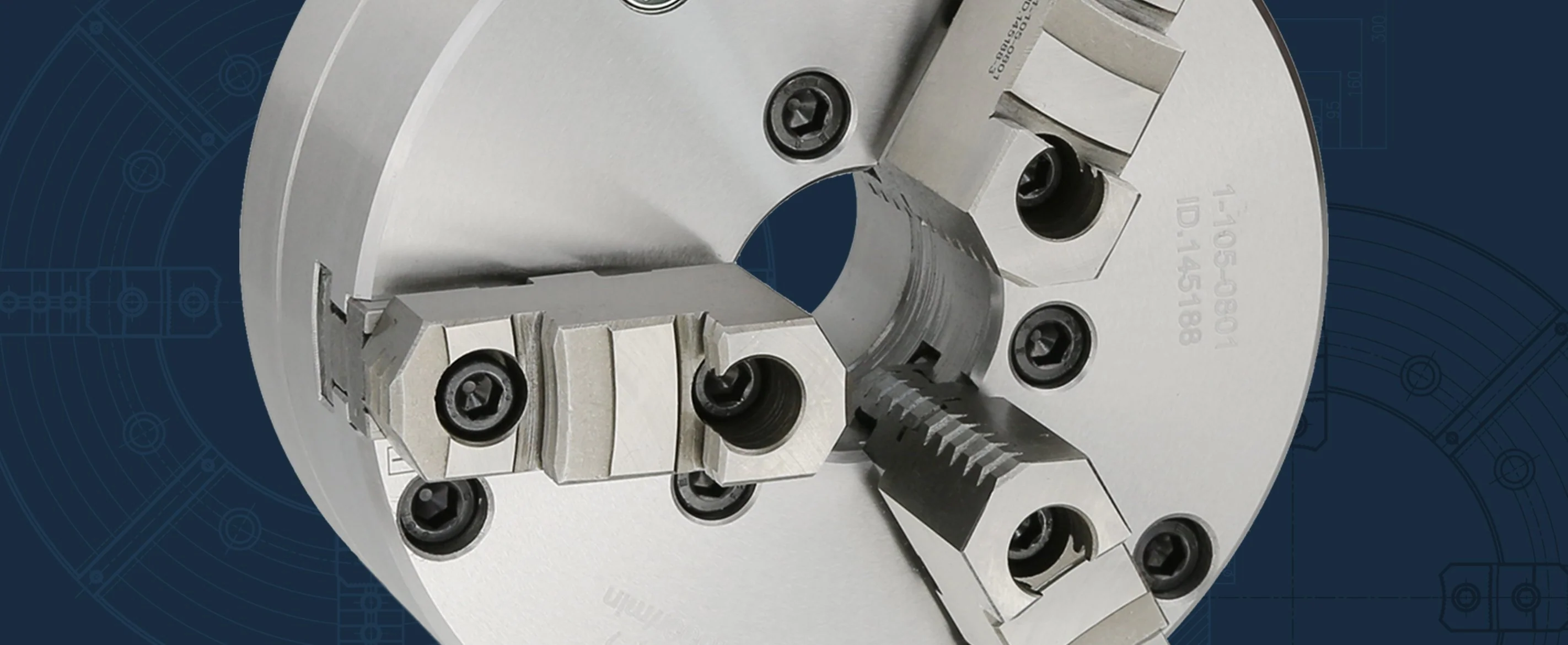

3-Jaw Scroll Chuck, 10" Steel Body, Front Mount, 2 PC Hard Rev. Jaws
Product Information
| Part Number | 1-105-1001 |
| Chuck Type | Scroll Self-Centering |
| Chuck Mount | Front Mount |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 10 |
| Thru-Hole (in) | 2.9921 |
| Gripping Range Min-Max (in) | 0.20 - 9.84 |
| Chuck T.I.R (in) | 0.0016 |
| Max RPM | 3500 |
| Material | Forged Steel |
| Jaws | 3 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 67.24 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 10 |
| F (in) | 8.8189 |
| E H7 (in) | 7.8740 |
| d Hole (in) | 2.9921 |
| C (in) | 0.1969 |
| H (in) | 3.504 |
| h (in) | 2.087 |
| M1 Front Mounting Bolt Thread (in) | 1/2"-13 |
| M1 Front Mounting Bolt Qty | 3 |
| M Back Mounting Bolt Thread (mm) | M12x1.75 |
| M Back Mounting Bolt Qty | 3 |
Crossover to Other Brands
| Bison | 7-813-1000 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (Set) | TJ-PS3-250 |
| Hard Master Jaws (Set) | MJ-PS3-250 |
| Soft Top Jaws (Set) | STJ-PS1-250 |
| Spare Parts | |
| Chuck Wrench (1Pc) | W-P-315 |
| Scroll (1Pc) | SC-PS-250 |
| Pinion (1Pc) | PI-PO-250 |
| Pinion Sleeve (1Pc) | PS-P-250 |
| Half Ring (1Pc) | HR-P-250 |
| Chuck Mounting Bolts G (1Pc) | MB-FS-250 |
| Chuck Mounting Bolts M (1Pc) | MB-BS-250 |
| Base Plates | |
| Base Plates Optional (1Pc) | F-BPD-250 |
