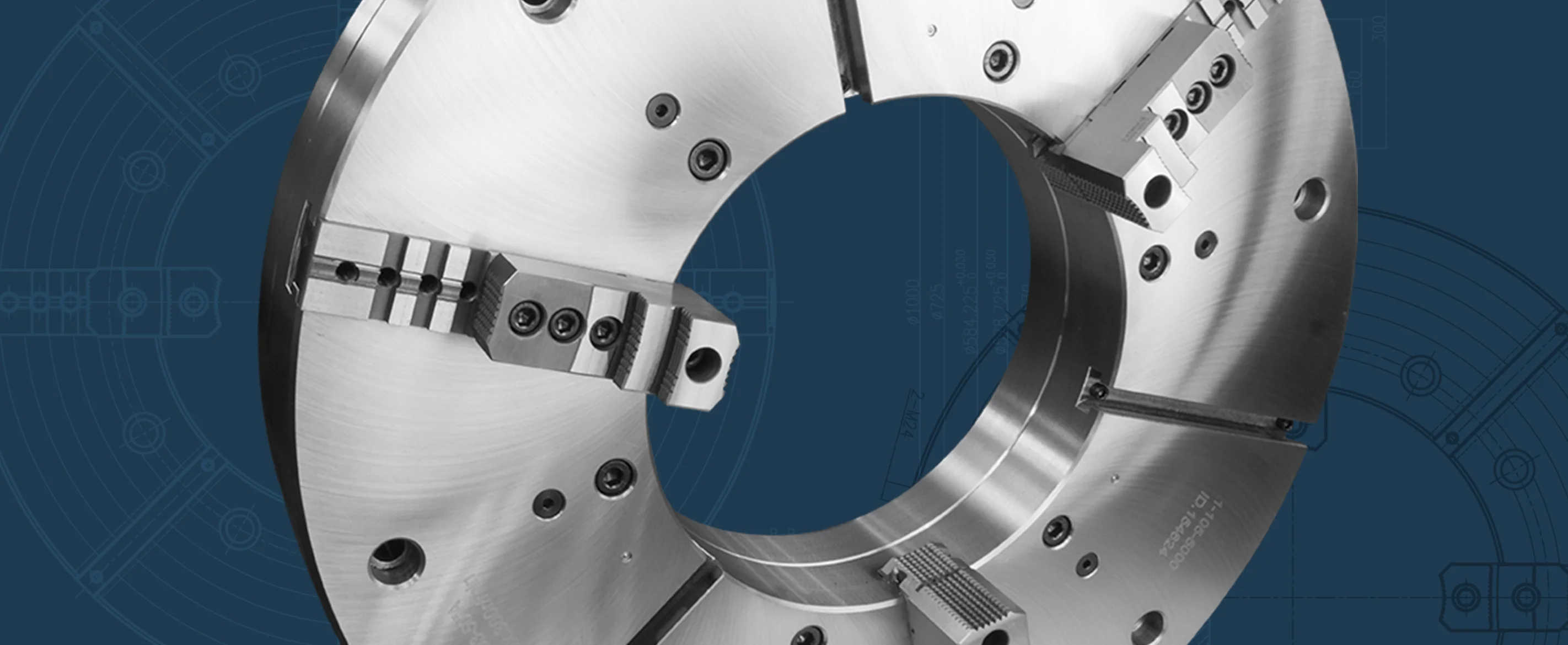

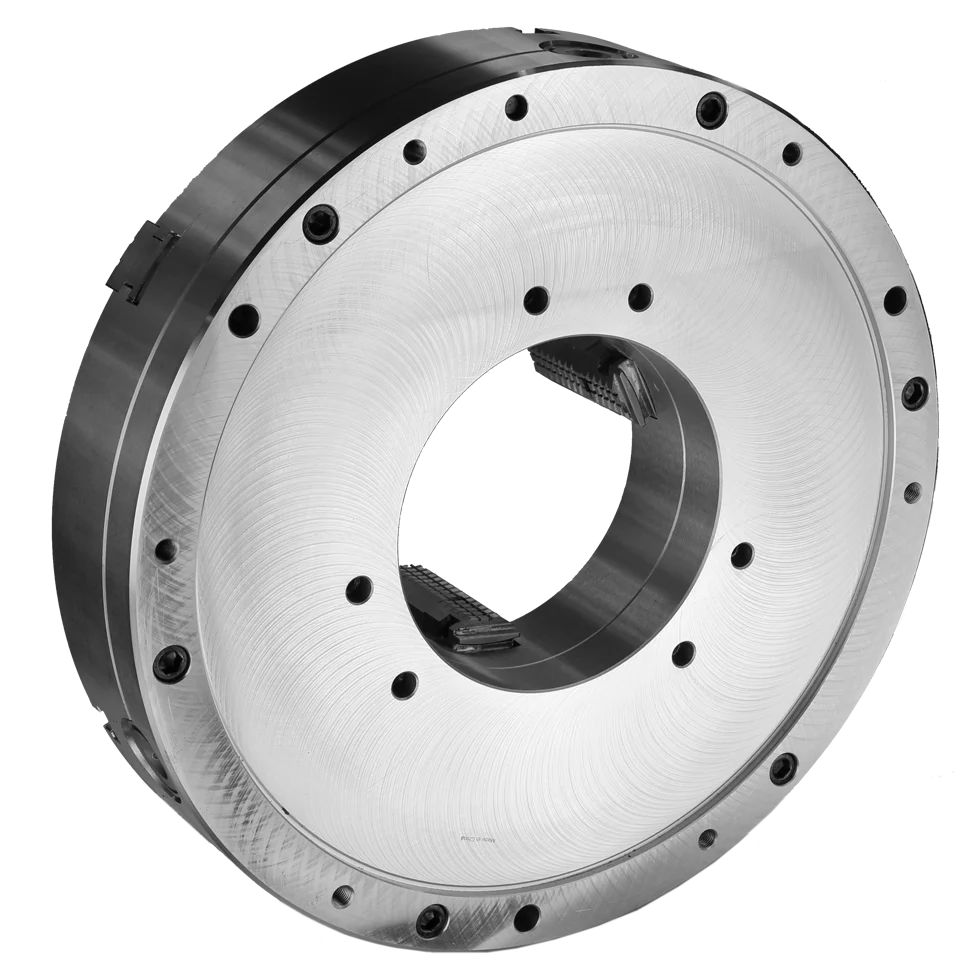

3-Jaw Scroll Chuck, 40" Steel Body, Plain Back, 2 PC Hard Rev. Jaws
Product Information
| Part Number | 1-105-4000 |
| Chuck Type | Scroll Self-Centering |
| Chuck Mount | Plain Back |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 40 |
| Thru-Hole (in) | 18.11 |
| Gripping Range Min-Max (in) | 9.84 - 45.28 |
| Chuck T.I.R (in) | 0.0071 |
| Max RPM | 400 |
| Material | Forged Steel |
| Jaws | 3 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 1873.93 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 40 |
| F (in) | 37.4016 |
| E (H7) (in) | 35.8268 |
| d Hole (in) | 18.11 |
| C (in) | 0.3543 |
| H (in) | 7.087 |
| h (in) | 4.409 |
| M Mounting Bolt Thread (mm) | 1" - 8 |
| M Mounting Bolt Length (in) | 7.874 |
| Mounting Bolt Qty | 6 |
Accessories
| Hard Top Jaws (set) | TJ-PS3-1000 |
| Hard Master Jaws (set) | MJ-PS3-1000 |
| Soft Top Jaws (set) | STJ-PS1-1000 |
| Chuck Wrench (1 pc) | W-P-1000 |
| Scroll (1 pc) | SC-PS-1000 |
| Pinion (1 pc) | PI-PO-1000 |
| Pinion Sleeve (1 pc) | PS-P-1000 |
| Half Ring (1 pc) | HR-P-1000 |
| Chuck Mounting Bolts (1 pc) | MB-BS-1000 |
