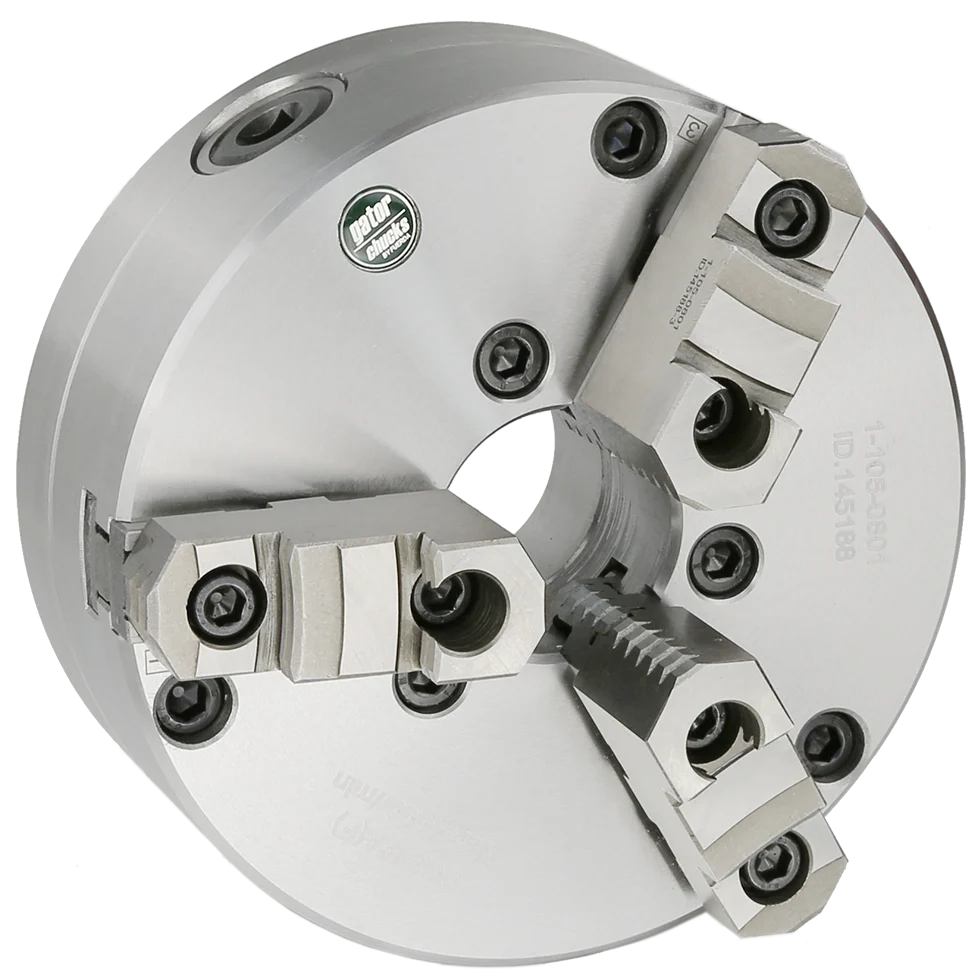

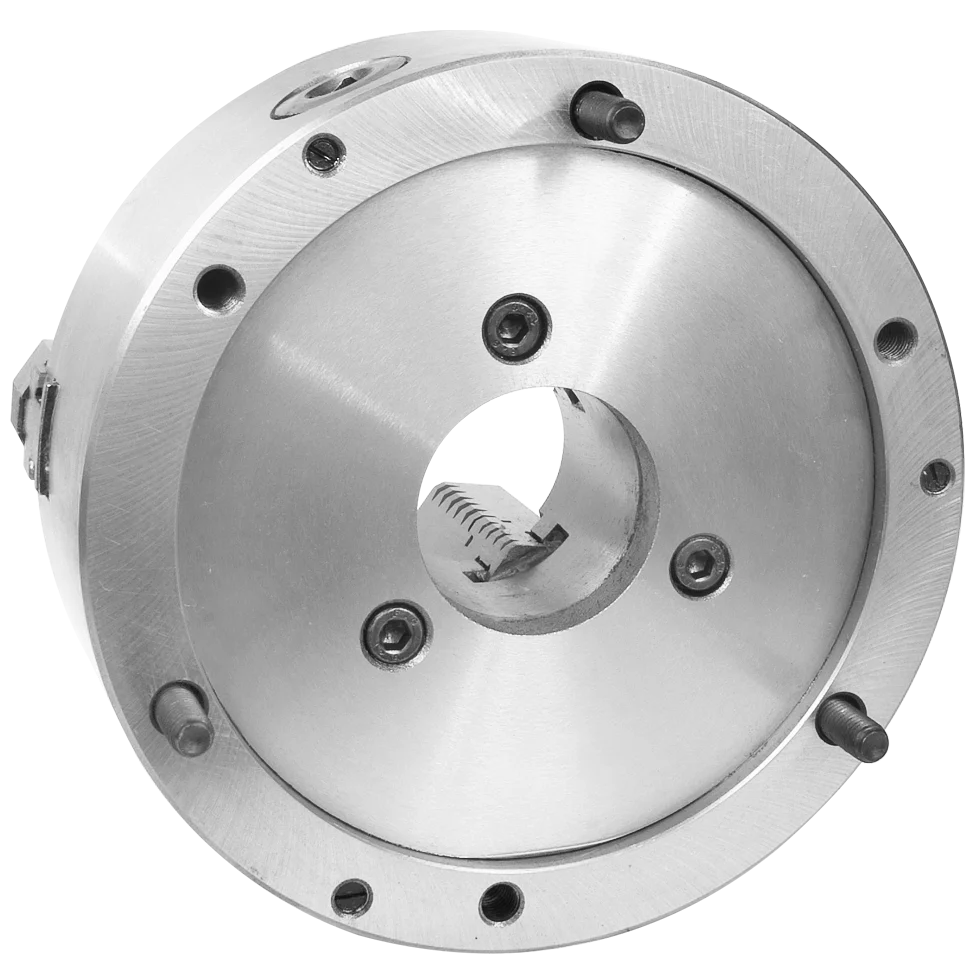

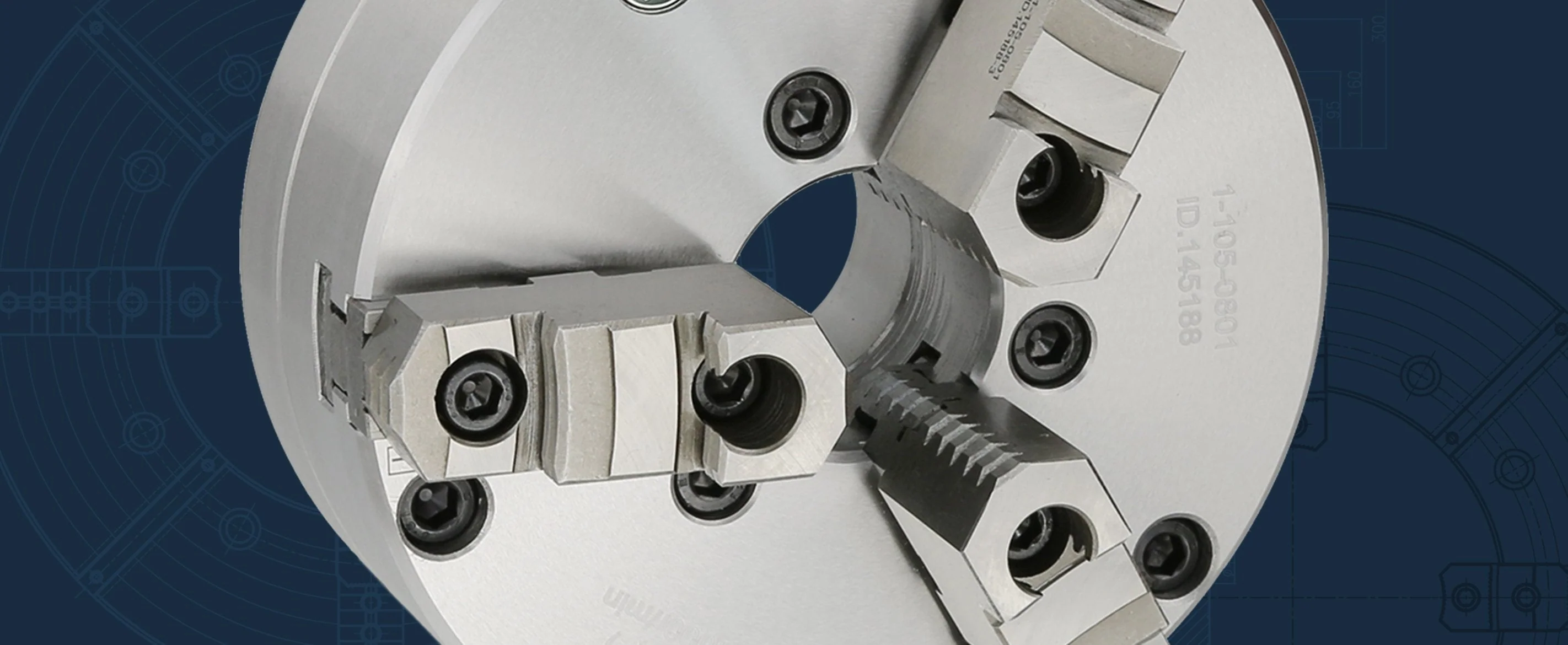

3-Jaw Scroll Chuck, 20" Steel Body, Front Mount, 2 PC Hard Rev. Jaws
Product Information
| Part Number | 1-105-2001 |
| Chuck Type | Scroll Self-Centering |
| Chuck Mount | Front Mount |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 20 |
| Thru-Hole (in) | 7.4803 |
| Gripping Range Min-Max (in) | 0.79 - 19.69 |
| Chuck T.I.R (in) | 0.004 |
| Max RPM | 1200 |
| Material | Forged Steel |
| Jaws | 3 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 320 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 20 |
| F (in) | 18.0314 |
| E H7 (in) | 16.5354 |
| d Hole (in) | 7.4803 |
| C (in) | 0.1969 |
| H (in) | 4.685 |
| h (in) | 3.602 |
| M1 Front Mounting Bolt Thread (in) | 3/4"-10 |
| M1 Front Mounting Bolt Qty | 3 |
| M Back Mounting Bolt Thread (mm) | M16x2 |
| M Back Mounting Bolt Qty | 3 |
Crossover to Other Brands
| Bison | 7-813-2000 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (set) | TJ-PS3-500 |
| Hard Master Jaws (set) | MJ-PS3-500 |
| Soft Top Jaws (set) | STJ-PS1-500 |
| Spare Parts | |
| Chuck Wrench (1 pc) | W-P-630 |
| Scroll (1 pc) | SC-PS-500 |
| Pinion (1 pc) | PI-PO-500 |
| Pinion Sleeve (1 pc) | PS-P-500 |
| Half Ring (1 pc) | HR-P-500 |
| Chuck Mounting Bolts G (1Pc) | MB-FS-500 |
| Chuck Mounting Bolts M (1Pc) | MB-BS-500 |
| Adapters | |
| Base Plates Optional (1Pc) | F-BPD-500 |
