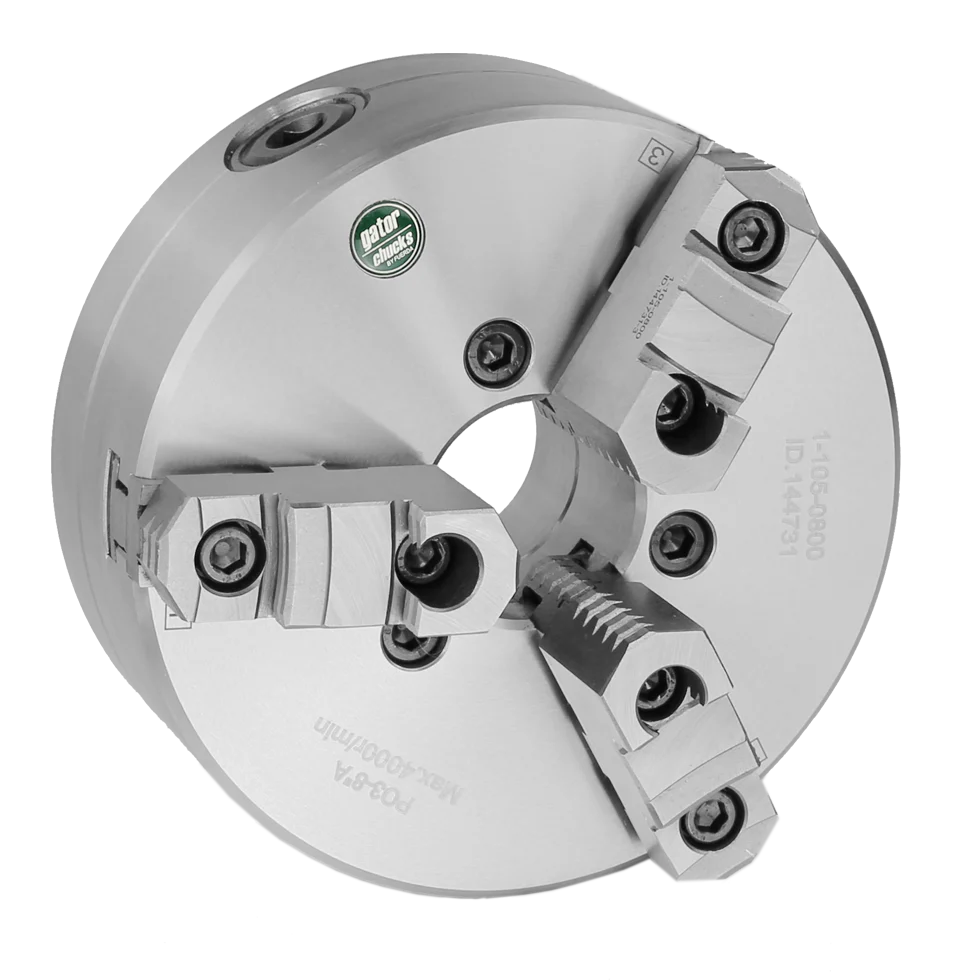

Product Information

Part Number	1-105-1200
Chuck Type	Scroll Self-Centering

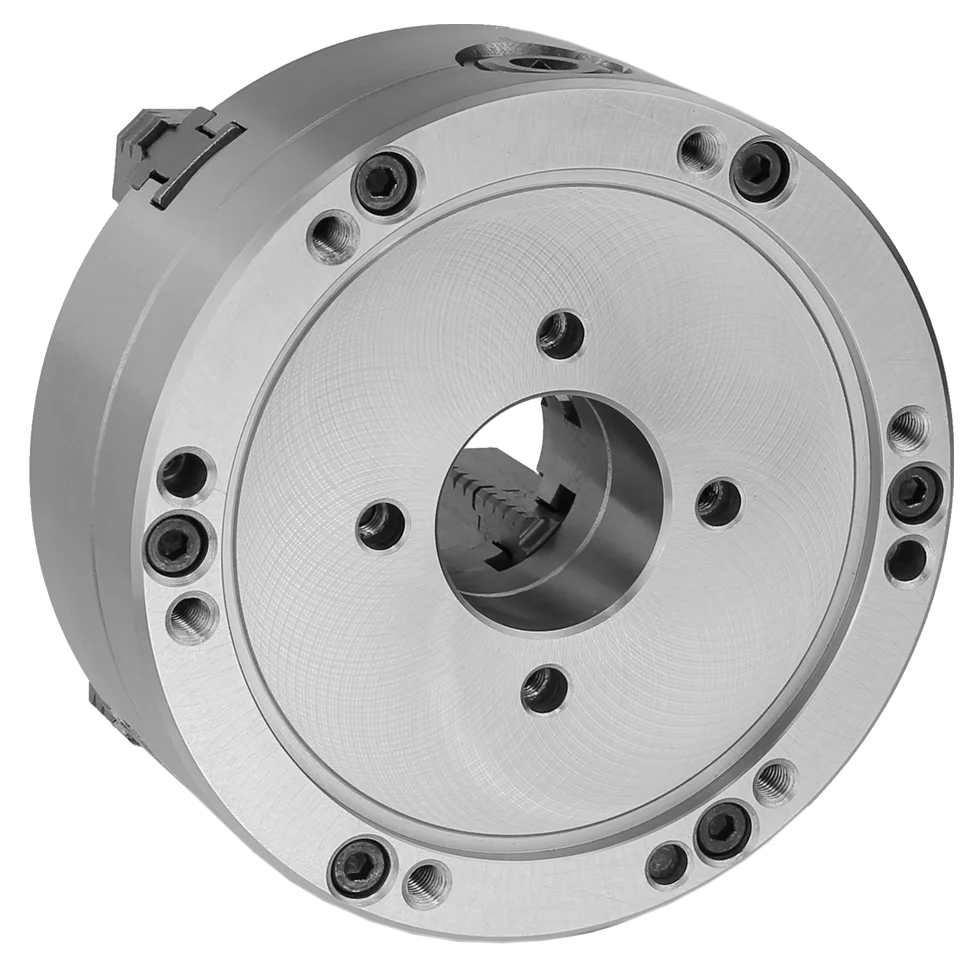

Chuck Mount	Plain Back
Spindle Type	Requires Adapter
Chuck Dia (in)	12-1/2
Thru-Hole (in)	4.0551
Gripping Range Min-Max (in)	0.39 - 12.40
Chuck T.I.R (in)	0.002
Max RPM	2800
Material	Forged Steel
Jaws	3
Jaw Type	2 PC Hard  Reversible
Weight Gross (lbs)	129.19
Includes	1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts

Product Dimensions

D (in)	12-1/2
F (in)	11.2598
E (H7) (in)	10.2362
d Hole (in)	4.0551
C (in)	0.1969
H (in)	3.787
h (in)	2.362
M Mounting Bolt Thread (mm)	M16x2
M Mounting Bolt Length (in)	1.18
Mounting Bolt Qty	6

Crossover to Other Brands

Bison

7-820-1200

Accessories

Jaws
Hard Top Jaws (set)	TJ-PS3-315
Hard Master Jaws (set)	MJ-PS3-315
Soft Top Jaws (set)	STJ-PS1-315
Spare Parts
Chuck Wrench (1 pc)	W-P-315
Scroll (1 pc)	SC-PS-315
Pinion (1 pc)	PI-PO-315
Pinion Sleeve (1 pc)	PS-P-315
Half Ring (1 pc)	HR-P-315
Chuck Mounting Bolts (1 pc)	MB-BS-315
Adapters
FM Machied Adapters A6	FM-315A6
FM Machied Adapters A8	FM-315A8
FM Machied Adapters A11	FM-315A11
FM Machied Adapters D6	FM-315D6
FM Machied Adapters D8	FM-315D8
FM Machied Adapters D11	FM-315D11
FM Machied Adapters L0	FM-315L0
FM Machied Adapters L1	FM-315L1
FM Machied Adapters L2	FM-315L2
SM Semi-Finished Adapters A6	SM-315A6
SM Semi-Finished Adapters A8	SM-315A8
SM Semi-Finished Adapters A11	SM-315A11
SM Semi-Finished Adapters D1-6	SM-315D6
SM Semi-Finished Adapters D1-8	SM-315D8
SM Semi-Finished Adapters D1-11	SM-315D11
SM Semi-Finished Adapters L0	SM-315L0
SM Semi-Finished Adapters L1	SM-315L1
SM Semi-Finished Adapters L2	SM-315L2
SM Semi-Finished Adapters 2-3/8-6UN-2B (T6)	SM-315T6
