Product Information

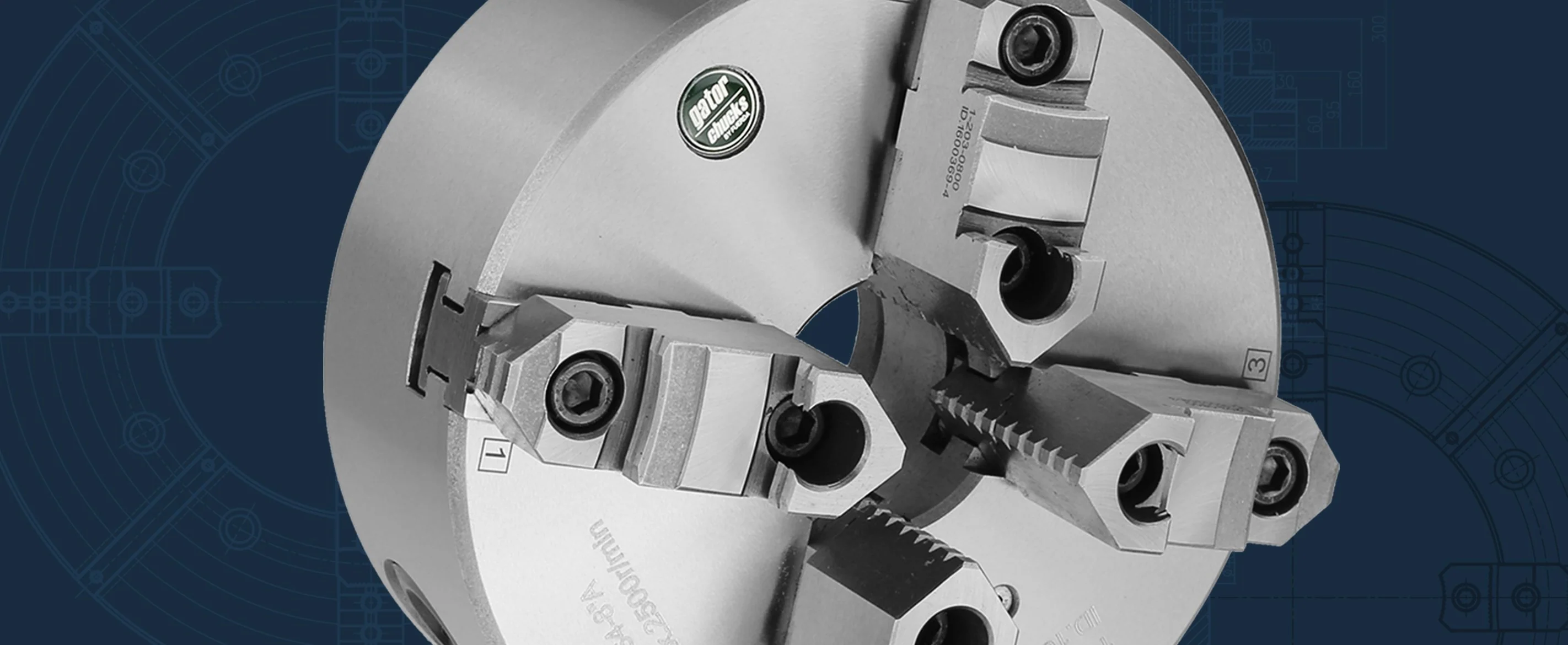

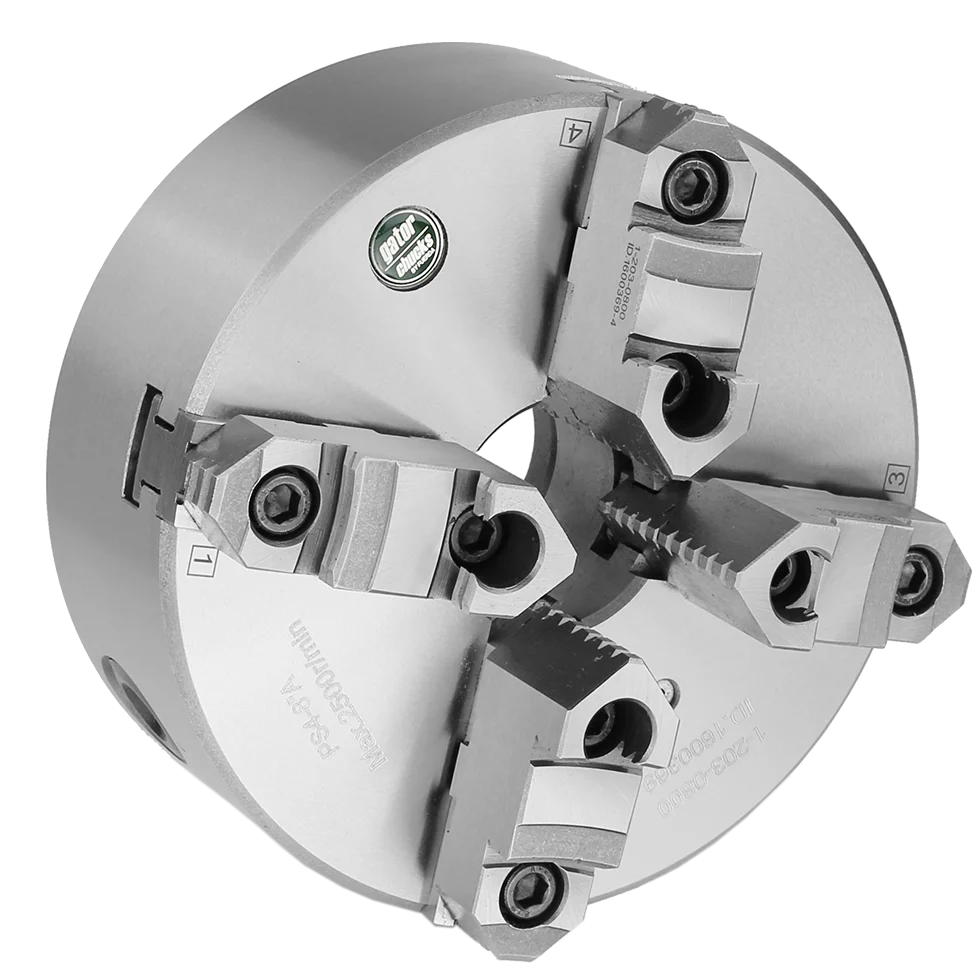

Title	4-Jaw Scroll Chuck, 5" Cast-Iron Body, Plain Back, 2 PC Hard Rev. Jaws
Chuck Type	Scroll Self-Centering

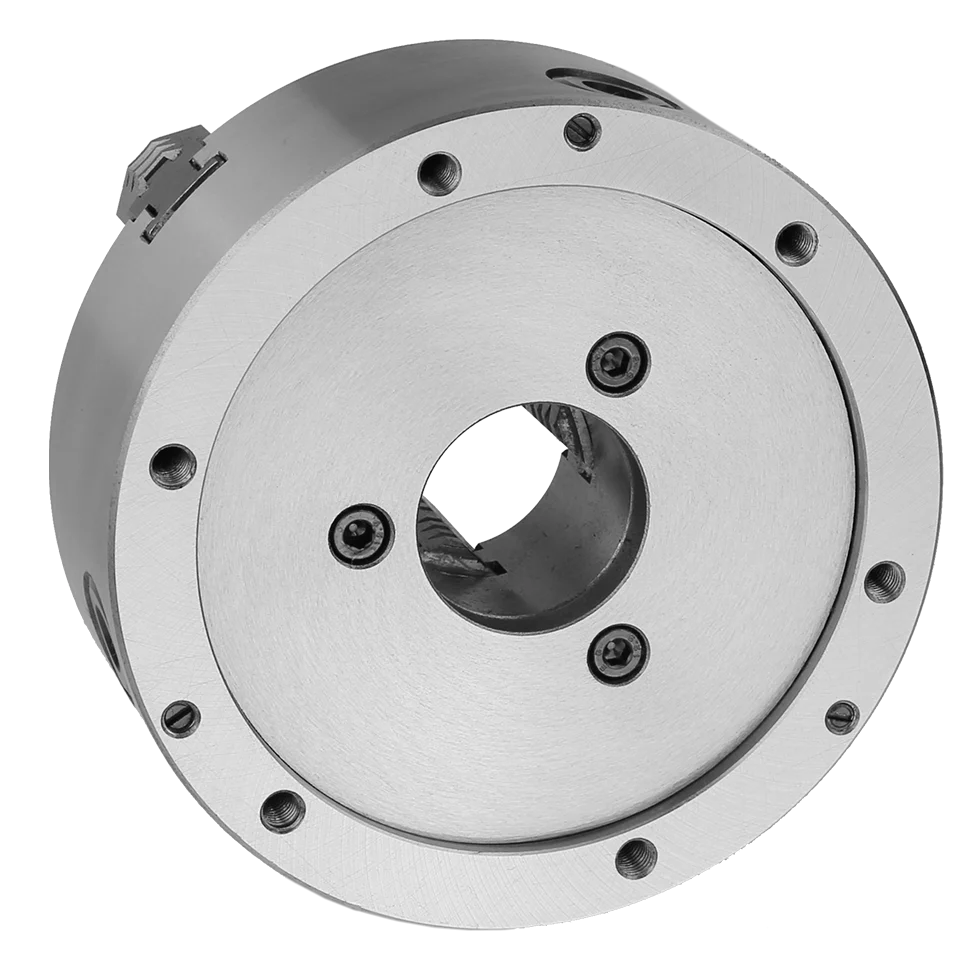

Chuck Mount	Plain Back
Spindle Type	Requires Adapter
Chuck Dia (in)	5
Thru-Hole (in)	1.3976
Gripping Range Min-Max (in)	0.12 - 4.92
Chuck T.I.R (in)	0.0012
Max RPM	3200
Material	Cast Iron
Jaws	4
Jaw Type	2 PC Hard  Reversible
Weight Gross (lbs)	10.58
Includes	1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys

Product Dimensions

D (in)	5
F  (in)	4.2520
E (H7) (in)	3.7402
d Hole (in)	1.3976
C (in)	.1575
H  (in)	2.205
h  (in)	1.575
M Mounting Bolt Thread	M8x1.25
M Mounting Bolt Length (in)	0.98
Mounting Bolt Qty	3

Crossover to Other Brands

Bison

7-840-0500

Accessories

Jaws
Hard Top Jaws (set)	TJ-PS4-125
Hard Master Jaws (set)	MJ-PS4-125
Soft Top Jaws (set)	STJ-PS1-125
Spare Parts
Chuck Wrench (1 pc)	W-P-125
Scroll (1 pc)	SC-PS-125
Pinion (1 pc)	PI-PS-125
Pinion Screw (1 pc)	PH-P-125
Chuck Mounting Bolts (1 pc)	MB-BS-125
Adapters
FM Machined Adapters D3	FM-125D3
FM Machined Adapters D4	FM-125D4
SM Semi-Finished Adapters D1-3	SM-125D3
SM Semi-Finished Adapters D1-4	SM-125D4
SM Semi-Finished Adapters 1-1/2-8UN-2B (T2)	SM-125T2
SM Semi-Finished Adapters 1-1/8-12W (T3)	SM-125T3
SM Semi-Finished Adapters 2-3/16-10 Hardinge (T4)	SM-125T4
SM Semi-Finished Adapters 2-1/4-8UN-2B (T5)	SM-125T5
