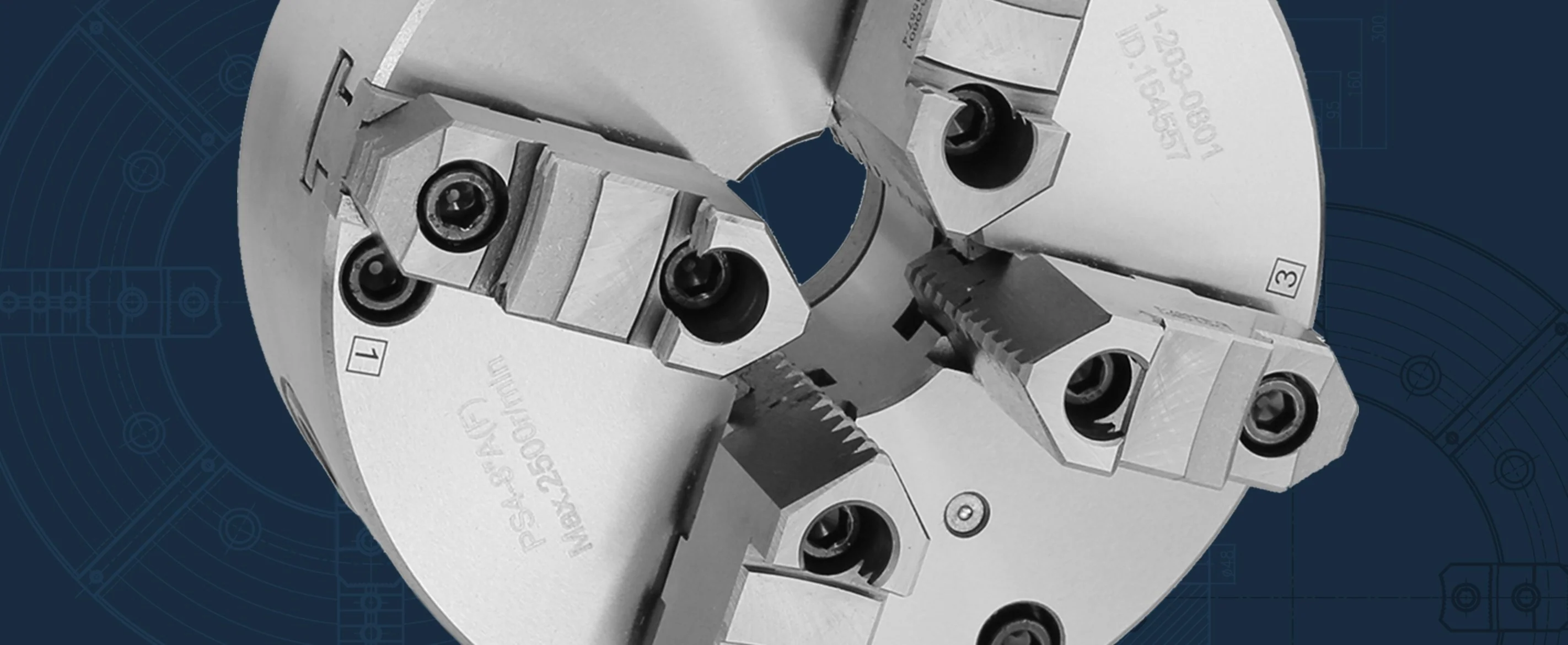

4-Jaw Scroll Chuck, 5" Cast-Iron Body, Front Mount, 2 PC Hard Rev. Jaws
Product Information
| Chuck Type | Scroll Self-Centering |
| Chuck Mount | Front Mount |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 5 |
| Thru-Hole (in) | 1.2598 |
| Gripping Range Min-Max (in) | 0.12 - 4.92 |
| Chuck T.I.R (in) | 0.0012 |
| Max RPM | 3200 |
| Material | Cast Iron |
| Jaws | 4 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 10.8 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys |
Product Dimensions
| D (in) | 5 |
| F (in) | 4.2520 |
| E H7 (in) | 3.7402 |
| d Hole (in) | 1.2598 |
| C (in) | 0.1575 |
| H (in) | 2.205 |
| h (in) | 1.575 |
| M1 Front Mounting Bolt Thread (in) | 5/16"-18 |
| M1 Front Mounting Bolt Qty | 3 |
| M Back Mounting Bolt Thread (mm) | M8x1.25 |
| M Back Mounting Bolt Qty | 3 |
Crossover to Other Brands
| Bison | 7-814-0500 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (Set) | TJ-PS4-125 |
| Hard Master Jaws (Set) | MJ-PS4-125 |
| Soft Top Jaws (Set) | STJ-PS1-125 |
| Spare Parts | |
| Chuck Wrench (1Pc) | W-P-125 |
| Scroll (1Pc) | SC-PS-125 |
| Pinion (1Pc) | PI-PS-125 |
| Pinion Screw (1Pc) | PH-P-125 |
| Chuck Mounting Bolts G (1Pc) | MB-FS-125 |
| Chuck Mounting Bolts M (1Pc) | MB-BS-125 |
| Base Plates | |
| Base Plates Optional (1Pc) | F-BPD-125 |
