Product Information

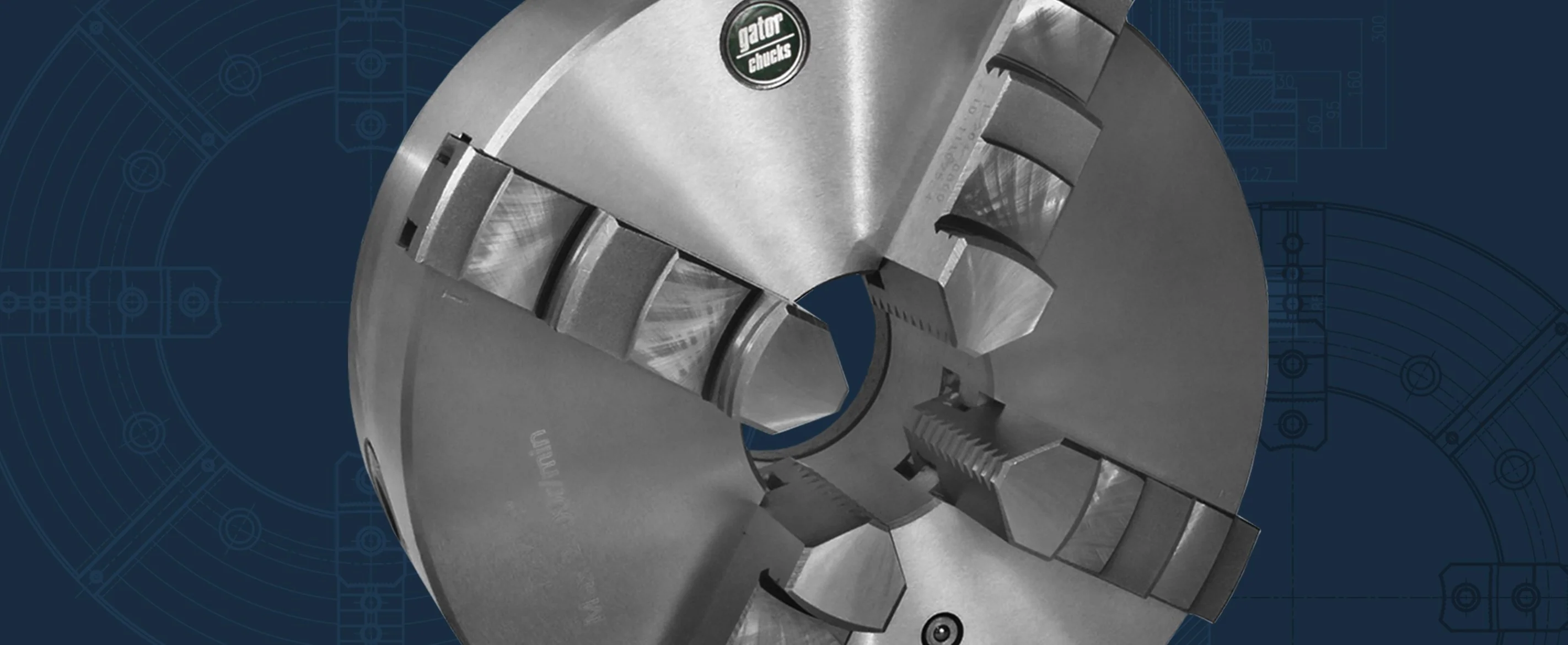

Title	4-Jaw Scroll Chuck, 8" Cast-Iron Body, Plain Back, Hard Solid Jaws
Chuck Type	Scroll Self-Centering
Chuck Mount	Plain Back
Spindle Type	Requires Adapter
Chuck Dia (in)	8"
Thru-Hole (in)	2.1654
Gripping Range Min-Max (in)	0.16 - 7.87
Chuck T.I.R (in)	0.0016
Max RPM	2500
Material	Cast Iron
Jaws	4
Jaw Type	Hard Solid
Weight Gross (lbs)	36.6
Includes	1 Set of Hard Solid ID & OD Jaws, Adapter Mounting Bolts,Chuck Wrench, Hex Keys

Product Dimensions

D (in)	8
F (in)	6.9291
E (H7) (in)	6.2992
d Hole (in)	2.1654
C (in)	.1575
H  (in)	2.953
h1 (in)	1.142
M Mounting Bolt Thread (mm)	M10x1.5
M Mounting Bolt Length (in)	0.98
Mounting Bolt Qty	6

Crossover to Other Brands

Bison

7-845-0800

Accessories

Jaws
ID Hard Solid Jaws (set)	OJ-PS3-200
OD Hard Solid Jaws (set)	IJ-PS3-200
Soft Solid Jaws (set)	SJ-PS3-200
Spare Parts
Chuck Wrench (1 pc)	W-P-200
Scroll (1 pc)	SC-PS-200
Pinion (1 pc)	PI-PS-200
Pinion Screw (1 pc)	PH-P-200
Chuck Mounting Bolts (1 pc)	MB-BS-200
Adapters
FM Machined Adapters A4	FM-200A4
FM Machined Adapters A5	FM-200A5
FM Machined Adapters A6	FM-200A6
FM Machined Adapters D4	FM-200D4
FM Machined Adapters D5	FM-200D5
FM Machined Adapters D6	FM-200D6
FM Machined Adapters L00	FM-200L00
FM Machined Adapters L0	FM-200L0
FM Machined Adapters L1	FM-200L1
SM Semi-Finished Adapters A4	SM-200A4
SM Semi-Finished Adapters A5	SM-200A5
SM Semi-Finished Adapters A6	SM-200A6
SM Semi-Finished Adapters D1-4	SM-200D4
SM Semi-Finished Adapters D1-5	SM-200D5
SM Semi-Finished Adapters D1-6	SM-200D6
SM Semi-Finished Adapters L00	SM-200L00
SM Semi-Finished Adapters L0	SM-200L0
SM Semi-Finished Adapters L1	SM-200L1
SM Semi-Finished Adapters 1-1/2-8UN-2B (T2)	SM-200T2
SM Semi-Finished Adapters 2-1/4-8UN-2B (T5)	SM-200T6
SM Semi-Finished Adapters 2-3/8-6UN-2B (T6)	SM-200T6
