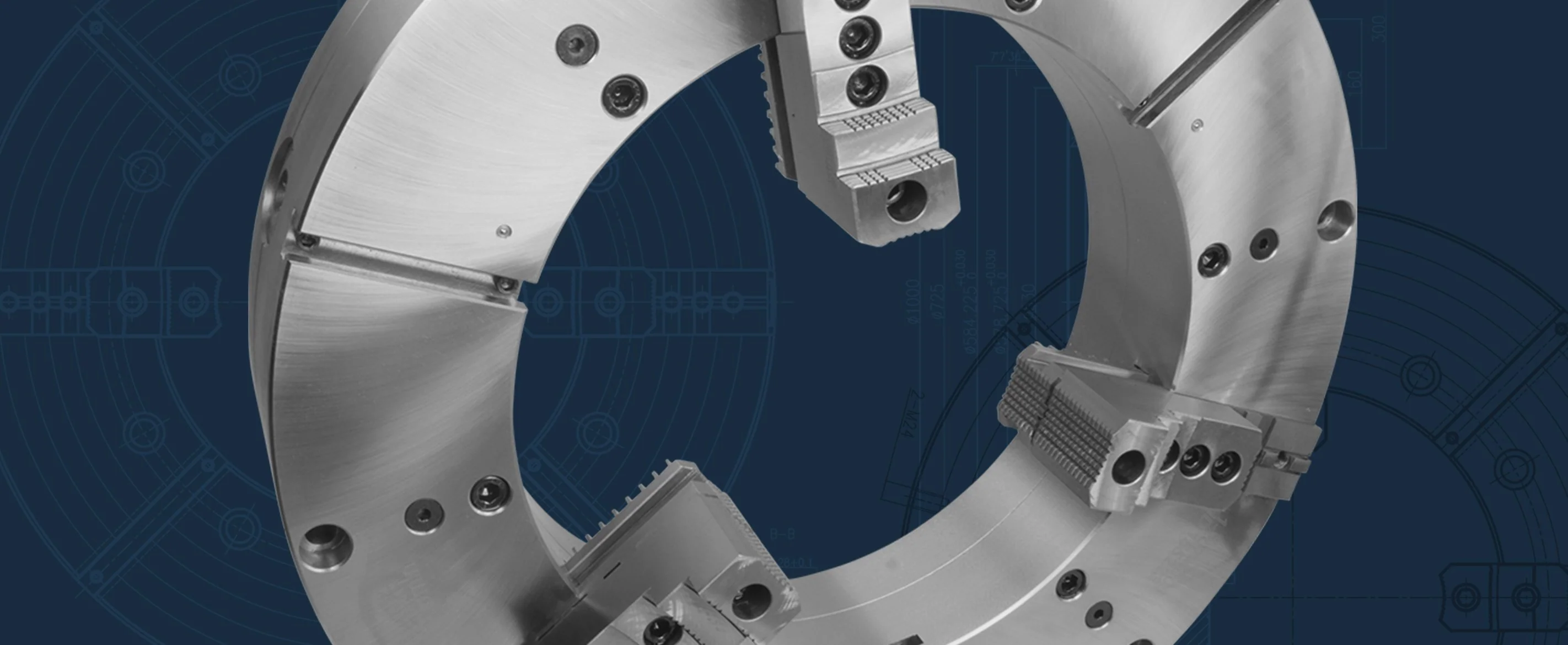

3-Jaw Scroll Chuck, 40" Steel Body, Large Thru-Hole, Front Mount, 2 PC Hard Rev. Jaws
Product Information
| Chuck Type | Scroll Self-Centering |
| Chuck Mount | Front Mount* |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 40 |
| Thru-Hole (in) | 24.61 |
| Gripping Range Min-Max (in) | 8.86 - 45.00 |
| Chuck T.I.R (in) | 0.0071 |
| Max RPM | 200 |
| Material | Forged Steel |
| Number of Jaws | 3 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 1590 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
*Front & Back mount available on special order ONLY
Product Dimensions
| D (in) | 40" |
| F (in) | 37.400 |
| E (H7) (in) | 35827 |
| d Hole (in) | 24.61 |
| C (in) | 0.3937 |
| H (in) | 7.48 |
| h (in) | 4.5669 |
| Jaw Stroke Min (in) | 8.858 |
| Jaw Stroke Max (in) | 39.37 |
| M1 Mounting Bolt Thread (mm) | M24 |
| M1 Mounting Bolt Length (in) | 7.87 |
| M1 Mounting Bolt Qty | 6 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (Set) | TJ-PS3-1000 |
| Hard Master Jaws (Set) | MJ-PSL-1000 |
| Soft Top Jaws (Set) | STJ-PS1-1000 |
| Spare Parts | |
| Chuck Wrench (1Pc) | W-PL-1000 |
| Scroll (1Pc) | SC-PL-1000 |
| Pinion (1Pc) | PI-PL-1000 |
| Pinion Sleeve (1Pc) | PS-P-1000 |
| Half Ring (1Pc) | HR-P-1000 |
| Chuck Mounting Bolts (1Pc) | MB-PL-1000 |
