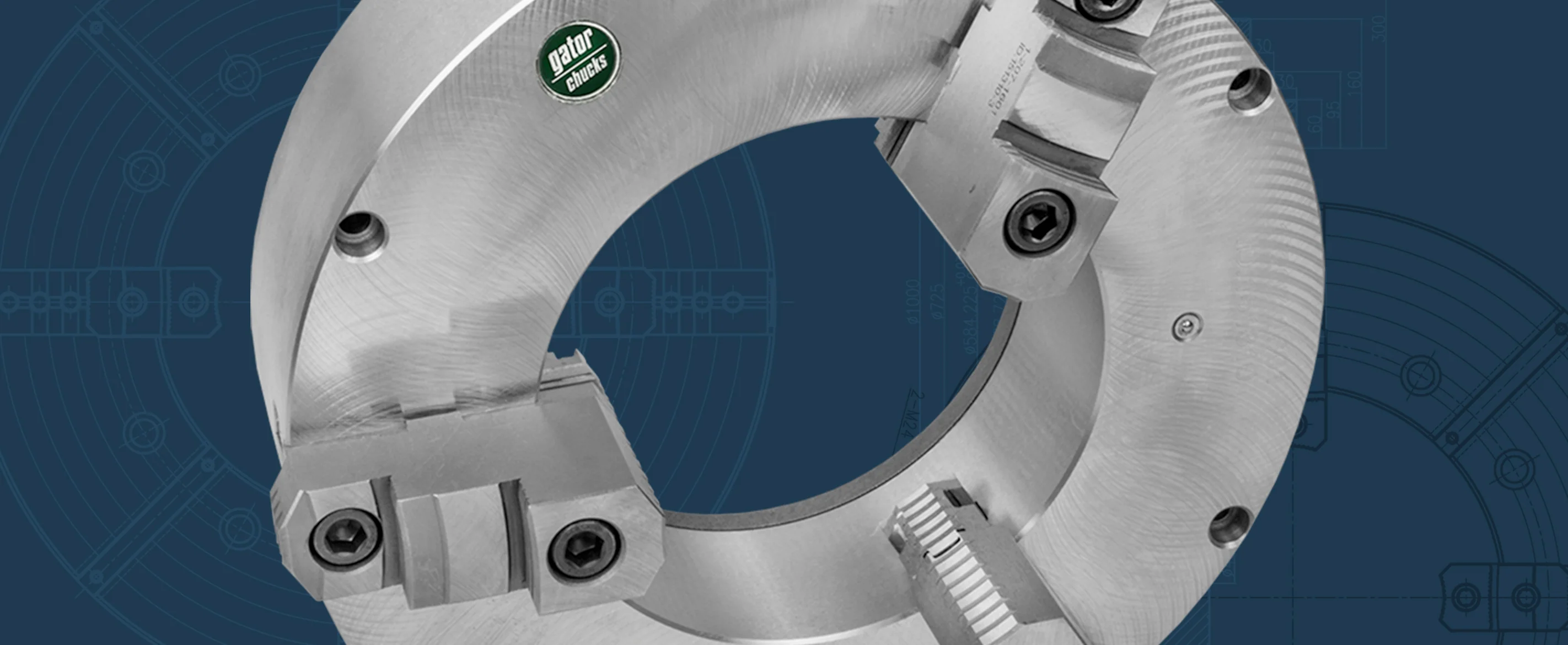

3-Jaw Scroll Chuck, 16" Steel Body, Large Thru-Hole, Front & Back Mount, 2 PC Hard Rev. Jaws
Product Information
| Part Number | 1-207-1601 |
| Chuck Type | Scroll Self-Centering |
| Chuck Mount | Front & Back Mount |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 15-3/4 |
| Thru-Hole (in) | 8.66 |
| Gripping Range Min-Max (in) | 5.12 - 15.75 |
| Chuck T.I.R (in) | 0.0024 |
| Max RPM | 500 |
| Material | Forged Steel |
| Number of Jaws | 3 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 160 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Chuck Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 15-3/4" |
| F (in) | 15.000 |
| E (H7) (in) | 14.256 |
| d Hole (in) | 8.66 |
| C (in) | 0.3150 |
| H (in) | 4.13 |
| h (in) | 2.9724 |
| Jaw Stroke Min (in) | 6.614 |
| Jaw Stroke Max (in) | 11.34 |
| M Mounting Bolt Thread (mm) | M12 |
| M Mounting Bolt Length (in) | 1.38 |
| Mounting Bolt Qty | 6 |
| M1 Front Mounting Bolt Thread (mm) | M12 |
| M1 Front Mounting Bolt Length (in) | 4.33 |
| M1 Front Mounting Bolt Qty | 6 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (Set) | TJ-PS3-400 |
| Hard Master Jaws (Set) | MJ-PSL-400 |
| Soft Top Jaws (Set) | STJ-PS1-400 |
| Spare Parts | |
| Chuck Wrench (1Pc) | W-PL-400 |
| Scroll (1Pc) | SC-PL-400 |
| Pinion (1Pc) | PI-PL-400 |
| Pinion Screw (1Pc) | PH-L-508 |
| Chuck Front Mounting Bolts (1Pc) | MB-FPL-400 |
| Chuck Back Mounting Bolts (1Pc) | MB-PL-400 |
| Base Plates | |
| Base Plates Optional (1Pc) | F-BPL-400 |
