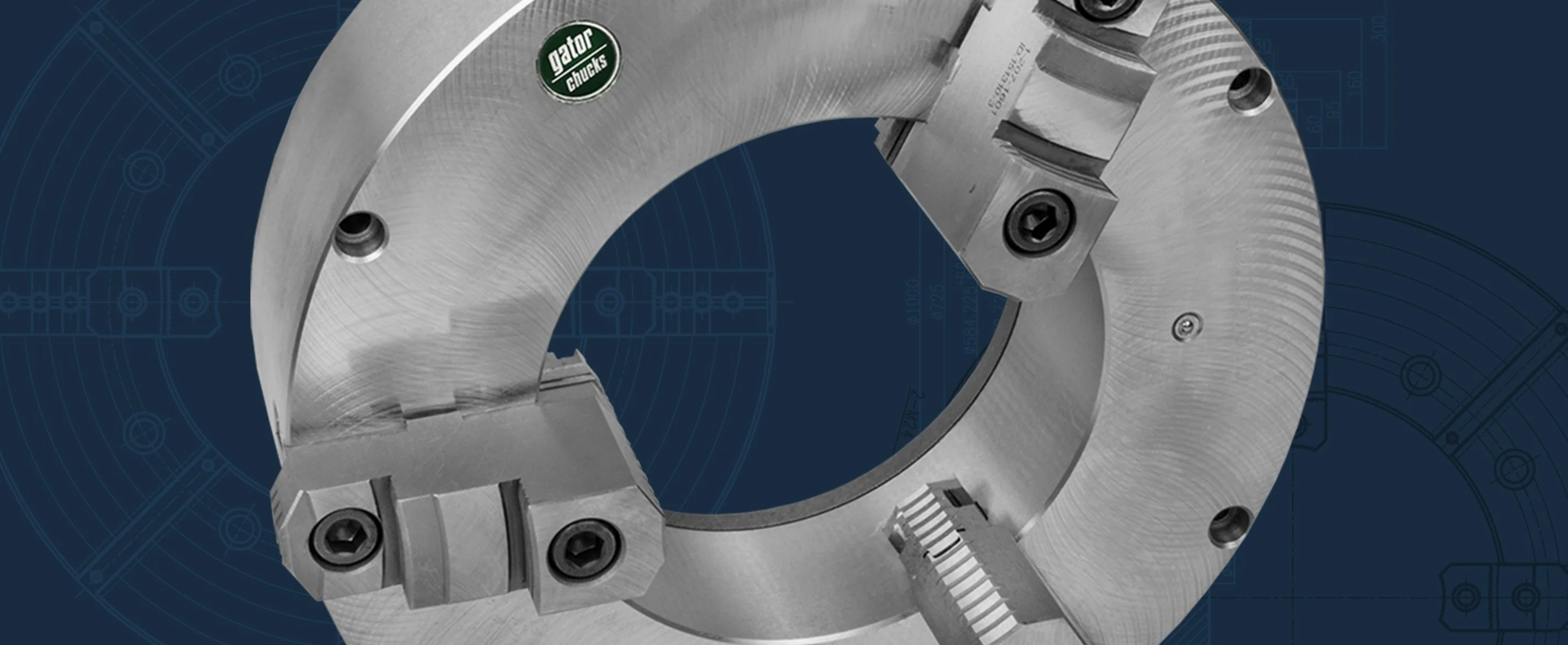

3-Jaw Scroll Chuck, 26" Steel Body, Large Thru-Hole, Front & Back Mount, 2 PC Hard Rev. Jaws
Product Information
| Chuck Type | Scroll Self-Centering |
| Chuck Mount | Front & Back Mount |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 26 |
| Thru-Hole (in) | 15.98 |
| Gripping Range Min-Max (in) | 14.18 - 25.00 |
| Chuck T.I.R (in) | 0.004 |
| Max RPM | 250 |
| Material | Forged Steel |
| Number of Jaws | 3 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 477 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 26" |
| F (in) | 24.409 |
| E (H7) (in) | 22.835 |
| d Hole (in) | 15.98 |
| C (in) | 0.5512 |
| H (in) | 5.32 |
| h (in) | 3.4763 |
| Jaw Stroke Min (in) | 14.80 |
| Jaw Stroke Max (in) | 19.57 |
| M Mounting Bolt Thread (mm) | M16 |
| M Mounting Bolt Length (in) | 1.97 |
| Mounting Bolt Qty | 6 |
| M1 Front Mounting Bolt Thread (mm) | M16 |
| M1 Front Mounting Bolt Length (in) | 5.9 |
| M1 Front Mounting Bolt Qty | 6 |
Crossover to Other Brands
| Bison | 7-819-2600 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (Set) | TJ-PS3-630 |
| Hard Master Jaws (Set) | MJ-PSL-660 |
| Soft Top Jaws (Set) | STJ-PS1-630 |
| Spare Parts | |
| Chuck Wrench (1Pc) | W-PL-660 |
| Scroll (1Pc) | SC-PL-660 |
| Pinion (1Pc) | PI-PL-660 |
| Pinion Screw (1Pc) | PH-L-508 |
| Chuck Front Mounting Bolts (1Pc) | MB-FPL-660 |
| Chuck Back Mounting Bolts (1Pc) | MB-PL-660 |
