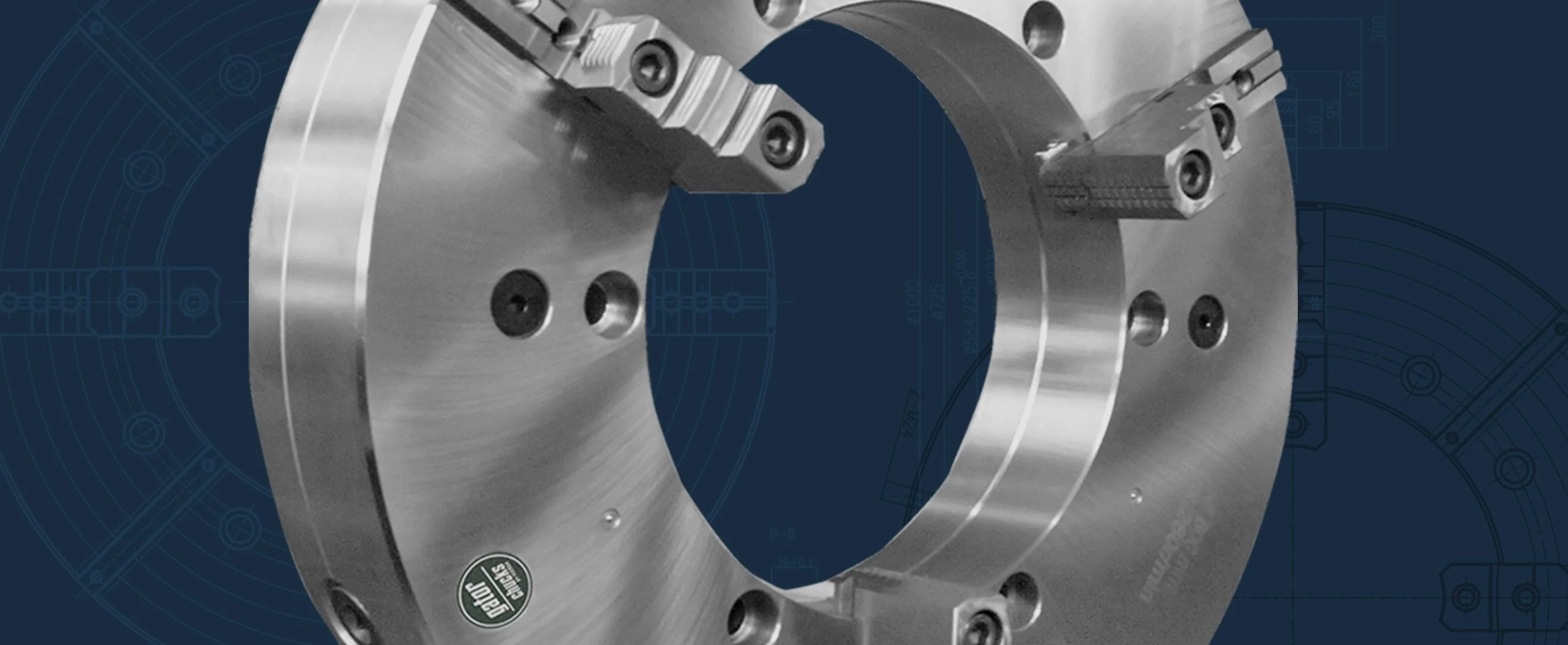

3-Jaw Scroll Chuck, 32" Steel Body, Large Thru-Hole, Front Mount, 2 PC Hard Rev. Jaws
Product Information
| Chuck Type | Scroll Self-Centering |
| Chuck Mount | Front Mount |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 31-1/2 |
| Thru-Hole (in) | 16.14 |
| Gripping Range Min-Max (in) | 10.24 - 31.50 |
| Chuck T.I.R (in) | 0.0059 |
| Max RPM | 200 |
| Material | Forged Steel |
| Number of Jaws | 3 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 1041 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 31-1/2" |
| F (in) | 18.110 |
| E (H7) (in) | 27.953 |
| d Hole (in) | 16.14 |
| C (in) | 0.3937 |
| H (in) | 5.866 |
| h (in) | 3.6417 |
| Jaw Stroke Min (in) | 7.402 |
| Jaw Stroke Max (in) | 22.28 |
| M Front Mounting Bolt Thread (mm) | M24 |
| M Front Mounting Bolt Length (in) | 6.30 |
| M Front Mounting Bolt Qty | 6 |
Crossover to Other Brands
| Bison | 7-819-3200 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (Set) | TJ-PS3-630 |
| Hard Master Jaws (Set) | MJ-PSL-800 |
| Soft Top Jaws (Set) | STJ-PS1-630 |
| Spare Parts | |
| Chuck Wrench (1Pc) | W-PL-800 |
| Scroll (1Pc) | SC-PL-800 |
| Pinion (1Pc) | PI-PL-800 |
| Pinion Sleeve (1Pc) | PS-P-800 |
| Half Ring (1Pc) | HR-P-800 |
| Chuck Front Mounting Bolts (1Pc) | MB-PL-800 |
