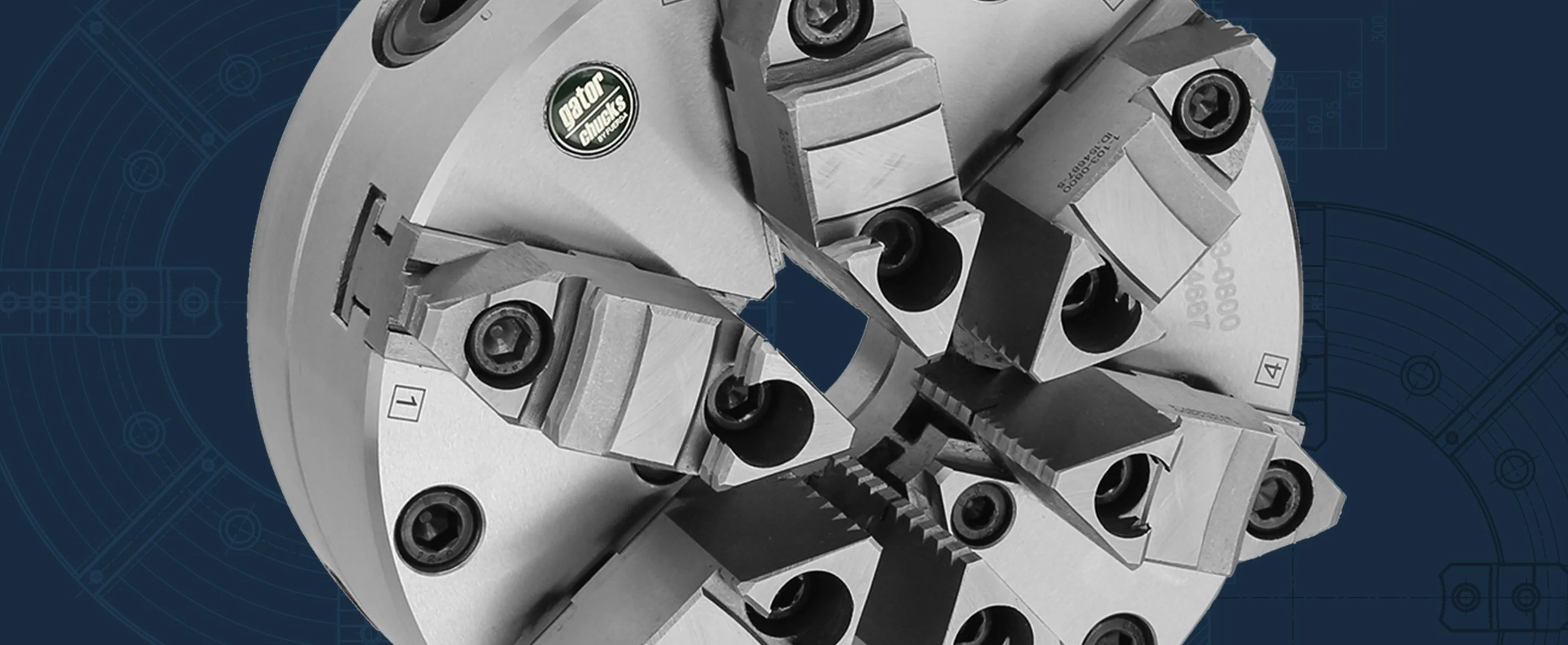

6-Jaw Adjustable Scroll Chuck 6" Cast-Iron Body, 2 PC Hard Rev. Jaws
Product Information
| Chuck Type | Scroll-Adjustable |
| Chuck Mount | Adjustable |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 6 |
| Thru-Hole (in) | 1.654 |
| Gripping Range Min-Max (in) | .315 - 6.30 |
| Chuck T.I.R (in) | 0.0004 |
| Max RPM | 2500 |
| Material | Semi-Steel |
| Jaws | 6 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 23.15 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Fine Adjustment Screws, Chuck Wrench, Hex Keys |
Product Dimensions
| D (in) | 6 |
| C (in) | 0.67 |
| d Hole Max (in) | 1.654 |
| E (in) | 3.3858 |
| H (in) | 2.677 |
| F (in) | 5.5118 |
| h Jaw Height (in) | 1.71 |
| M Mounting Bolt Thread | M10x1.5 x 3 |
| Mounting Bolt Qty | 3 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (set) | TJ-PS6-160 |
| Hard Master Jaws (set) | MJ-PS6-160 |
| Soft Top Jaws (set) | STJ-PS6-160 |
| Spare Parts | |
| Chuck Wrench (1 pc) | W-P-200 |
| Scroll (1 pc) | SC-PS-160 |
| Pinion (1 pc) | PI-PO-160 |
| Pinion Sleeve (1 pc) | PS-P-160 |
| Half Ring (1 pc) | HR-P-160 |
| Fine Adjustment Screws (1 pc) | FS-PB-160 |
| Chuck Mounting Bolts (1 pc) | MB-PA-160 |
| Adapters | |
| Adapter Adjustable A5 | FLA-160A5 |
| Adapters Adjustable A6 | FLA-160A6 |
| Adapter Adjustable D3 | FLA-160D3 |
| Adapter Adjustable D4 | FLA-160D4 |
| Adapter Adjustable D5 | FLA-160D5 |
| Adapter Adjustable 1-1/2"-8UN-2B | FLA-160T2 |
| Adapter Adjustable 2-3/16"-10 | FLA-160T4 |
| Adapter Adjustable 2-1/4"-8UN-2B | FLA-160T5 |
| Adapter Adjustable L00 | FLA-160L00 |
| Adapter Adjustable L0 | FLA-160L0 |
| Baseplates | |
| Base Plates | F-BPA-160 |
| Base Plates | F-BPA-160H16 |
