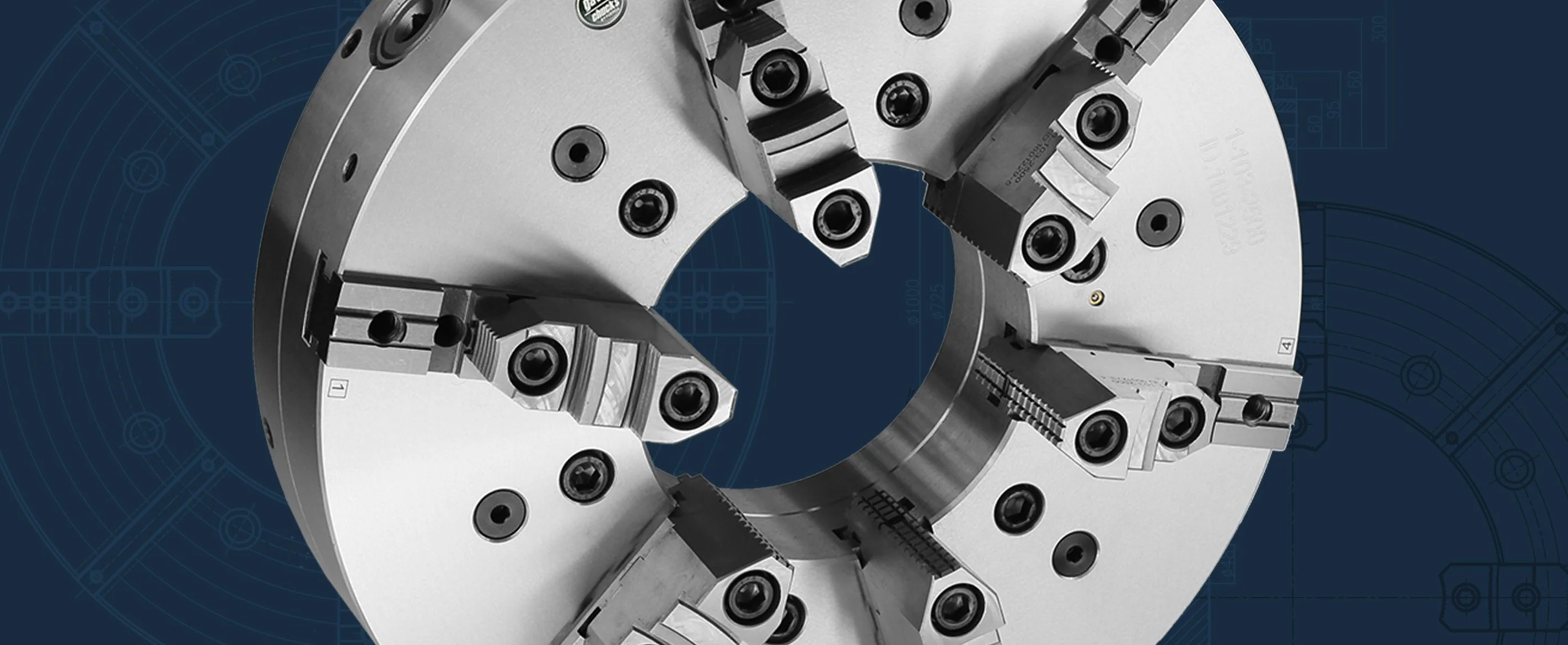

6-Jaw Adjustable Scroll Chuck 16" Cast-Iron Body, 2 PC Hard Rev. Jaws
Product Information
| Chuck Type | Scroll-Adjustable |
| Chuck Mount | Adjustable |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 16 |
| Thru-Hole (in) | 5.354 |
| Gripping Range Min-Max (in) | .59 -15.75 |
| Chuck T.I.R (in) | 0.0004 |
| Max RPM | 700 |
| Material | Semi-Steel |
| Jaws | 6 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 242.95 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Fine Adjustment Screws, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 16 |
| A1 (in) | 11.748 |
| A (in) | 11.782 |
| C (in) | 0.87 |
| d Hole Max (in) | 5.354 |
| H (in) | 4.803 |
| F (in) | 6.7500 |
| h Jaw Height (in) | 2.638 |
| M Mounting Bolt Thread | 5/8"x11 x 6 |
| Mounting Bolt Qty | 6 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (set) | TJ-PS6-400 |
| Hard Master Jaws (set) | MJ-PS6-400 |
| Soft Top Jaws (set) | STJ-PS6-400 |
| Spare Parts | |
| Chuck Wrench (1 pc) | W-P-400 |
| Scroll (1 pc) | SC-PS-400 |
| Pinion (1 pc) | PI-PO-400 |
| Pinion Sleeve (1 pc) | PS-P-400 |
| Half Ring (1 pc) | HR-P-400 |
| Fine Adjustment Screws (1 pc) | FS-PB-400 |
| Chuck Mounting Bolts (1 pc) | MB-PA-400 |
| Adapters | |
| Adapters Adjustable A6 | FLA-400A6 |
| Adapter Adjustable A8 | FLA-400A8 |
| Adapter Adjustable A11 | FLA-400A11 |
| Adapter Adjustable D6 | FLA-400D6 |
| Adapter Adjustable D8 | FLA-400D8 |
| Adapter Adjustable D11 | FLA-400D11 |
| Adapter Adjustable L1 | FLA-400L1 |
| Adapter Adjustable L2 | FLA-400L2 |
| Adapter Adjustable L3 | FLA-400L3 |
| Baseplates | |
| Base Plates | F-BPA-400 |
| Base Plates | F-BPA-400H45 |
