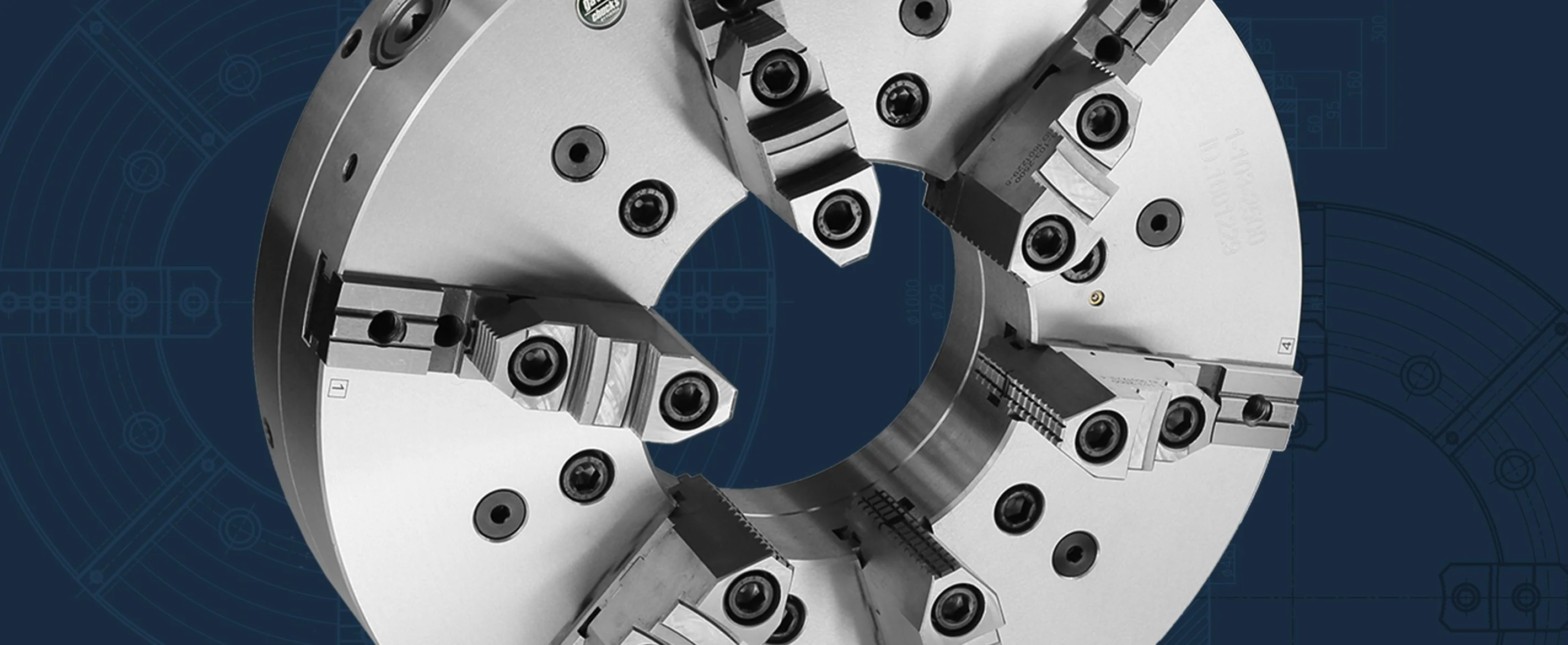

6-Jaw Adjustable Scroll Chuck 20" Cast-Iron Body, 2 PC Hard Rev. Jaws
Product Information
| Chuck Type | Scroll-Adjustable |
| Chuck Mount | Adjustable |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 20 |
| Thru-Hole (in) | 7.480 |
| Gripping Range Min-Max (in) | 1.18 - 18.82 |
| Chuck T.I.R (in) | 0.0004 |
| Max RPM | 400 |
| Material | Semi-Steel |
| Jaws | 6 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 351.64 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Fine Adjustment Screws, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 20 |
| A1 (in) | 16.022 |
| A (in) | 16.032 |
| C (in) | 1.18 |
| d Hole Max (in) | 7.480 |
| H (in) | 5.669 |
| F (in) | 9.2520 |
| h Jaw Height (in) | 3.11 |
| M Mounting Bolt Thread | 3/4"x10 x 6 |
| Mounting Bolt Qty | 6 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (set) | TJ-PS6-500 |
| Hard Master Jaws (set) | MJ-PS6-500 |
| Soft Top Jaws (set) | STJ-PS6-500 |
| Spare Parts | |
| Chuck Wrench (1 pc) | W-P-630 |
| Scroll (1 pc) | SC-PS-500 |
| Pinion (1 pc) | PI-PO-500 |
| Pinion Sleeve (1 pc) | PS-P-500 |
| Half Ring (1 pc) | HR-P-500 |
| Fine Adjustment Screws (1 pc) | FS-PB-500 |
| Chuck Mounting Bolts (1 pc) | MB-PA-500 |
| Adapters | |
| Adapter Adjustable A8 | FLA-500A8 |
| Adapter Adjustable A11 | FLA-500A11 |
| Adapter Adjustable D8 | FLA-500D8 |
| Adapter Adjustable D11 | FLA-500D11 |
| Adapter Adjustable L2 | FLA-500L2 |
| Baseplates | |
| Base Plates | F-BPA-500 |
| Base Plates | F-BPA-500H60 |
