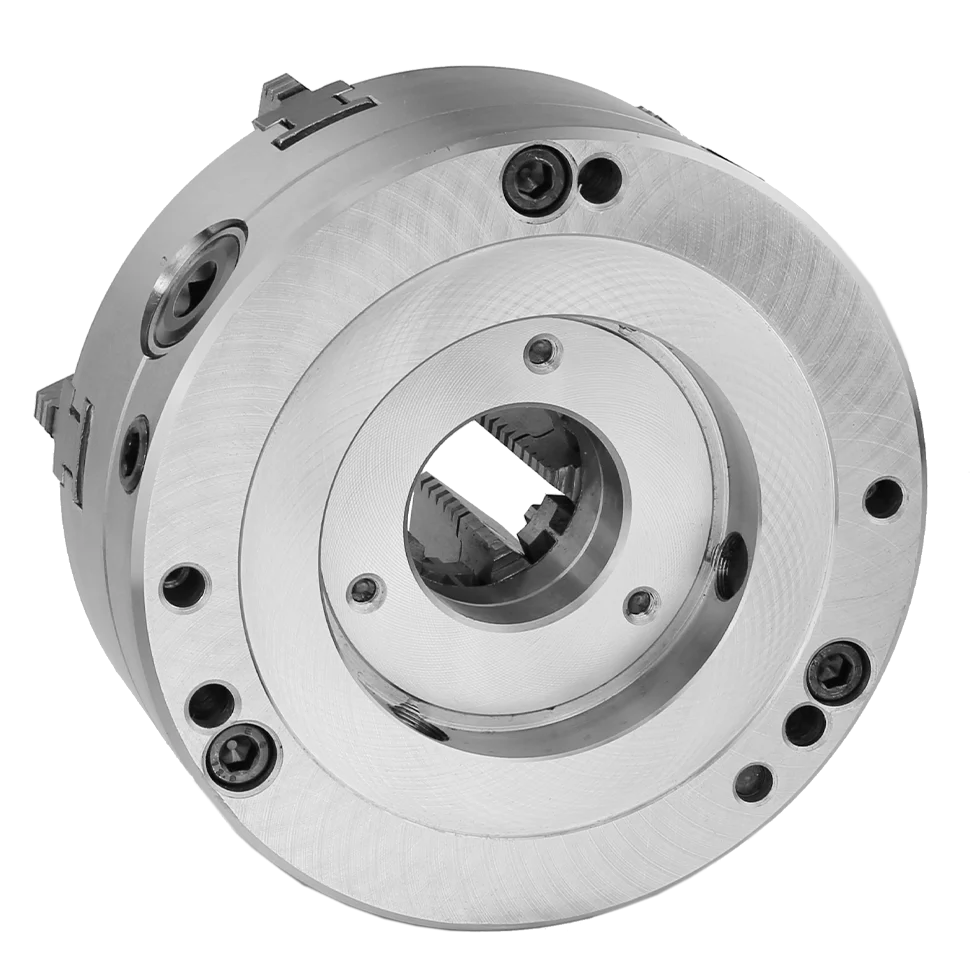

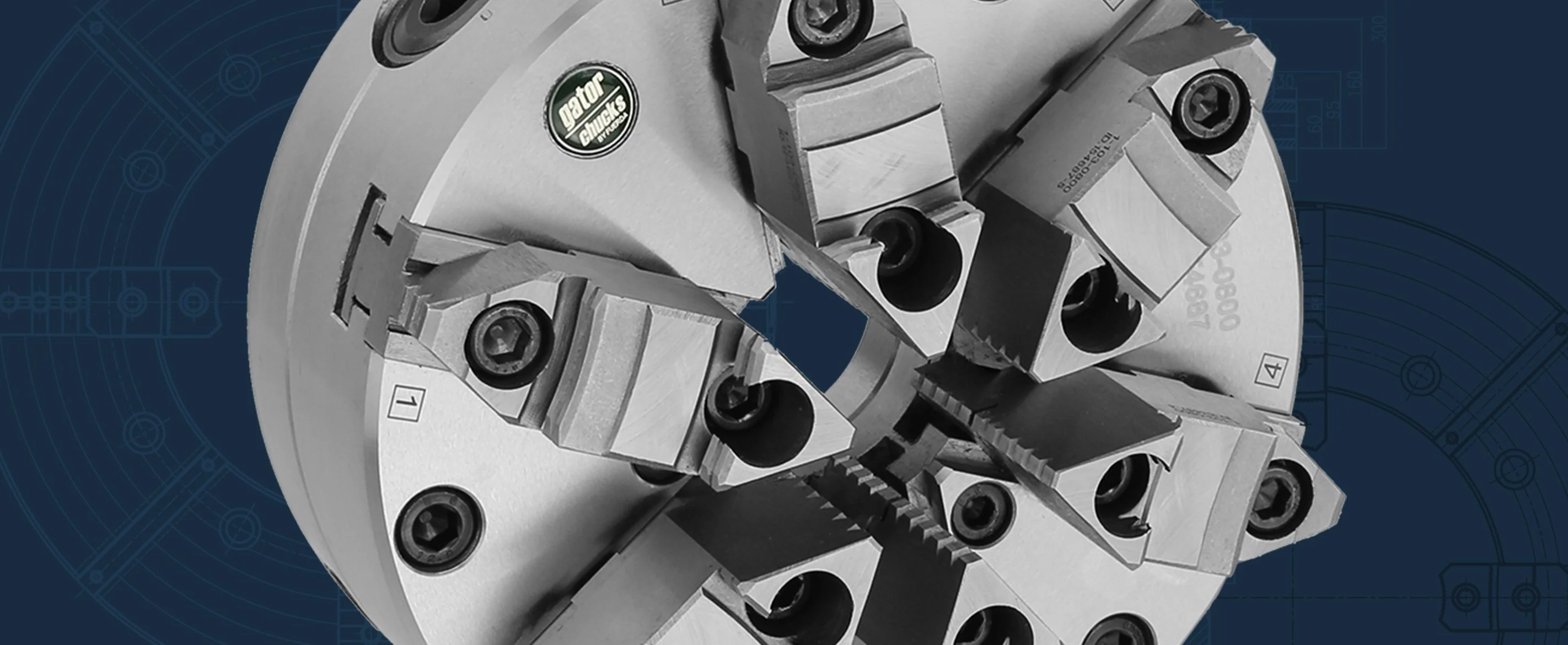

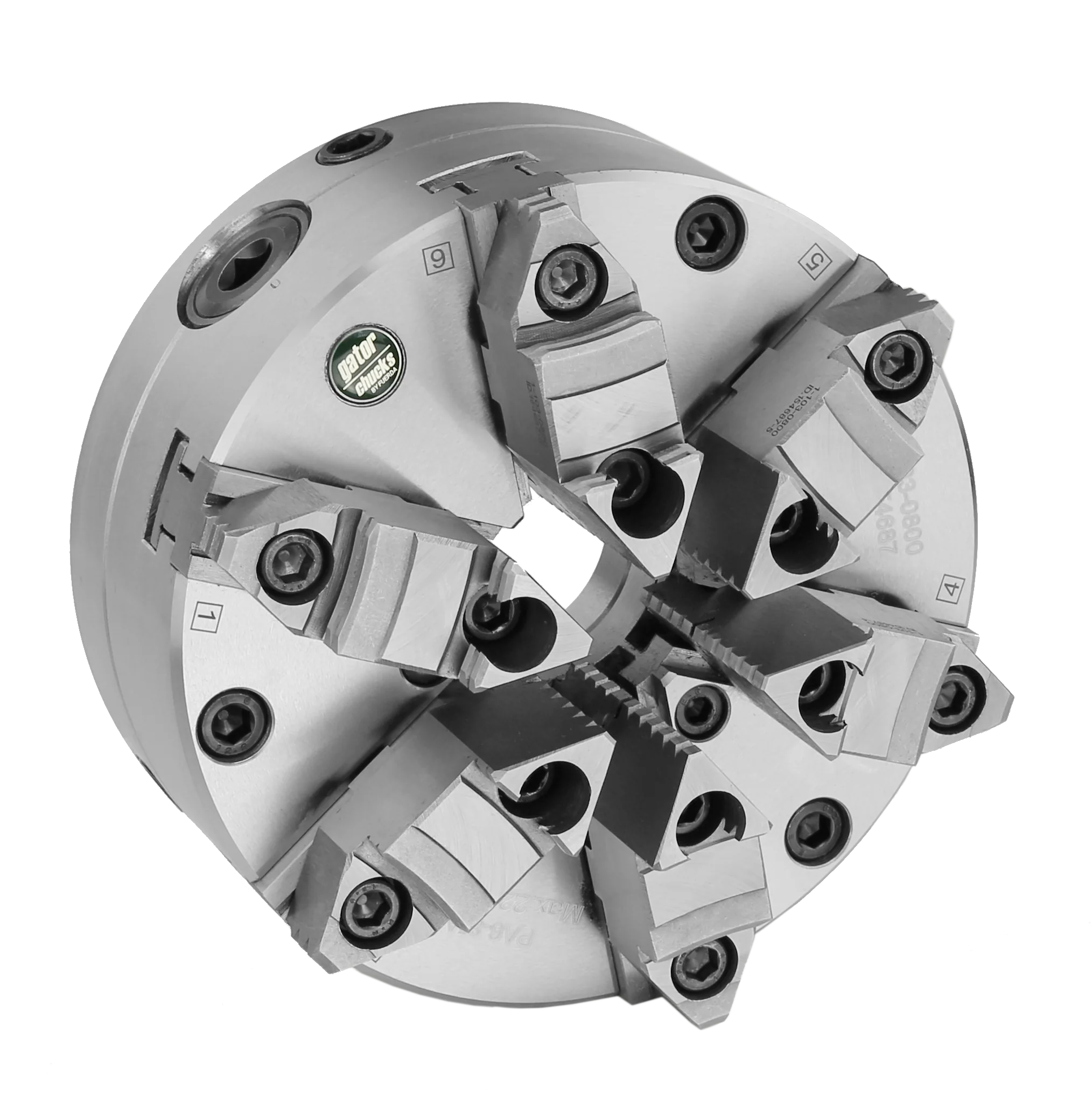

6-Jaw Adjustable Scroll Chuck, 5" Steel Body, 2 PC Hard Rev. Jaws
Product Information
| Part Number | 1-103-0500 |
| Chuck Type | Scroll-Adjustable |
| Chuck Mount | Adjustable |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 5 |
| Thru-Hole (in) | 1.378 |
| Gripping Range Min-Max (in) | .236 - 4.72 |
| Chuck T.I.R (in) | 0.0004 |
| Max RPM | 3000 |
| Material | Forged Steel |
| Jaws | 6 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 15.21 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Fine Adjustment Screws, Chuck Wrench, Hex Keys |
Product Dimensions
| D (in) | 5 |
| C (in) | 0.59 |
| d Hole Max (in) | 1.378 |
| E (in) | 2.1654 |
| H (in) | 2.362 |
| F (in) | 4.2520 |
| h Jaw Height (in) | 1.575 |
| M Mounting Bolt Thread | M8x1.25 |
| Mounting Bolt Qty | 3 |
Crossover to Other Brands
| Bison | 7-868-0500 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (set) | TJ-PS6-125 |
| Hard Master Jaws (set) | MJ-PS6-125 |
| Soft Top Jaws (set) | STJ-PS6-125 |
| Spare Parts | |
| Chuck Wrench (1 pc) | W-P-125 |
| Scroll (1 pc) | SC-PS-125 |
| Pinion (1 pc) | PI-PO-125 |
| Pinion Sleeve (1 pc) | PS-P-125 |
| Half Ring (1 pc) | HR-P-125 |
| Fine Adjustment Screws (1 pc) | FS-P-125 |
| Chuck Mounting Bolts (1 pc) | MB-BA-125 |
| Adapters | |
| Adapter Adjustable A4 | FLA-125A4 |
| Adapter Adjustable A5 | FLA-125A5 |
| Adapter Adjustable A6 | FLA-125A6 |
| Adapters Adjustable D3 | FLA-125D3 |
| Adapters Adjustable D4 | FLA-125D4 |
| Adapters Adjustable D5 | FLA-125D5 |
| Adapters Adjustable 1-1/2"-8UN-2B | FLA-125T2 |
| Adapters Adjustable 1-1/8"-12W | FLA-125T3 |
| Adapters Adjustable 2-3/16"-10 | FLA-125T4 |
| Adapters Adjustable 2-1/4"-8UN-2B | FLA-125T5 |
| Base Plates | |
| Baseplates | F-BPA-125 |
| Baseplates (Haas) | F-BPA-125H16 |
