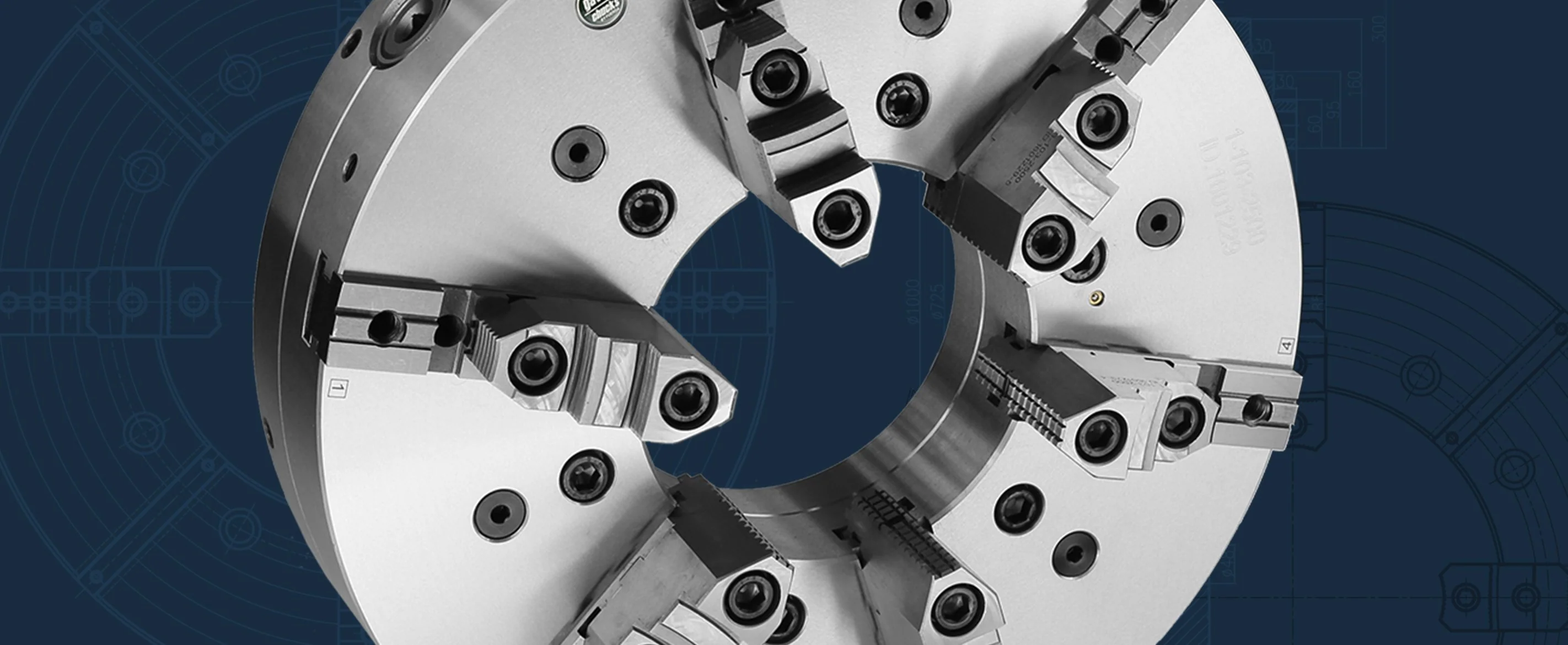

6-Jaw Adjustable Scroll Chuck, 25" Steel Body, 2 PC Hard Rev. Jaws
Product Information
| Part Number | 1-103-2500 |
| Chuck Type | Scroll-Adjustable |
| Chuck Mount | Adjustable |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 25 |
| Thru-Hole (in) | 9.921 |
| Gripping Range Min-Max (in) | 1.57 - 24.80 |
| Chuck T.I.R (in) | 0.0004 |
| Max RPM | 700 |
| Material | Forged Steel |
| Jaws | 6 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 692.25 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Fine Adjustment Screws, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 25 |
| A1 (in) | 16.022 |
| A (in) | 16.032 |
| C (in) | 1.18 |
| d Hole Max (in) | 9.921 |
| H (in) | 5.905 |
| F (in) | 13.0000 |
| h Jaw Height (in) | 3.425 |
| M Mounting Bolt Thread | 3/4"x10 |
| Mounting Bolt Qty | 6 |
Crossover to Other Brands
| Bison | 7-868-2500 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (set) | TJ-PS-630 |
| Hard Master Jaws (set) | MJ-PS6-630 |
| Soft Top Jaws (set) | STJ-PS6-630 |
| Spare Parts | |
| Chuck Wrench (1 pc) | W-P-630 |
| Scroll (1 pc) | SC-PS-630 |
| Pinion (1 pc) | PI-PO-630 |
| Pinion Sleeve (1 pc) | PS-P-630 |
| Half Ring (1 pc) | HR-P-630 |
| Fine Adjustment Screws (1 pc) | FS-P-630 |
| Chuck Mounting Bolts (1 pc) | MB-PA-630 |
| Adapters | |
| Adapter Adjustable A8 | FLA-630A8 |
| Adapter Adjustable A11 | FLA-630A11 |
| Adapter Adjustable A15 | FLA-630A15 |
| Adapters Adjustable D8 | FLA-630D8 |
| Adapters Adjustable D11 | FLA-630D11 |
| Adapters Adjustable D15 | FLA-630D15 |
