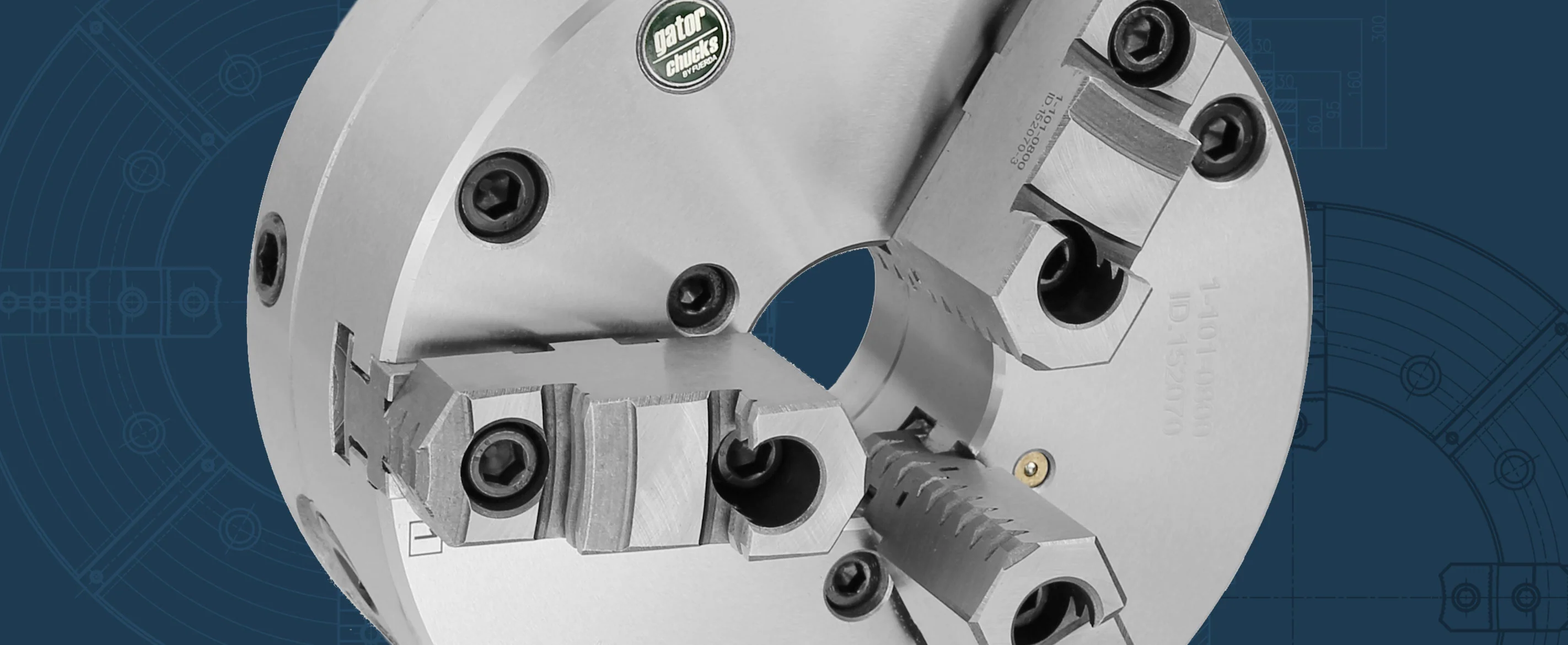

Product Information

Part Number	1-101-0800
Chuck Type	Scroll-Adjustable
Chuck Mount	Adjustable
Spindle Type	Requires Adapter
Chuck Dia (in)	8
Thru-Hole (in)	2.17
Gripping Range Min-Max (in)	0.175 - 7.87
Chuck T.I.R (in)	0.0004
Max RPM	3,100
Material	Forged Steel
Jaws	3
Jaw Type	2 PC Hard  Reversible
Weight Gross (lbs)	38
Includes	1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Fine Adjustment Screws, Chuck Wrench, Hex Keys

Product Dimensions

D (in)	8
C  (in)	0.71
d Hole Max (in)	2.165
E  (in)	4.3307
H  (in)	3.071
F  (in)	6.9291
h Jaw Height (in)	1.77
M Mounting Bolt Thread	M10x1.5
Mounting Bolt Qty	3

Crossover to Other Brands

Bison

7-866-0800

Accessories

Jaws
Hard Top Jaws (set)	TJ-PS3-200
Hard Master Jaws (set)	MJ-PS3-200
Soft Top Jaws (set)	STJ-PS1-200
Spare Parts
Chuck Wrench (1 pc)	W-P-200
Scroll (1 pc)	SC-PS-200
Pinion (1 pc)	PI-PO-200
Pinion Sleeve (1 pc)	PS-P-200
Half Ring (1 pc)	HR-P-200
Fine Adjustment Screws (1 pc)	FS-P-200
Chuck Mounting Bolts (1 pc)	MB-PA-200
Adapters
Adapter Adjustable A4	FLA-200A4
Adapter Adjustable A5	FLA-200A5
Adapters Adjustable A6	FLA-200A6
Adapters Adjustable D4	FLA-200D4
Adapters Adjustable D5	FLA-200D5
Adapters Adjustable D6	FLA-200D6
Adapters Adjustable 1-1/2"-8UN-2B	FLA-200T2
Adapter Adjustable 2-3/16"-10	FLA-200T4
Adapters Adjustable 2-1/4"-8UN-2B	FLA-200T5
Adapters Adjustable L00	FLA-200L00
Adapters Adjustable L0	FLA-200L0
Adapters Adjustable L1	FLA-200L1
Base Plates
Baseplates	F-BPA-200
Baseplates (Haas)	F-BPA-200H21
