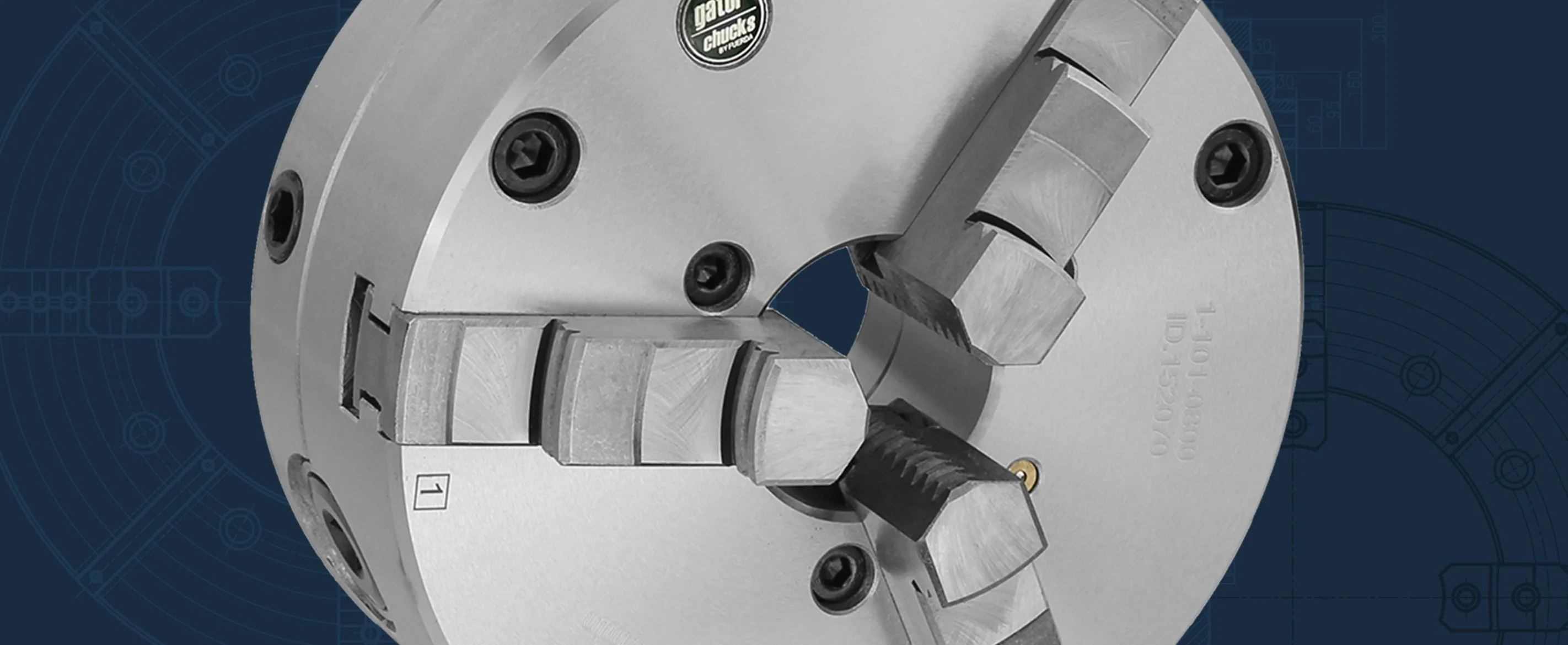

3-Jaw Adjustable Scroll Chuck, 10" Steel Body, Hard Solid Jaws
Product Information
| Part Number | 1-102-1000 |
| Chuck Type | Scroll-Adjustable |
| Chuck Mount | Adjustable |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 10 |
| Thru-Hole (in) | 2.992 |
| Gripping Range Min-Max (in) | .197 - 9.84 |
| Chuck T.I.R (in) | 0.0004 |
| Max RPM | 2700 |
| Material | Forged Steel |
| Jaws | 3 |
| Jaw Type | Hard Solid |
| Weight Gross (lbs) | 75.62 |
| Includes | 1 Set of Hard Solid ID & OD Jaws, Adapter Mounting Bolts, Fine Adjustment Screws, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 10 |
| C (in) | 0.79 |
| d Hole Max (in) | 2.992 |
| E (in) | 5.7086 |
| H (in) | 3.504 |
| F (in) | 8.8189 |
| h Jaw Height (in) | 1.339 |
| M Mounting Bolt Thread | M12x1.75 |
| Mounting Bolt Qty | 3 |
Crossover to Other Brands
| Bison | 7-866-8100 |
Accessories
| Jaws | |
|---|---|
| ID Hard Solid Jaws (set) | IJ-PS3-250 |
| OD Hard Solid Jaws (set) | OJ-PS3-250 |
| Soft Solid Jaws (set) | SJ-PS3-250 |
| Spare Parts | |
| Chuck Wrench (1 pc) | W-P-315 |
| Scroll (1 pc) | SC-PS-250 |
| Pinion (1 pc) | PI-PO-250 |
| Pinion Sleeve (1 pc) | PS-P-250 |
| Half Ring (1 pc) | HR-P-250 |
| Fine Adjustment Screws (1 pc) | FS-P-250 |
| Chuck Mounting Bolts (1 pc) | MB-PA-250 |
| Adapters | |
| Adapter Adjustable A5 | FLA-250A5 |
| Adapter Adjustable A6 | FLA-250A6 |
| Adapter Adjustable A8 | FLA-250A8 |
| Adapters Adjustable D5 | FLA-250D5 |
| Adapters Adjustable D6 | FLA-250D6 |
| Adapters Adjustable D8 | FLA-250D8 |
| Adapters Adjustable 2-3/8"-6 | FLA-250T6 |
| Adapters Adjustable L00 | FLA-250L00 |
| Adapters Adjustable L0 | FLA-250L0 |
| Adapters Adjustable L1 | FLA-250L1 |
| Base Plates | |
| Baseplates | F-BPA-250 |
| Baseplates (Haas) | F-BPA-250H21 |
| Baseplates (Haas) | F-BPA-250H31 |
