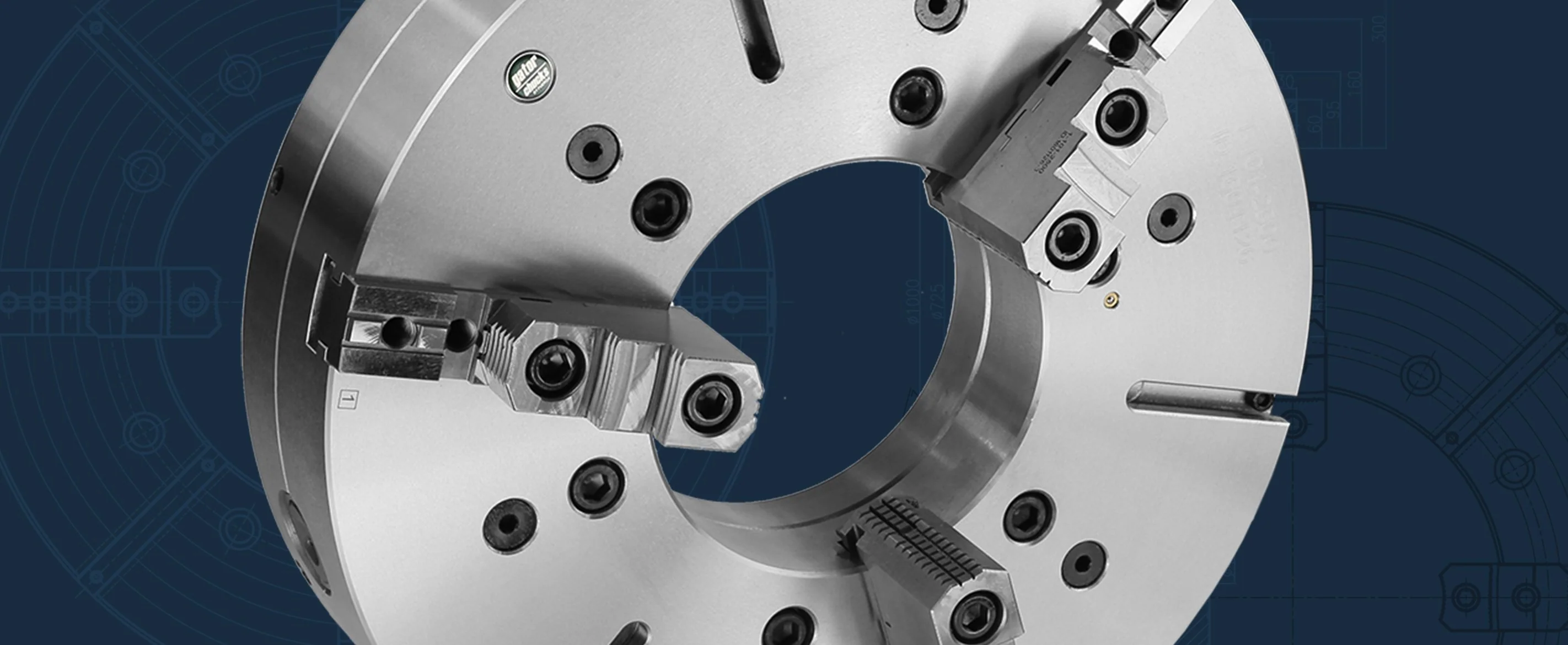

3-Jaw Adjustable Scroll Chuck, 20" Steel Body, 2 PC Hard Rev. Jaws
Product Information
| Part Number | 1-101-2000 |
| Chuck Type | Scroll-Adjustable |
| Chuck Mount | Adjustable |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 20 |
| Thru-Hole (in) | 7.48 |
| Gripping Range Min-Max (in) | 0.787 - 19.69 |
| Chuck T.I.R (in) | 0.0004 |
| Max RPM | 1,200 |
| Material | Forged Steel |
| Jaws | 3 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 399 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Fine Adjustment Screws, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 20 |
| A1 (in) | 16.022 |
| A (in) | 16.032 |
| C (in) | 1.18 |
| d Hole Max (in) | 7.480 |
| H (in) | 5.669 |
| F (in) | 9.2520 |
| h Jaw Height (in) | 3.11 |
| M Mounting Bolt Thread | 3/4"x10 |
Crossover to Other Brands
| Bison | 7-866-2000 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (set) | TJ-PS3-500 |
| Hard Master Jaws (set) | MJ-PS3-500 |
| Soft Top Jaws (set) | STJ-PS1-500 |
| Spare Parts | |
| Chuck Wrench (1 pc) | W-P-630 |
| Scroll (1 pc) | SC-PS-500 |
| Pinion (1 pc) | PI-PO-500 |
| Pinion Sleeve (1 pc) | PS-P-500 |
| Half Ring (1 pc) | HR-P-500 |
| Fine Adjustment Screws (1 pc) | FS-P-500 |
| Chuck Mounting Bolts (1 pc) | MB-PA-500 |
| Adapters | |
| Adapters Adjustable A8 | FLA-500A8 |
| Adapters Adjustable A11 | FLA-500A11 |
| Adapters Adjustable D8 | FLA-500D8 |
| Adapters Adjustable D11 | FLA-500D11 |
| Adapters Adjustable L2 | FLA-500L2 |
| Base Plates | |
| Baseplates | F-BPA-500 |
| Baseplates (Haas) | F-BPA-500H60 |
