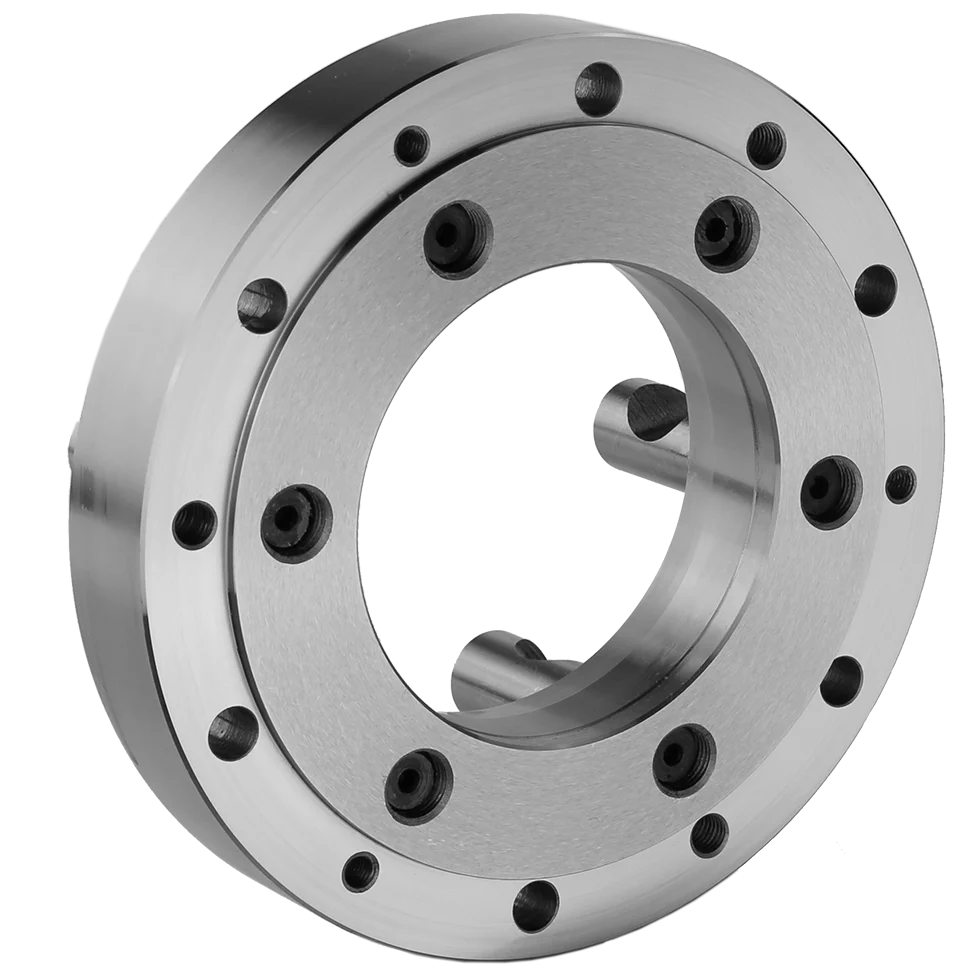

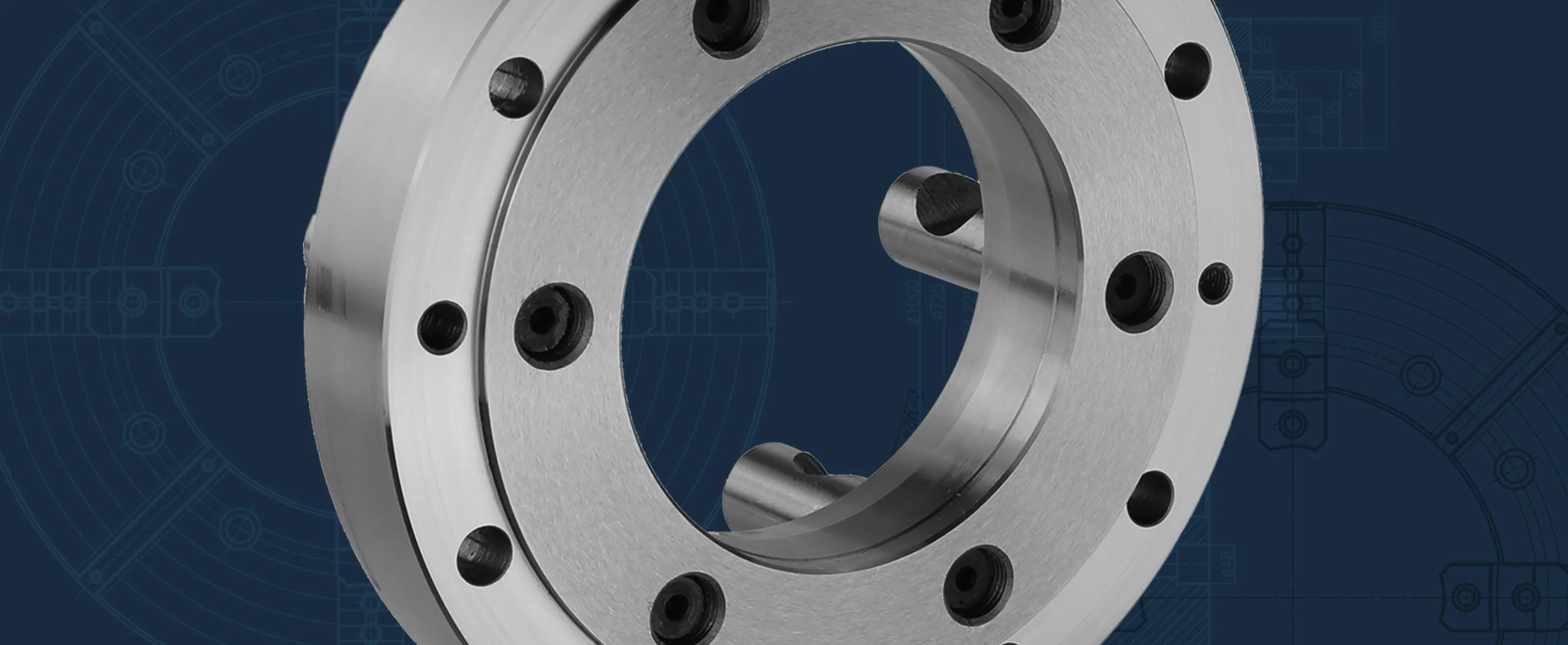

Machined Adapter, Forged Steel for 6" Scroll Chucks, D1-3 Spindle Mount
Product Information
| Chuck Type | Scroll |
| Adapter Plate Mount | D1-3 |
| Adapter Plate Dia (in) | 6.30 |
| Chuck Dia (in) | 6-1/4" |
| Adapter Plate Thru-Hole (in) | 2.03 |
| Chuck T.I.R Radial (in) | 0.0012 |
| Adapter Plate Material | Steel |
| Weight Gross (lbs) | 9.6 |
| Includes | Camlock Studs, Set Screws, Hex Keys |
Product Dimensions
| Chuck Dia (in) | 6-1/4" |
| Taper Size | D1-3 |
| Adapter OD A (in) | 6.30 |
| d Hole (in) | 2.03 |
| E (in) | 2.780 |
| G (in) | 2.1250 |
| F (in) | 5.5118 |
| C (in) | 5 |
| B (in) | 1.06 |
| Camlock Stud OD (in) | 9/16 |
| QTY | 3 |
Accessories
| Chucks | |
|---|---|
| 3-Jaw Plain Back Steel Body Scroll Chucks 2PC Jaws | 1-105-0600 |
| 3-Jaw Plain Back Steel Body Scroll Chucks Solid Jaws | 1-106-0600 |
| 4-Jaw Plain Back Steel Body Scroll Chucks 2PC Jaws | 1-107-0600 |
| 3-Jaw Plain Back Iron Body Scroll Chucks 2PC Jaws | 1-201-0600 |
| 3-Jaw Plain Back Iron Body Scroll Chucks Solid Jaws | 1-202-0600 |
| 4-Jaw Plain Back Iron Body Scroll Chucks 2PC Jaws | 1-203-0600 |
| 2-Jaw Plain Back Iron Body Scroll Chucks 2PC Jaws | 1-205-0600 |
| Spare Parts | |
| Camlock Studs | CA-D-03 |
