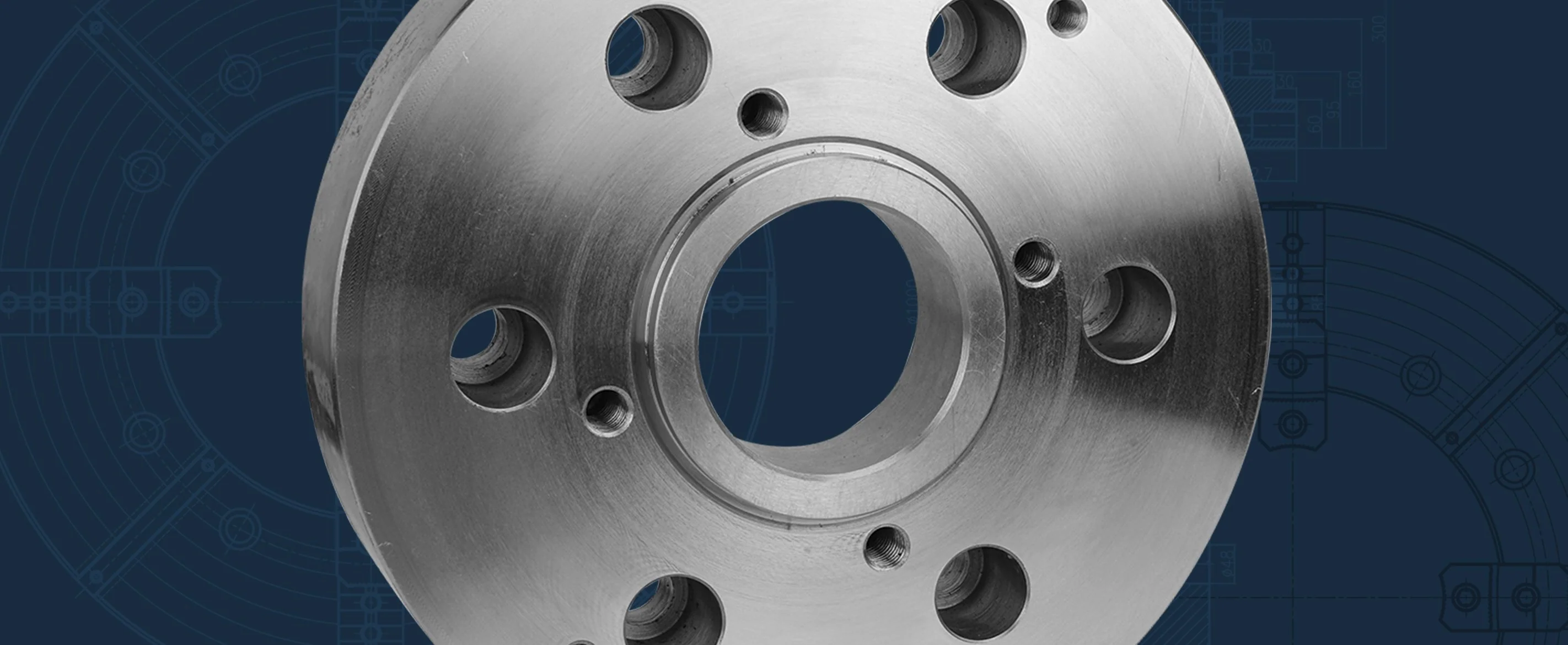

Fully-Finished Adapter, Forged Steel, for 8" Independent Chucks, A5 Spindle Mount
Product Information
| Chuck Dia (in) | 4-Jaw Independent |
| Adapter Plate Mount | A5 |
| Adapter Plate Dia (in) | 7.874 |
| Chuck Dia (in) | 8 |
| Adapter Plate Thru-Hole (in) | 2.205 |
| Adapter Plate Material | Steel |
| Weight Gross (lbs) | 12.3 |
| Includes | Spindle Mounting Bolts, Hex Key |
Product Dimensions
| Chuck Dia (in) | 8 |
| Taper Size | A5 |
| Adapter OD A (in) | 7.874 |
| Taper Dia G (in) | 3.2505 |
| d Hole (in) | 2.205 |
| F (in) | 3.740 |
| E (in) | 4.1250 |
| B (in) | 1.378 |
| B1 (in) | 0.2165 |
| C (in) | 2.9528 |
| Chuck Mounting Bolts M (mm) | M10 |
| QTY | 4 |
| Spindle Mounting Bolts N (in) | 7/16"-14 |
| QTY | 4 |
Accessories
| Chucks | |
|---|---|
| 4-Jaw Plain Back Iron Body Independent Chucks 2 PC Jaws | 1-301-0800 |
| 4-Jaw Plain Back Iron Body Independent Chucks Solid Jaws | 1-302-0800 |
| Spare Parts | |
| Adapter/Spindle Mounting Bolts | MB-200A5 |
