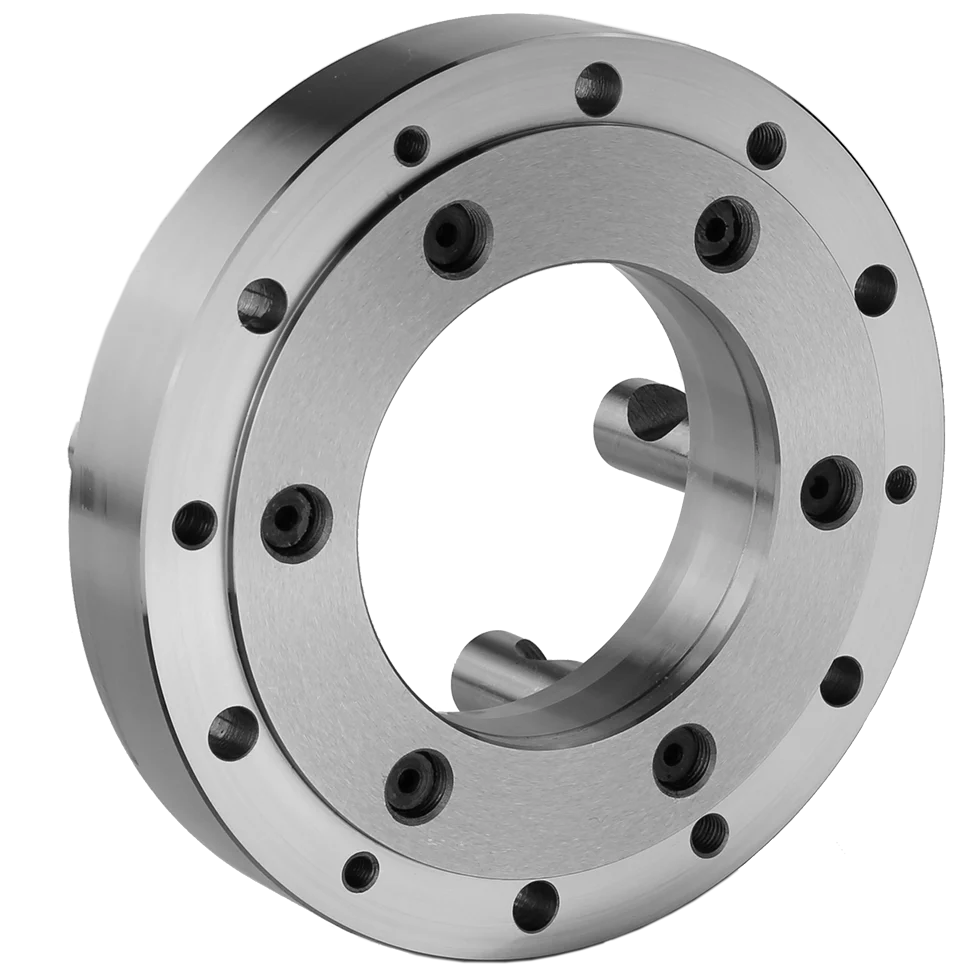

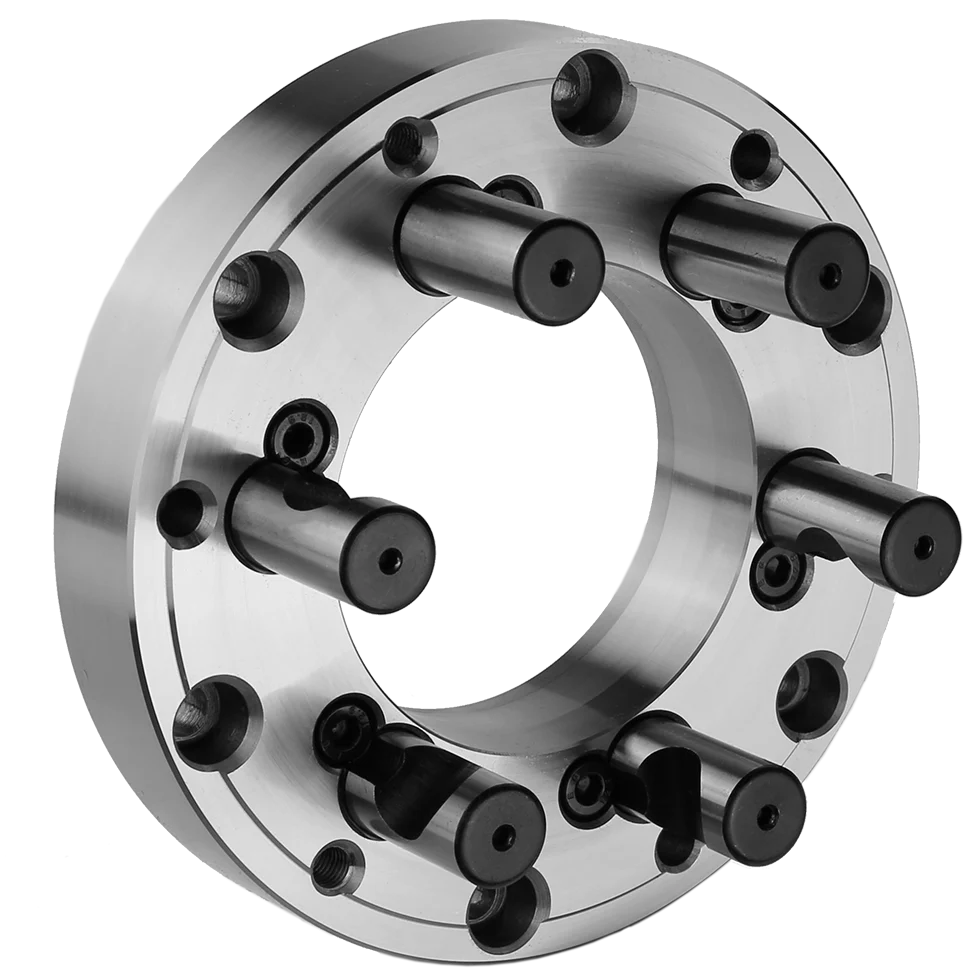

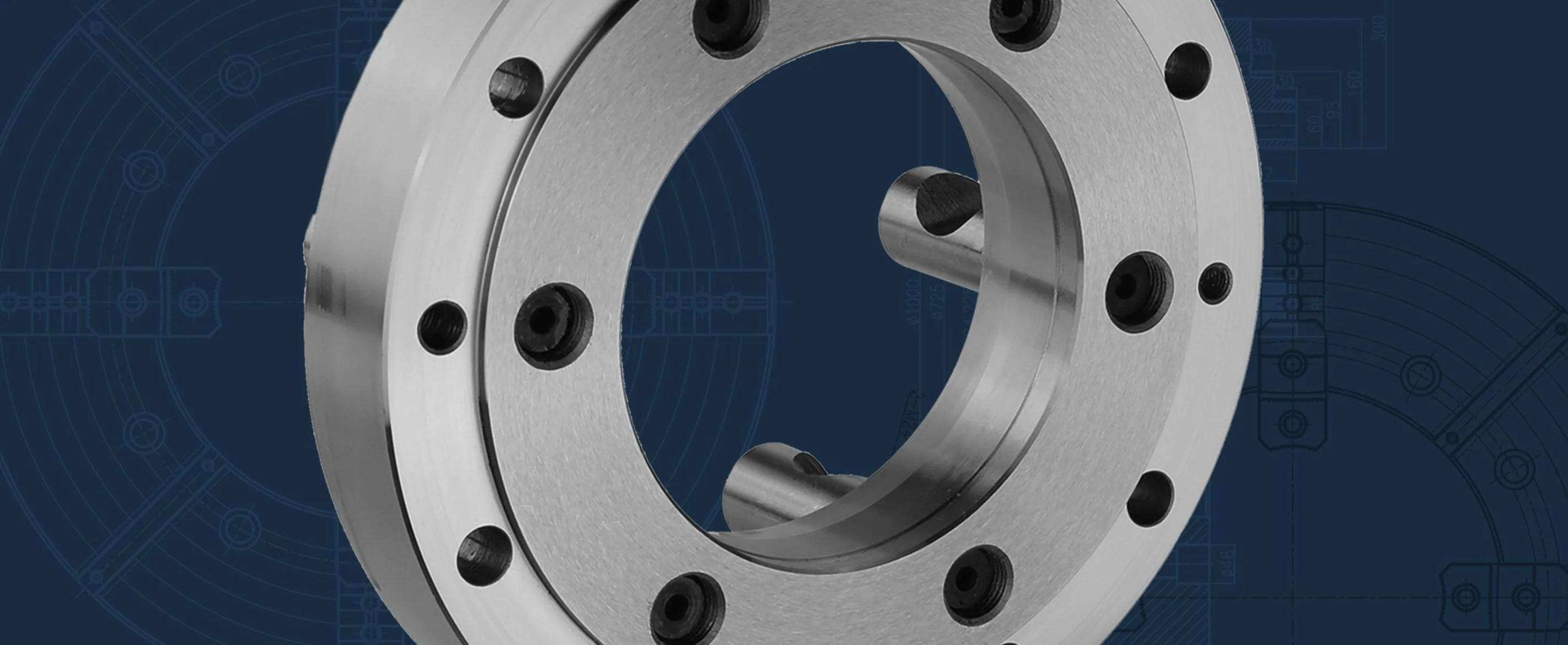

Machined Adapter, Forged Steel for 16" Scroll Chucks, D1-11 Spindle Mount
Product Information
| Chuck Type | Scroll |
| Adapter Plate Mount | D1-11 |
| Adapter Plate Dia (in) | 15.75 |
| Chuck Dia (in) | 15-3/4" |
| Adapter Plate Thru-Hole (in) | 7.59 |
| Chuck T.I.R Radial (in) | 0.0024 |
| Adapter Plate Material | Steel |
| Weight Gross (lbs) | 89.8 |
| Includes | Camlock Studs, Set Screws, Hex Keys |
Product Dimensions
| Chuck Dia (in) | 15-3/4" |
| Taper Size | D1-11 |
| Adapter OD A (in) | 15.75 |
| d Hole (in) | 7.59 |
| E (in) | 9.252 |
| G (in) | 7.7507 |
| F (in) | 14.2519 |
| C (in) | 13.11 |
| B (in) | 1.85 |
| Camlock Stud OD (in) | 1-3/16 |
| QTY | 6 |
Accessories
| Chucks | |
|---|---|
| 3-Jaw Plain Back Steel Body Scroll Chucks 2PC Jaws | 1-105-1600 |
| 3-Jaw Plain Back Steel Body Scroll Chucks Solid Jaws | 1-106-1600 |
| 4-Jaw Plain Back Steel Body Scroll Chucks 2PC Jaws | 1-107-1600 |
| 3-Jaw Plain Back Iron Body Scroll Chucks 2PC Jaws | 1-201-1600 |
| 3-Jaw Plain Back Iron Body Scroll Chucks Solid Jaws | 1-202-1600 |
| 4-Jaw Plain Back Iron Body Scroll Chucks 2PC Jaws | 1-203-1600 |
| 2-Jaw Plain Back Iron Body Scroll Chucks 2PC Jaws | 1-205-1600 |
| Spare Parts | |
| Camlock Studs | CA-D-11 |
