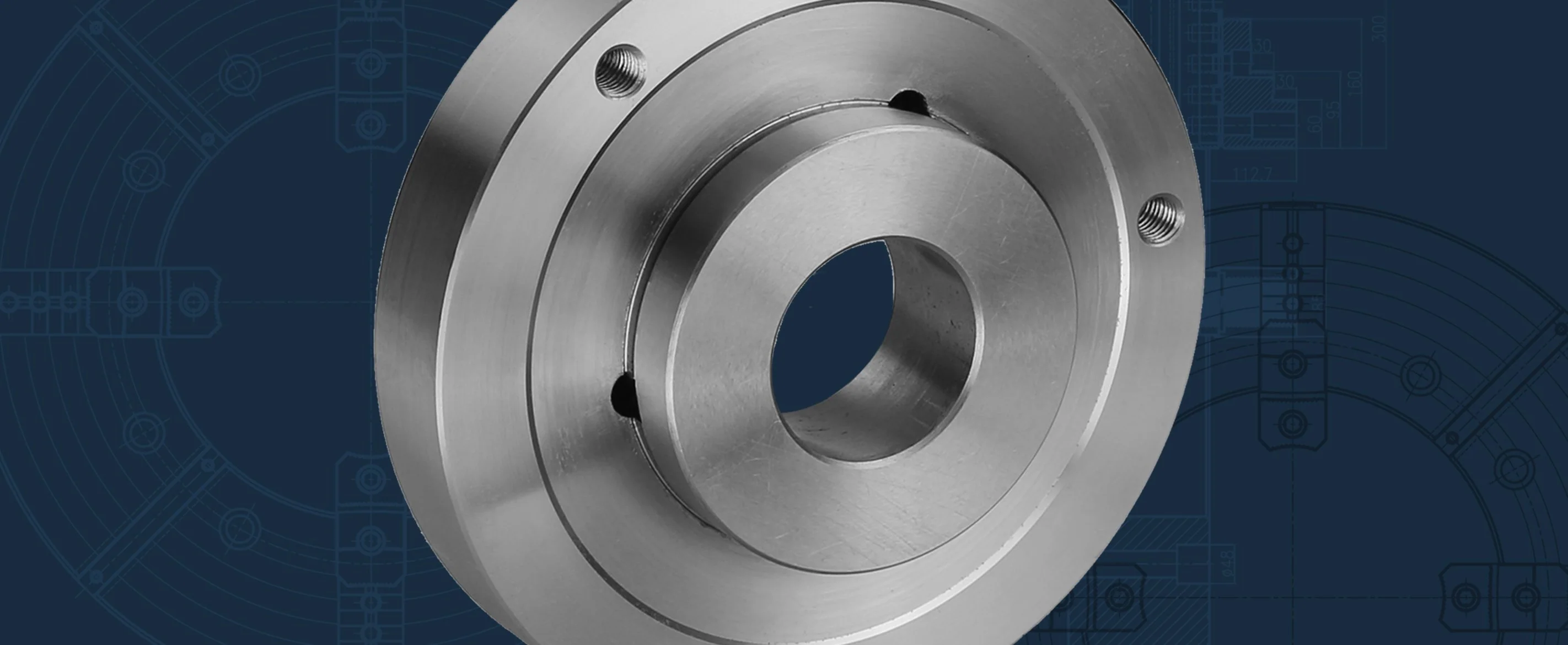

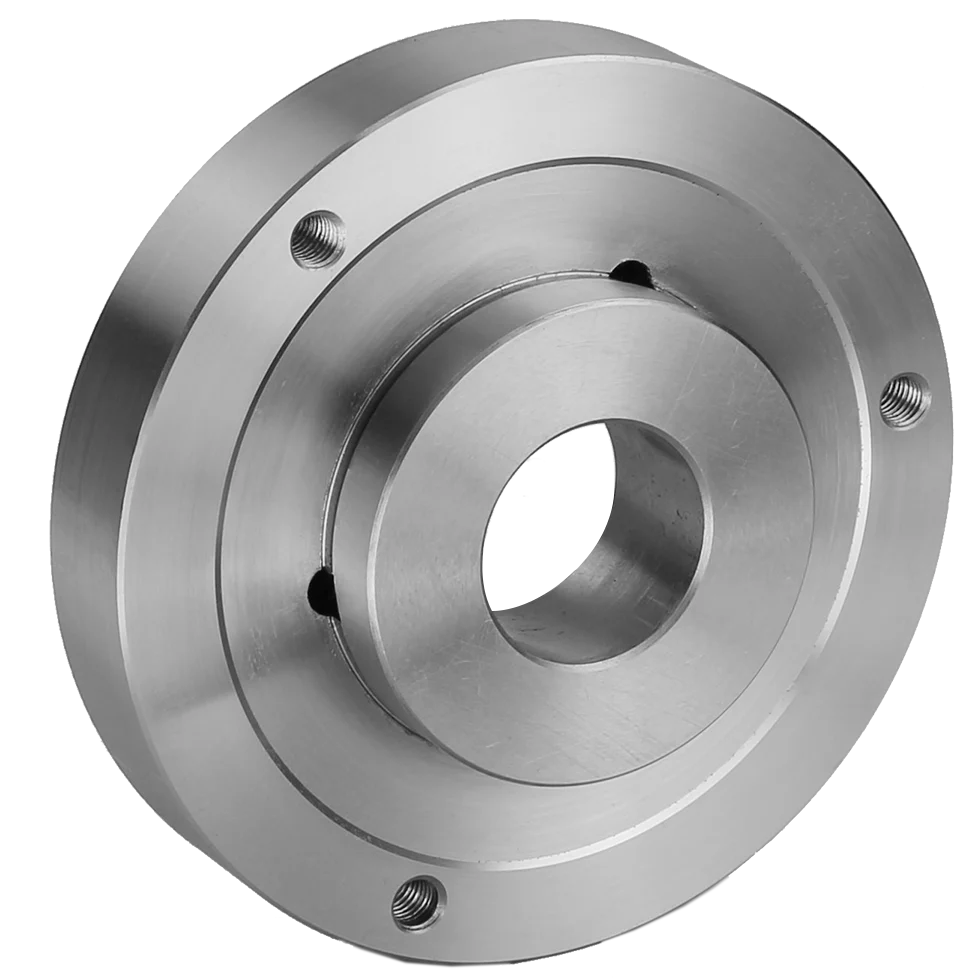

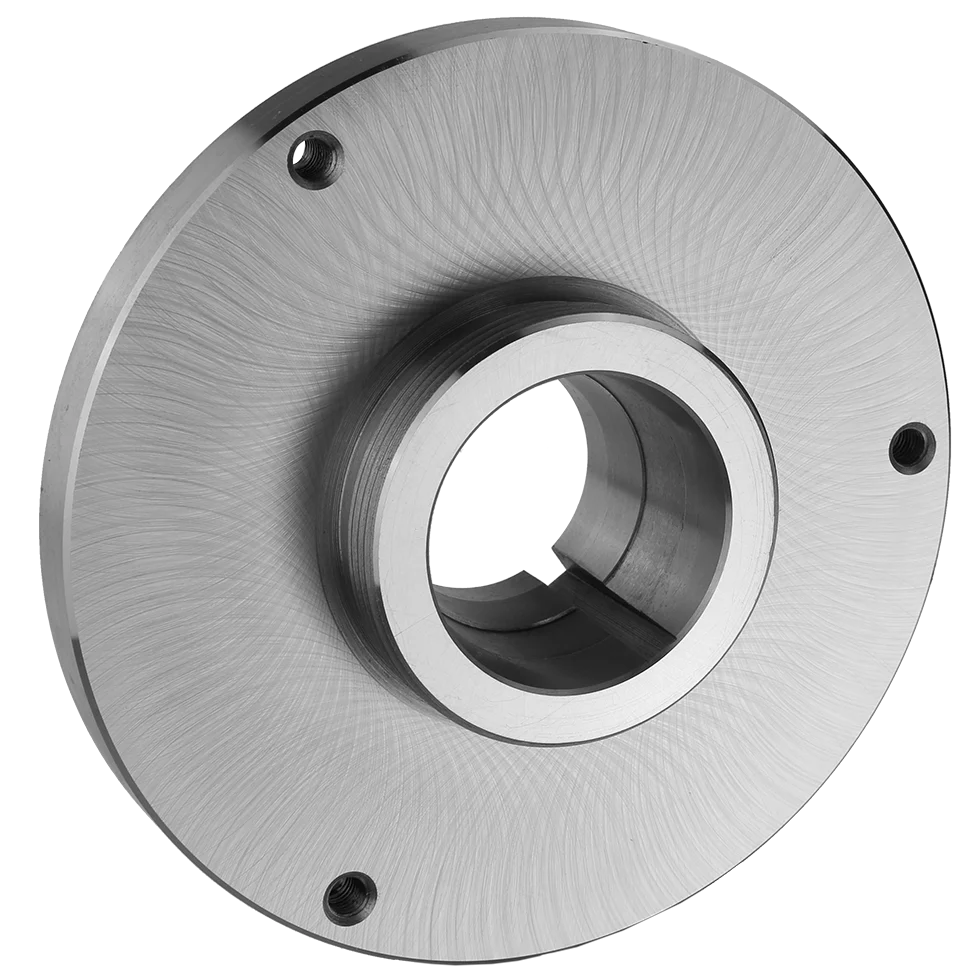

Fully Machined Steel Adapter for 8" Adjustable Chucks, L00 Spindle Mount
Product Information
| Chuck Type | Scroll, Adjustable |
| Chuck Mount | Front Mount |
| Adapter Plate Dia (in) | 7.87 |
| Chuck Dia (in) | 8" |
| Adapter Plate Thru-Hole (in) | 2.20 |
| Chuck T.I.R. Radial (in) | 0.0004 |
| Adapter Plate Material | Steel |
| Weight Gross (lbs) | 15.0 |
Product Dimensions
| Chuck Dia (in) | 8 |
| Taper Size | L00 |
| Adapter OD A (in) | 7.87 |
| Thread Size T-UNS3 (in) | 3-3/4-6 |
| D (in) | 2.750 |
| d Hole (in) | 2.20 |
| C (in) | 4.330 |
| G (in) | 6.929 |
| B (in) | 2.56 |
| B1 (in) | .79 |
| B2 (in) | .67 |
| Chuck Mounting Bolts M (mm) | M10x1.50 |
| QTY | 3 |
Accessories
| Chucks | |
|---|---|
| 3-Jaw Adjustable Scroll Chucks 2 PC Jaws Steel | 1-101-0800 |
| 6-Jaw Adjustable Scroll Chucks 2 PC Jaws Steel | 1-103-0800 |
| 3-Jaw Adjustable Scroll Chucks 2 PC Jaws Cast Iron | 1-151-0800 |
| 6-Jaw Adjustable Scroll Chucks 2 PC Jaws Cast Iron | 1-153-0800 |
