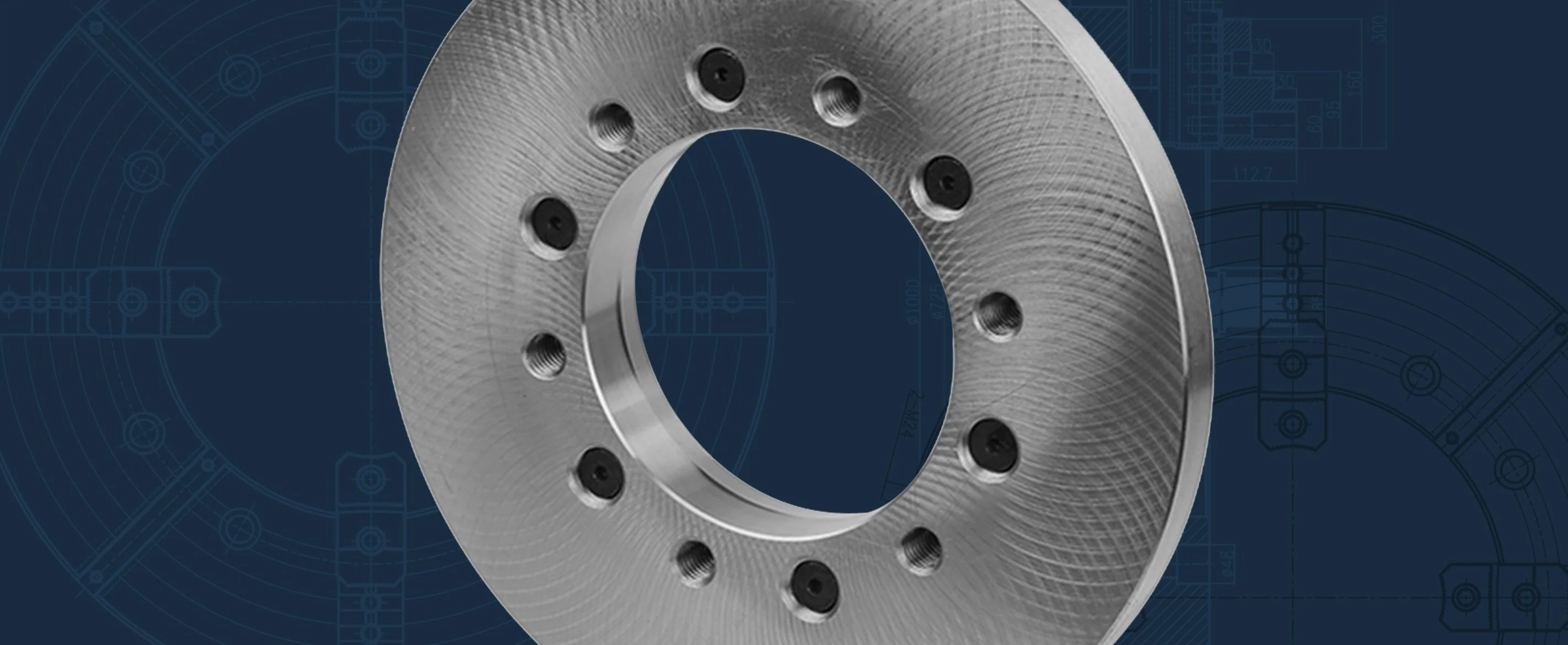

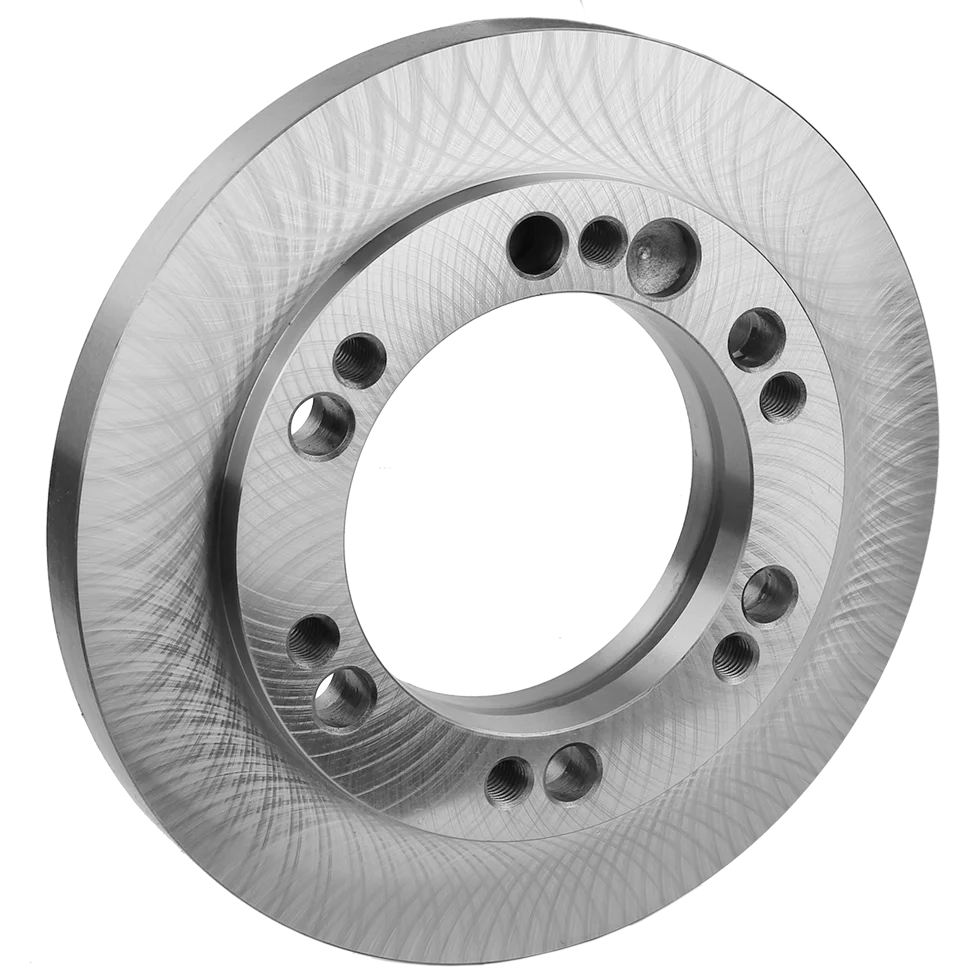

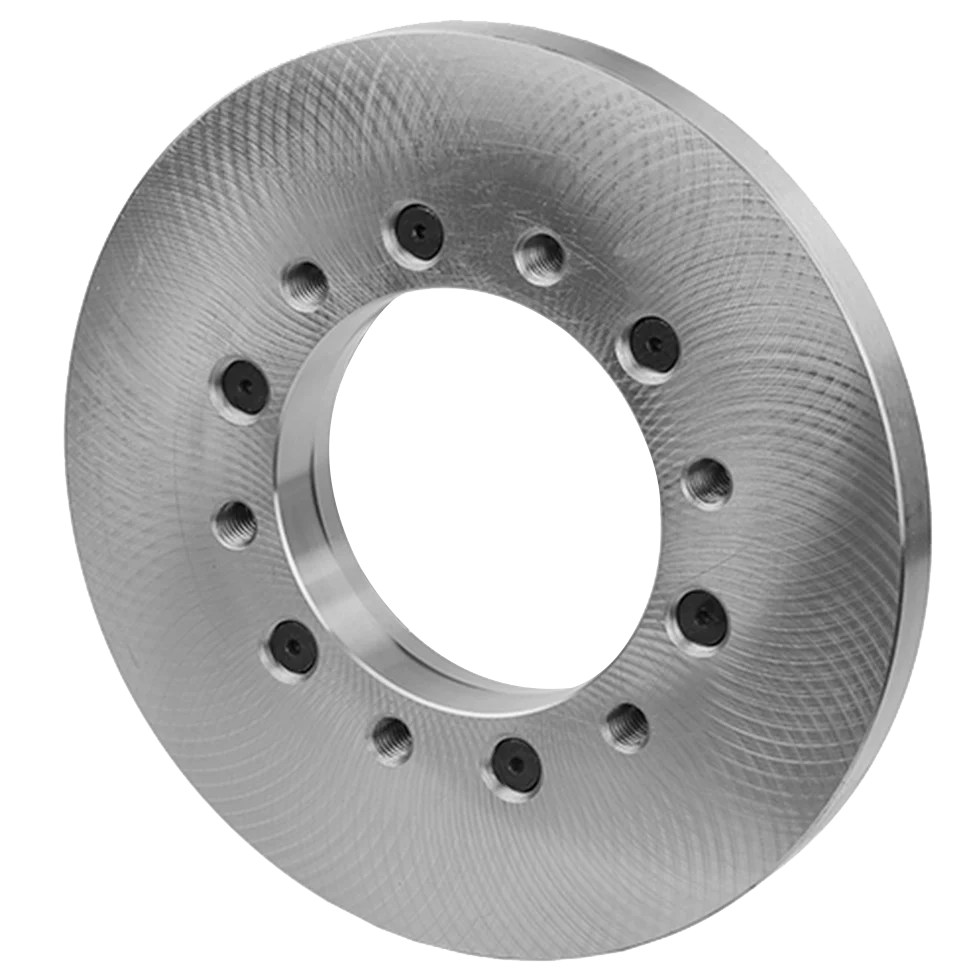

Fully Machined Steel Adapter for 25" Adjustable Chucks, A-11 Spindle Mount
Product Information
| Chuck Type | Scroll, Adjustable |
| Chuck Mount | Front Mount |
| Adapter Plate Dia (in) | 16.02 |
| Chuck Dia (in) | 25 |
| Adapter Plate Thru-Hole (in) | 7.580 |
| Chuck T.I.R. Radial (in) | 0.0004 |
| Adapter Plate Material | Steel |
| Weight Gross (lbs) | 61 |
| Includes | Adapter Plate Mounting Bolts, Hex Key |
Product Dimensions
| Chuck Dia (in) | 25 |
| Taper Size | A11 |
| Adapter OD A (in) | 16.02 |
| d Hole (in) | 7.580 |
| D (in) | 7.7507 |
| F (in) | 9.252 |
| C (in) | 13.000 |
| B (in) | 1.42 |
| Chuck Mounting Bolts M (in) | 3/4-10 |
| QTY | 6 |
| Spindle Mounting Bolts N (in) | 3/4-10 |
| QTY | 6 |
Accessories
| Chucks | |
|---|---|
| 3-Jaw Adjustable Scroll Chucks 2 PC Jaws Steel | 1-101-2500 |
| 6-Jaw Adjustable Scroll Chucks 2 PC Jaws Steel | 1-103-2500 |
| 3-Jaw Adjustable Scroll Chucks 2 PC Jaws Cast Iron | 1-151-2500 |
| 6-Jaw Adjustable Scroll Chucks 2 PC Jaws Cast Iron | 1-153-2500 |
| Spare Parts | |
| Adapter Mounting Bolts | MB-630A11 |
