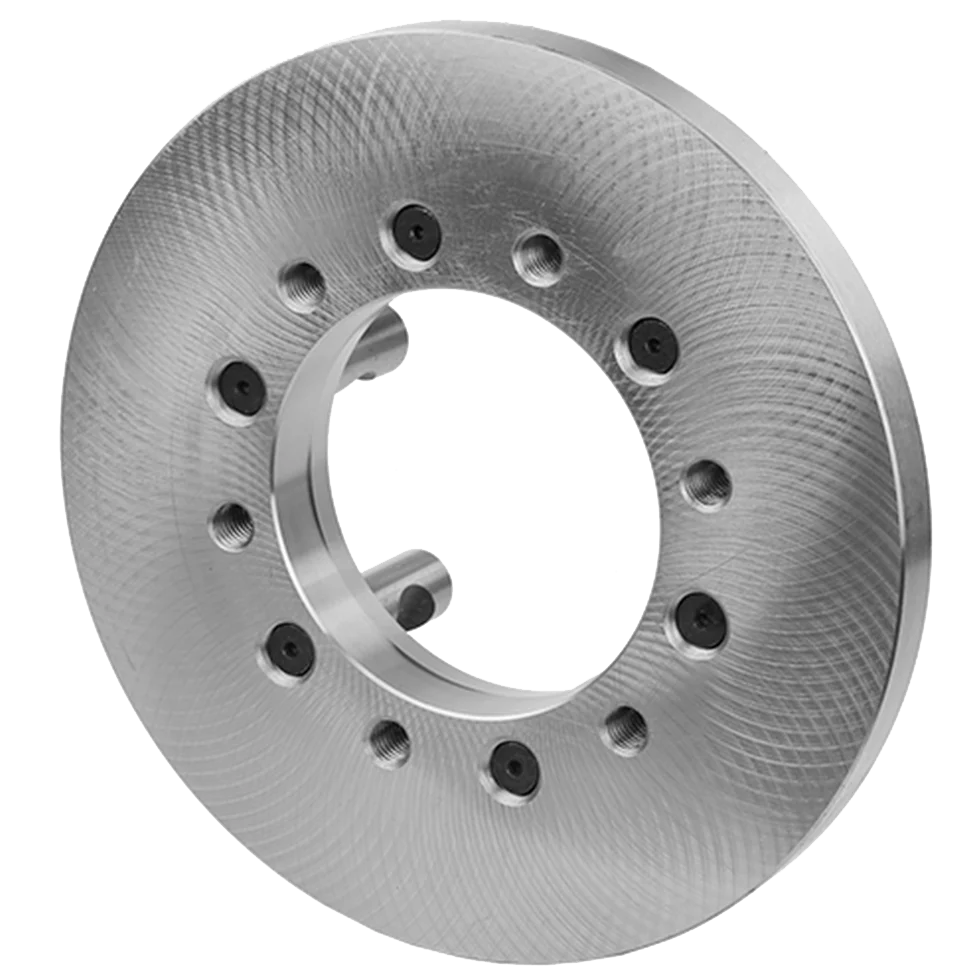

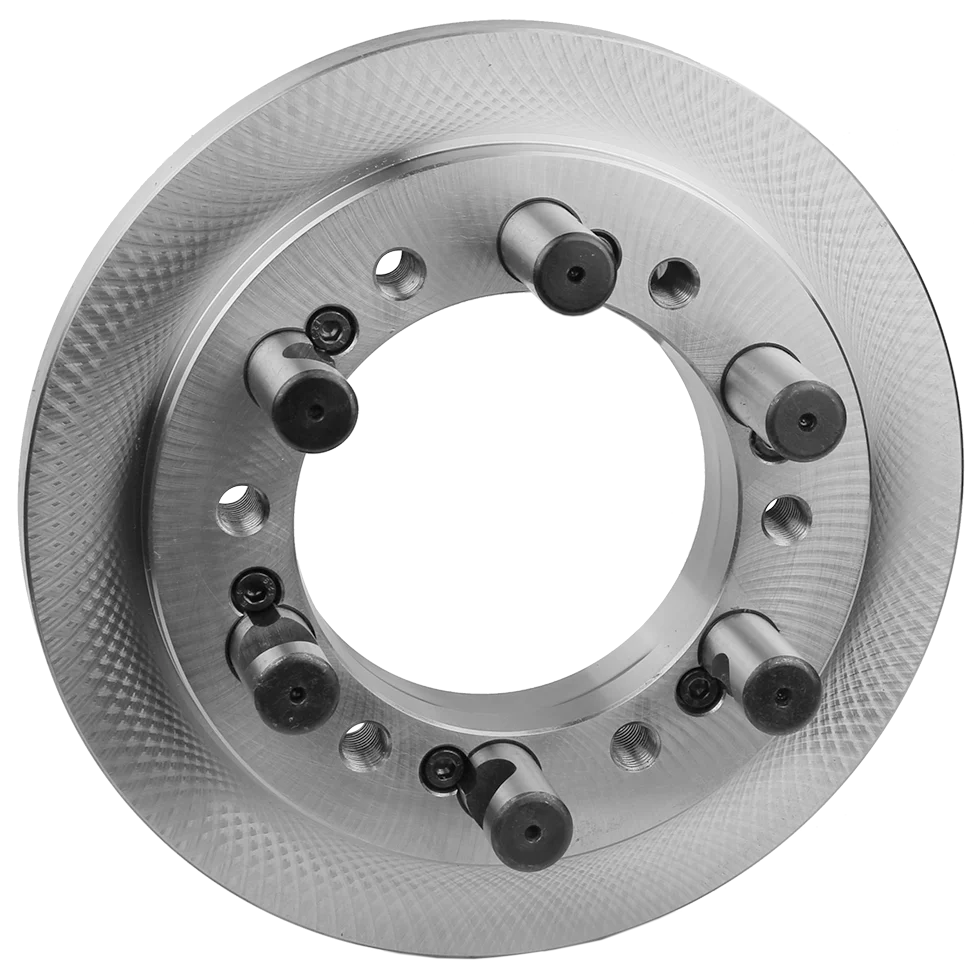

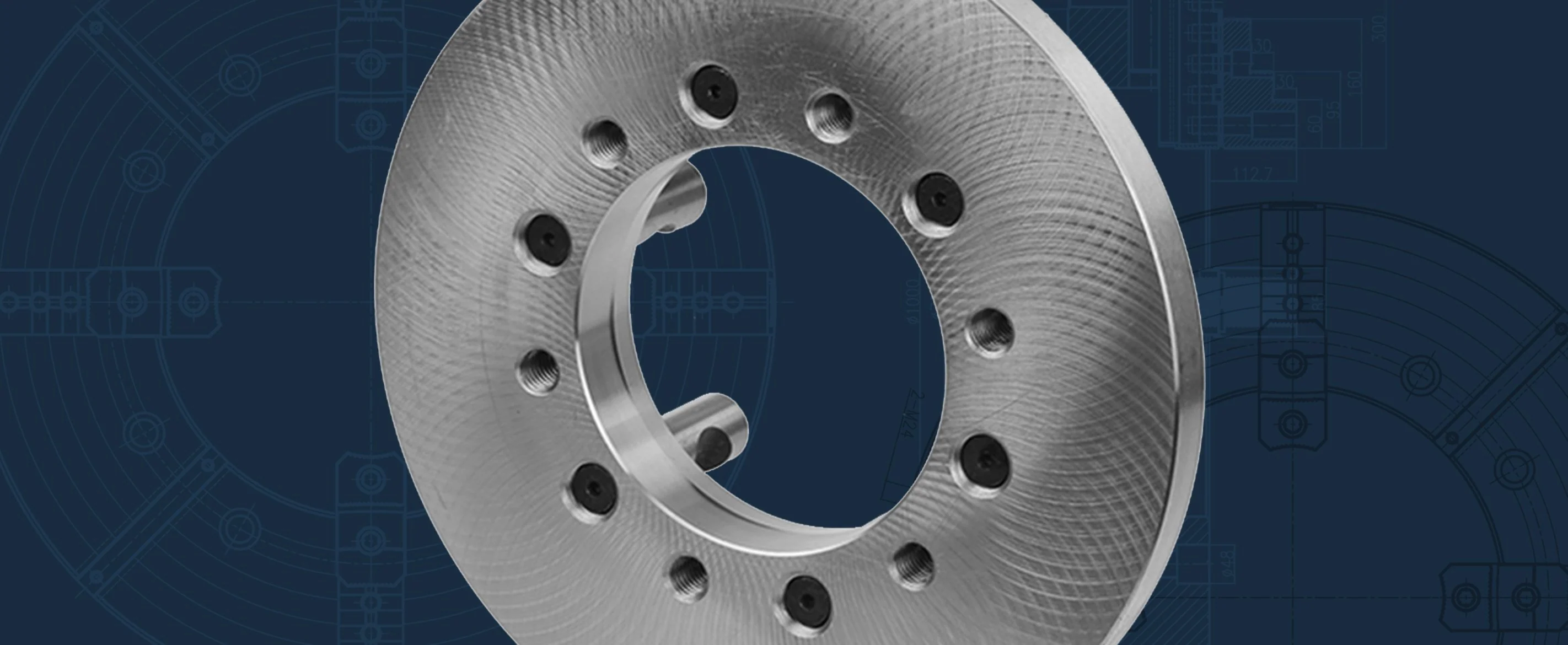

Fully Machined Steel Adapter for 16" Adjustable Chucks, D-6 Spindle Mount
Product Information
| Chuck Type | Scroll, Adjustable |
| Chuck Mount | Front Mount |
| Adapter Plate Dia (in) | 11.75 |
| Chuck Dia (in) | 15-3/4" |
| Adapter Plate Thru-Hole (in) | 4.055 |
| Chuck T.I.R. Radial (in) | 0.0004 |
| Adapter Plate Material | Steel |
| Weight Gross (lbs) | 29.0 |
| Includes | Camlock Studs, Set Screws, Hex Key |
Product Dimensions
| Chuck Dia (in) | 15-3/4" |
| Taper Size | D1-6 |
| Adapter OD A (in) | 11.75 |
| d Hole (in) | 4.055 |
| G (in) | 4.1880 |
| F (in) | 5.252 |
| E (in) | 6.748 |
| B (in) | 1.38 |
| Chuck Mounting Bolts M (in) | 5/8-11 |
| QTY | 6 |
| Camlock Stud OD (in) | 7/8" |
| QTY | 6 |
Accessories
| Chucks | |
|---|---|
| 3-Jaw Adjustable Scroll Chucks 2 PC Jaws Steel | 1-101-1600 |
| 6-Jaw Adjustable Scroll Chucks 2 PC Jaws Steel | 1-103-1600 |
| 3-Jaw Adjustable Scroll Chucks 2 PC Jaws Cast Iron | 1-151-1600 |
| 6-Jaw Adjustable Scroll Chucks 2 PC Jaws Cast Iron | 1-153-1600 |
| Spare Parts | |
| Camlock Studs | CA-D-06 |
