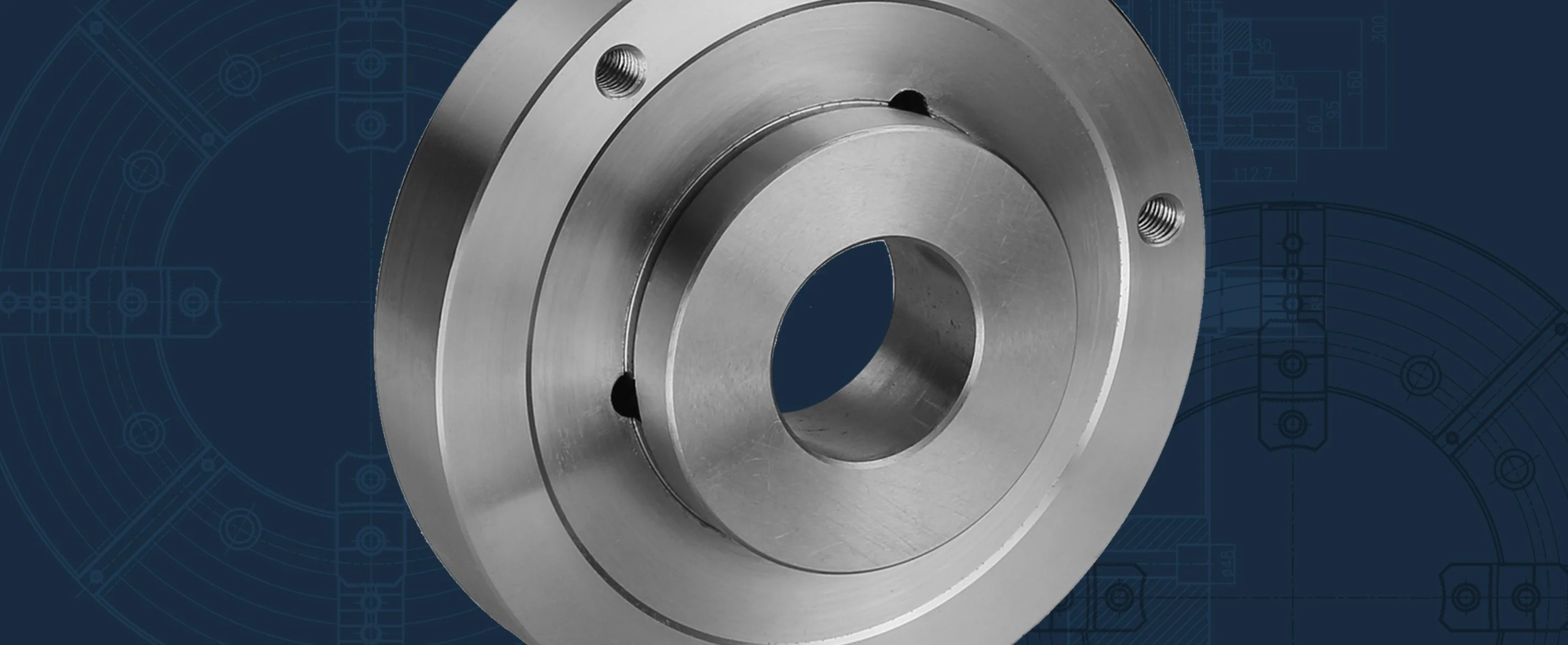

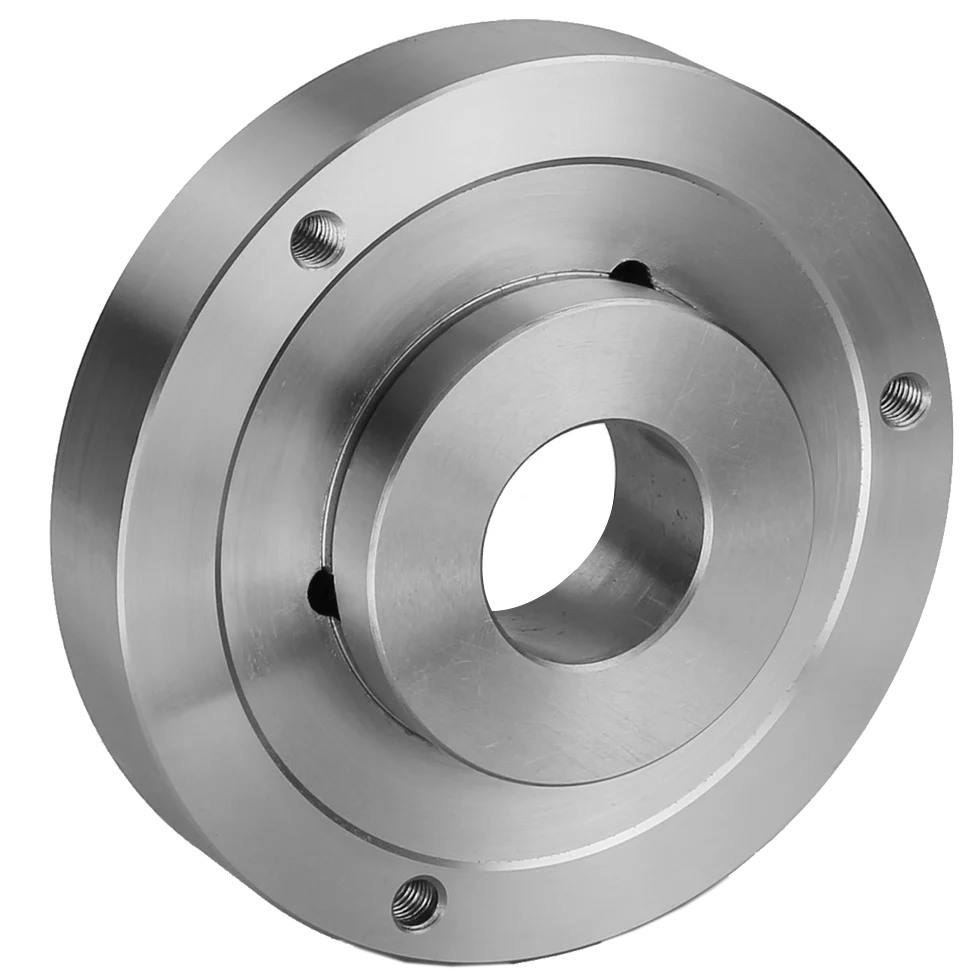

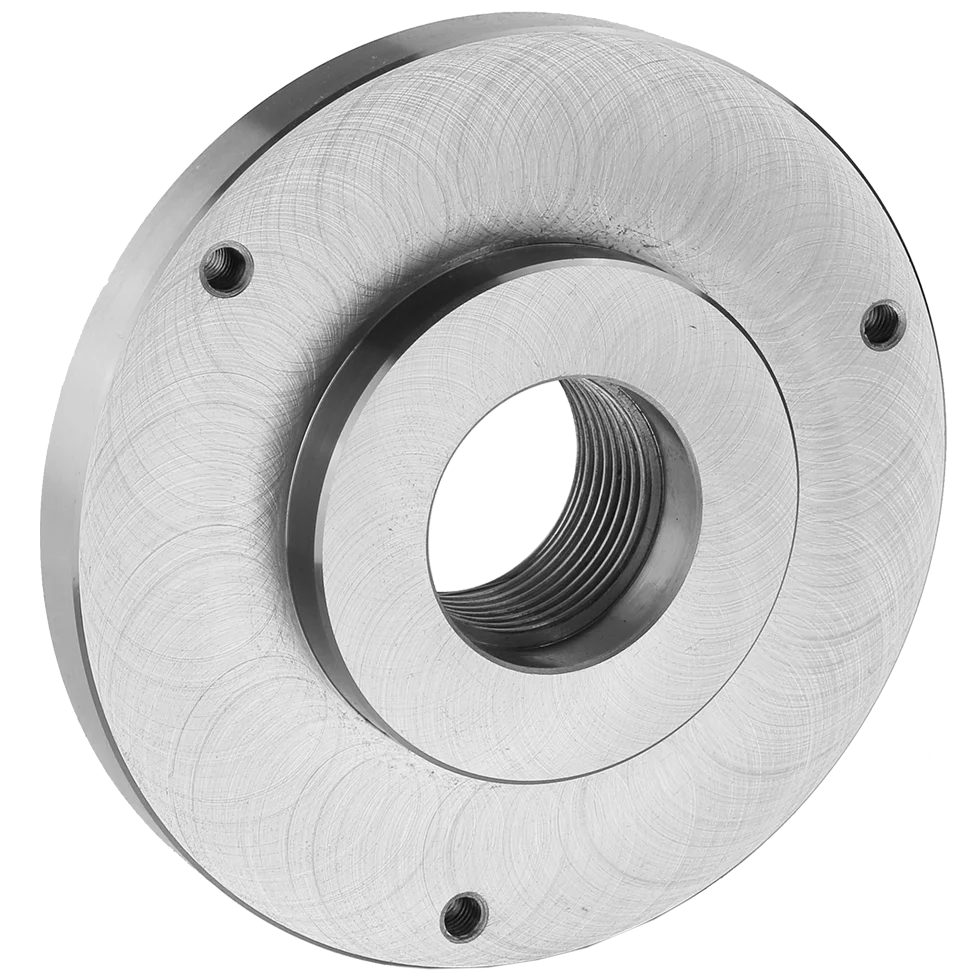

Fully Machined Steel Adapter for 12" Adjustable Chucks, Threaded 2-3/8 - 6 Spindle Mount
Product Information
| Chuck Type | Scroll, Adjustable |
| Chuck Mount | Front Mount |
| Adapter Plate Dia (in) | 12.40 |
| Chuck Dia (in) | 12-1/2" |
| Adapter Plate Thru-Hole (in) | 2-3/8 |
| Chuck T.I.R. Radial (in) | 0.0004 |
| Adapter Plate Material | Steel |
| Weight Gross (lbs) | 50 |
Product Dimensions
| Chuck Dia (in) | 12-1/2 |
| Thread Size T (in) | 2-3/8-6UN-2B |
| Adapter OD A (in) | 12.40 |
| D (in) | 2.3850 |
| E (in) | 7.086 |
| F (in) | 11.260 |
| B (in) | 2.05 |
| B1 (in) | .75 |
| B2 (in) | .94 |
| Chuck Mounting Bolts M (mm) | M16x2 |
| QTY | 3 |
Accessories
| Chucks | |
|---|---|
| 3-Jaw Adjustable Scroll Chucks 2 PC Jaws Steel | 1-101-1200 |
| 6-Jaw Adjustable Scroll Chucks 2 PC Jaws Steel | 1-103-1200 |
| 3-Jaw Adjustable Scroll Chucks 2 PC Jaws Cast Iron | 1-151-1200 |
| 6-Jaw Adjustable Scroll Chucks 2 PC Jaws Cast Iron | 1-153-1200 |
