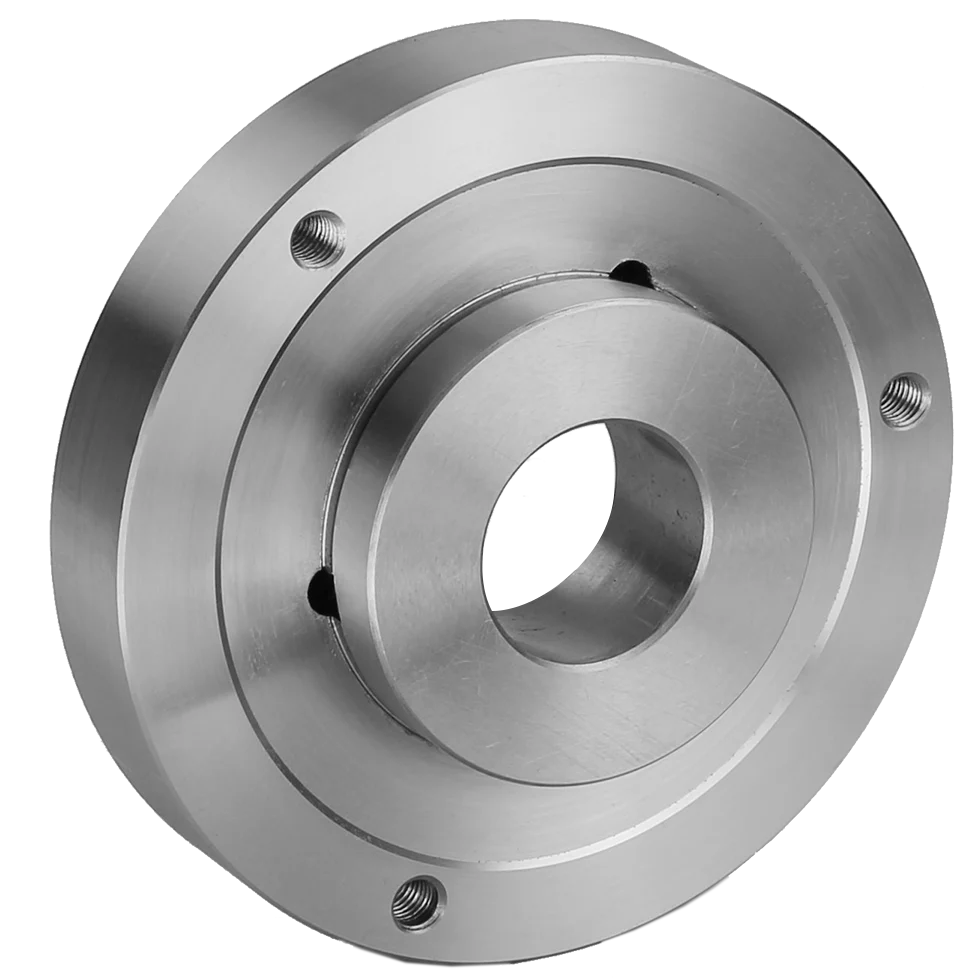

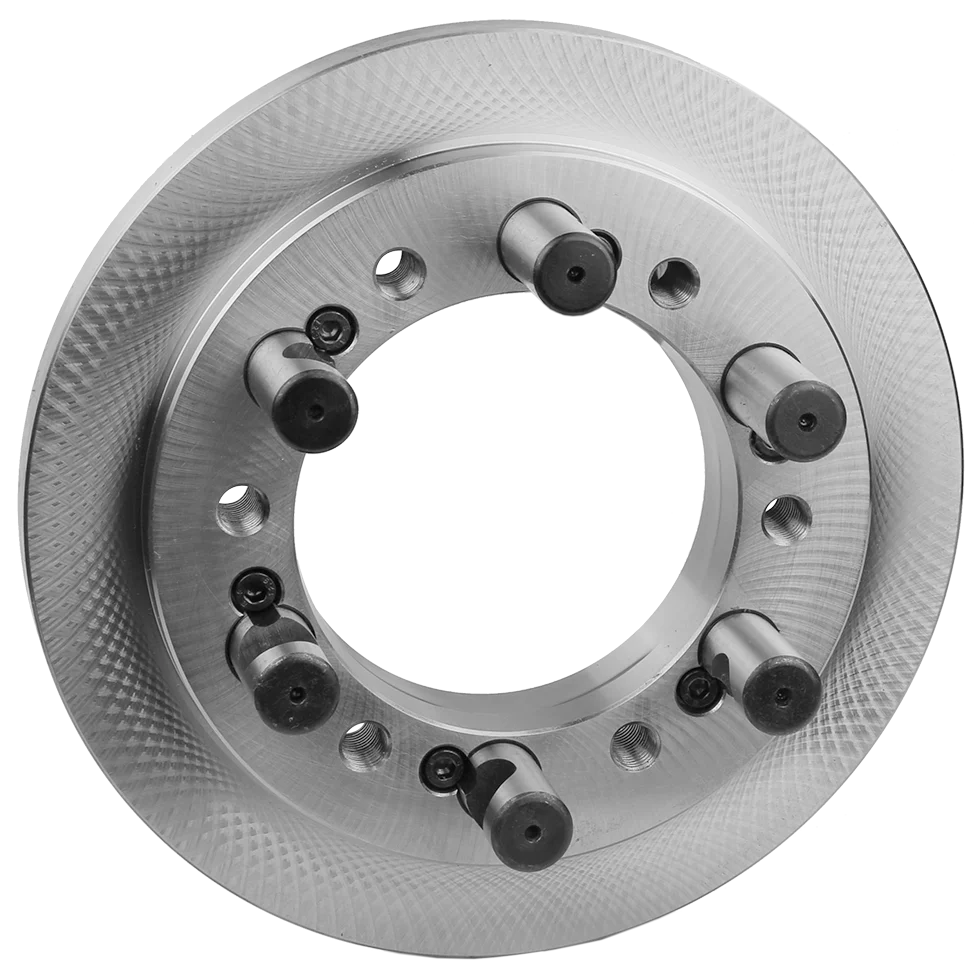

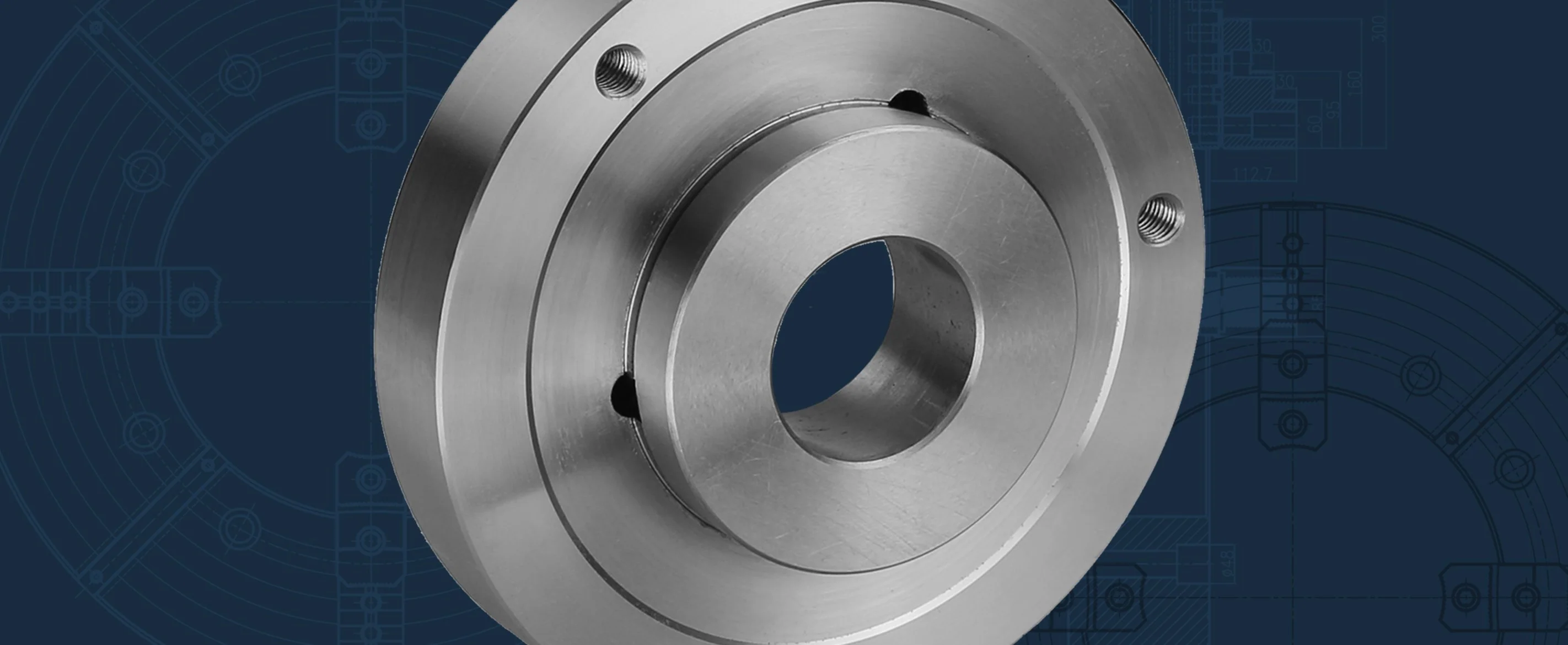

Fully Machined Steel Adapter for 10" Adjustable Chucks, D-8 Spindle Mount
Product Information
| Chuck Type | Scroll, Adjustable |
| Chuck Mount | Front Mount |
| Adapter Plate Dia (in) | 9.84 |
| Chuck Dia (in) | 10" |
| Adapter Plate Thru-Hole (in) | 2.992 |
| Chuck T.I.R. Radial (in) | 0.0004 |
| Adapter Plate Material | Steel |
| Weight Gross (lbs) | 32.41 |
| Includes | Camlock Studs, Set Screws, Hex Key |
Product Dimensions
| Chuck Dia (in) | 10 |
| Taper Size | D1-8 |
| Adapter OD A (in) | 9.84 |
| d Hole (in) | 2.992 |
| G (in) | 5.5007 |
| F (in) | 6.748 |
| E (in) | 8.819 |
| C (in) | 5.708 |
| B1 (in) | .75 |
| B (in) | 2.36 |
| Chuck Mounting Bolts M (mm) | M12x1.75 |
| QTY | 3 |
| Camlock Stud OD (in) | 1" |
| QTY | 6 |
Accessories
| Chucks | |
|---|---|
| 3-Jaw Adjustable Scroll Chucks 2 PC Jaws Steel | 1-101-1000 |
| 6-Jaw Adjustable Scroll Chucks 2 PC Jaws Steel | 1-103-1000 |
| 3-Jaw Adjustable Scroll Chucks 2 PC Jaws Cast Iron | 1-151-1000 |
| 6-Jaw Adjustable Scroll Chucks 2 PC Jaws Cast Iron | 1-153-1000 |
| Spare Parts | |
| Camlock Studs | CA-D-08 |
