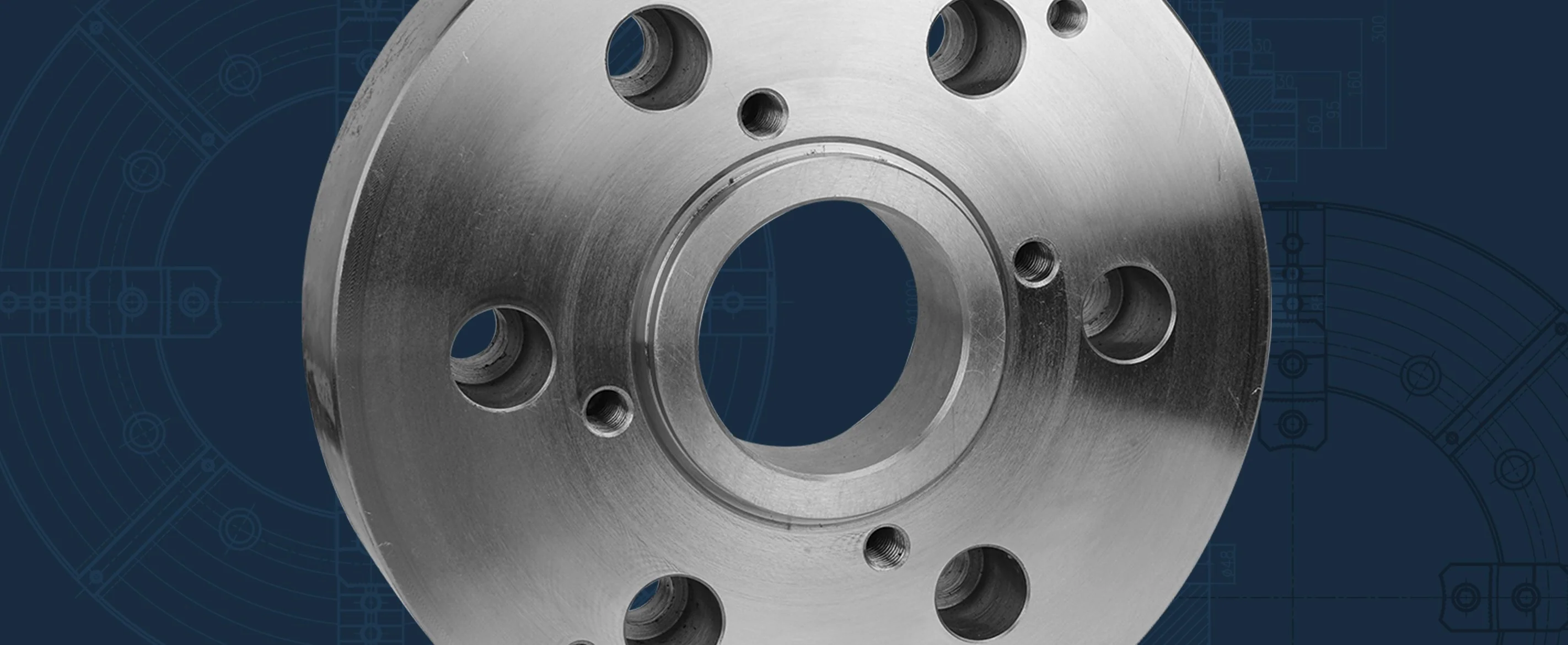

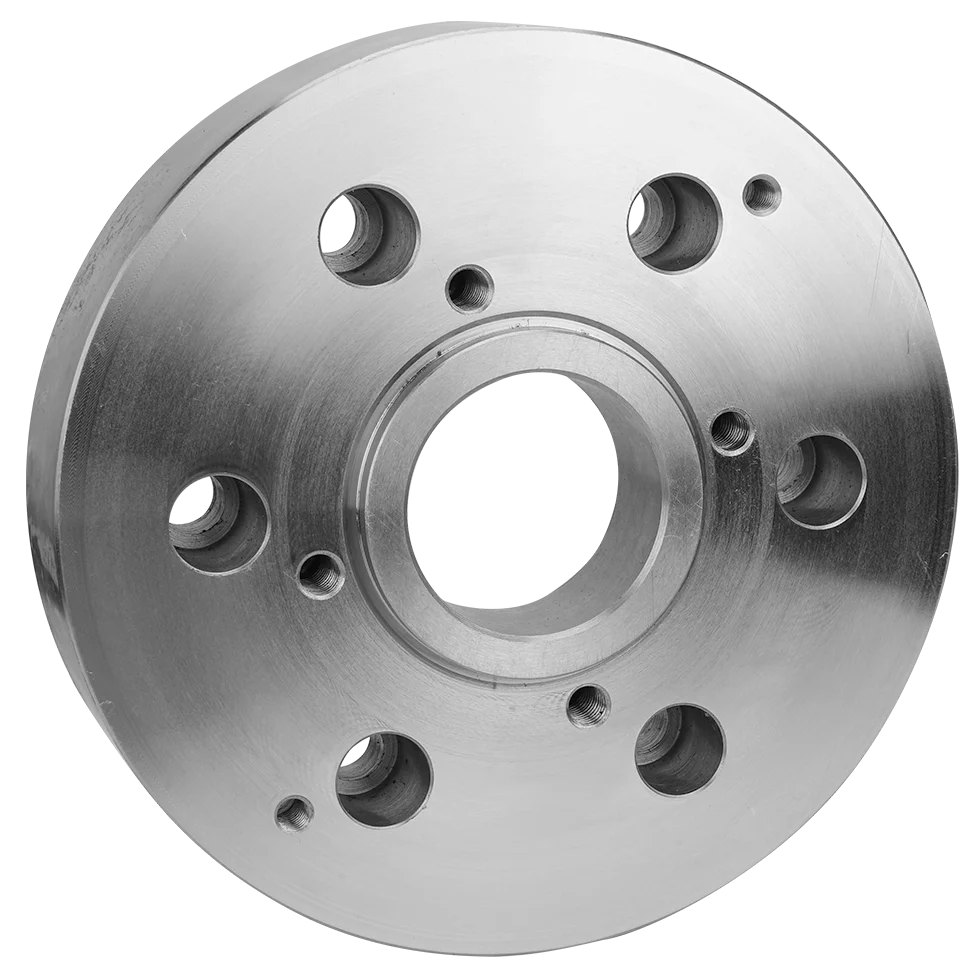

Fully-Finished Adapter, Forged Steel, for 32" Independent Chucks, A15 Spindle Mount
Product Information
| Chuck Type | 4-Jaw Independent |
| Adapter Plate Mount | A15 |
| Adapter Plate Dia (in) | 15.75 |
| Chuck Dia (in) | 31-1/2 |
| Adapter Plate Thru-Hole (in) | 8.268 |
| Adapter Plate Material | Steel |
| Weight Gross (lbs) | 115 |
| Includes | Spindle Mounting Bolts, Hex Key |
Product Dimensions
| Chuck Dia (in) | 31-1/2 |
| Taper Size | A15 |
| Adapter OD A (in) | 15.75 |
| Taper Dia G (in) | 11.251 |
| d Hole (in) | 8.268 |
| F (in) | 11.811 |
| E (in) | 13.000 |
| B (in) | 3.071 |
| B1 (in) | 0.394 |
| C (in) | 9.8425 |
| Chuck Mounting Bolts M (mm) | M20 |
| QTY | 8 |
| Spindle Mounting Bolts N (in) | 7/8"-9 |
| QTY | 6 |
Accessories
| Chucks | |
|---|---|
| 4-Jaw Plain Back Iron Body Independent Chucks 2 PC Jaws | 1-301-3200 |
| 4-Jaw Plain Back Iron Body Independent Chucks Solid Jaws | 1-302-3200 |
| Spare Parts | |
| Adapter/Spindle Mounting Bolts | MB-800A15 |
