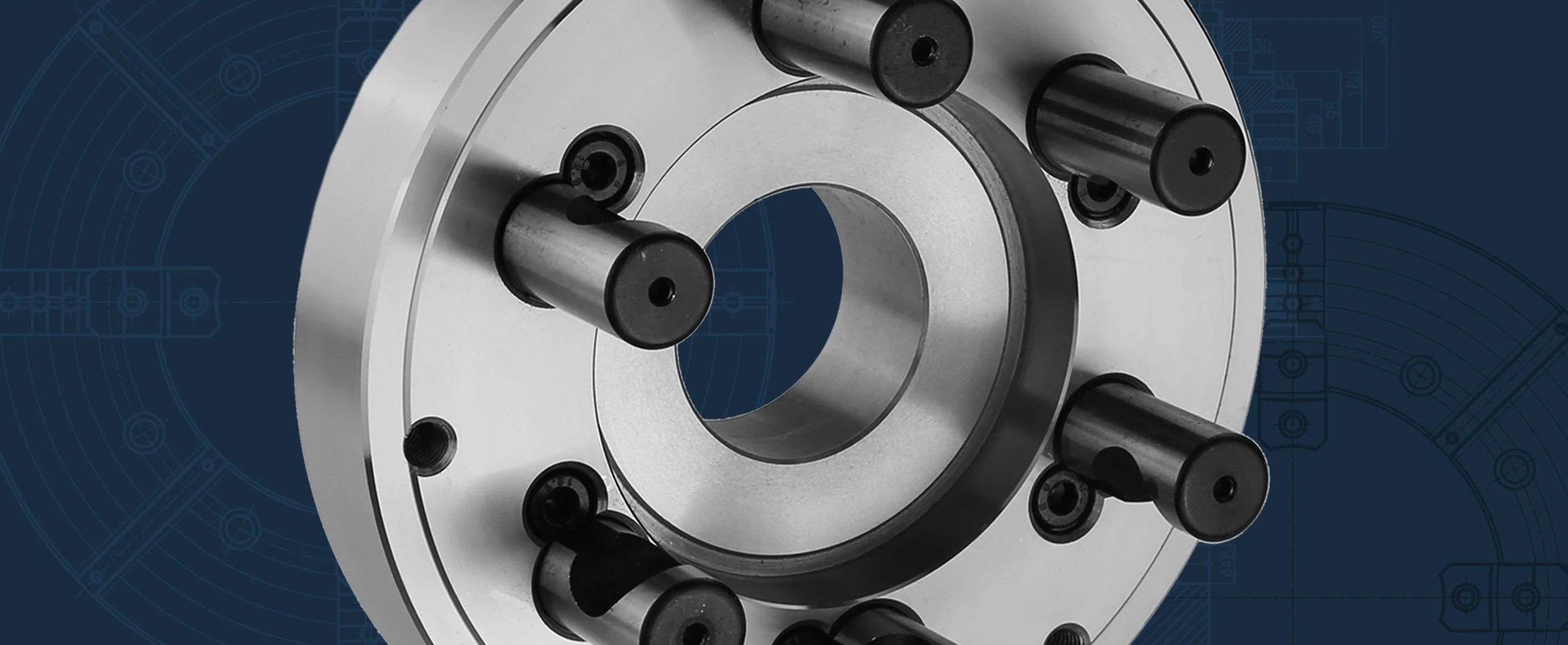

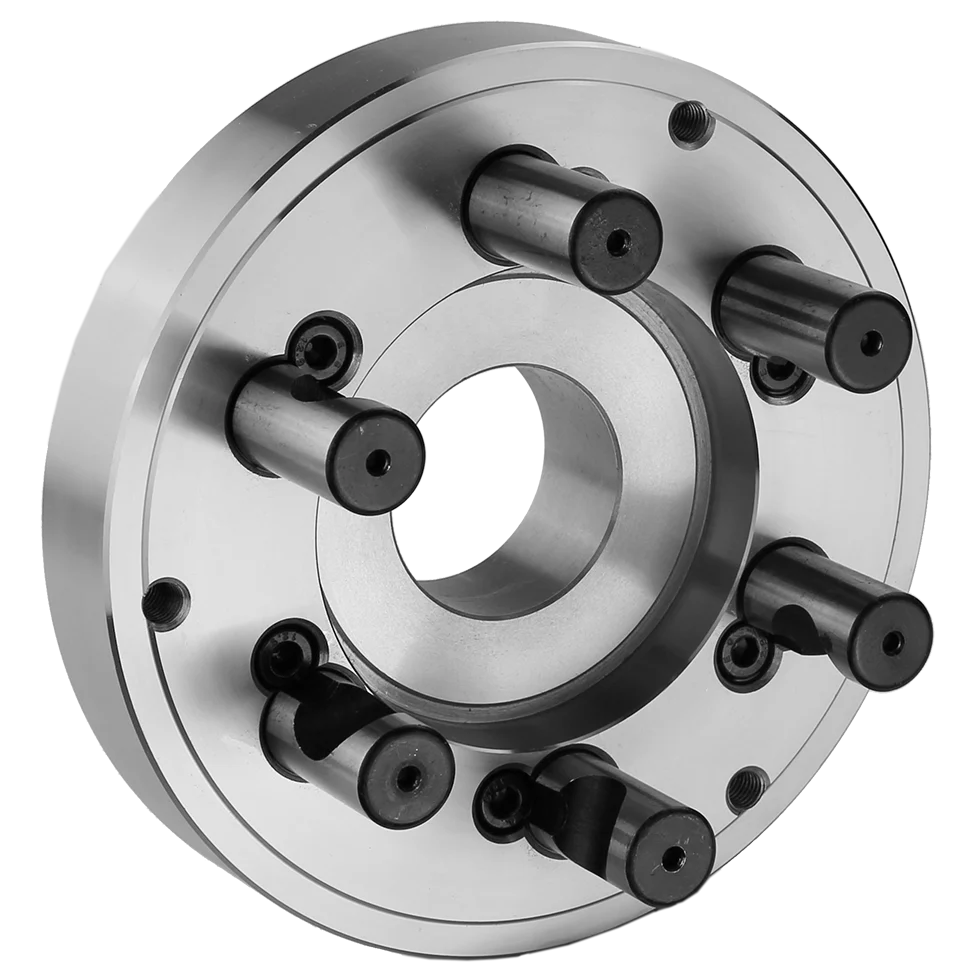

Fully-Finished Adapter, Forged Steel for 20" & 25" Independent Chucks, D1-11 Spindle Mount
Product Information
| Chuck Type | 4-Jaw Independent |
| Adapter Plate Mount | D1-11 |
| Adapter Plate Dia (in) | 11.73 |
| Chuck Dia (in) | 20 & 25 |
| Adapter Plate Thru-Hole (in) | 4.921 |
| Adapter Plate Material | Steel |
| Weight Gross (lbs) | 52.6 |
| Includes | Camlock Studs, Set Screws, Hex Key |
Product Dimensions
| Chuck Dia (in) | 20 & 25 |
| Taper Size | D1-11 |
| Adapter OD A (in) | 11.73 |
| Taper Dia D (in) | 7.7507 |
| d Hole (in) | 4.921 |
| E (in) | 9.252 |
| F (in) | 13.000 |
| B (in) | 2.165 |
| B1 (in) | 0.551 |
| C (in) | 10.630 |
| Chuck Mounting Bolts M (mm) | M20 |
| QTY | 4 |
| Camlock Stud Dia (in) | 1-3/16 |
| QTY | 6 |
Accessories
| Chucks | |
|---|---|
| 4-Jaw Plain Back Iron Body Independent Chucks 2 PC Jaws (20") | 1-301-2000 |
| 4-Jaw Plain Back Iron Body Independent Chucks Solid Jaws (20") | 1-302-2000 |
| 4-Jaw Plain Back Iron Body Independent Chucks 2 PC Jaws (25") | 1-301-2500 |
| 4-Jaw Plain Back Iron Body Independent Chucks Solid Jaws (25") | 1-302-2500 |
| Spare Parts | |
| Camlock Studs | CA-D-11 |
