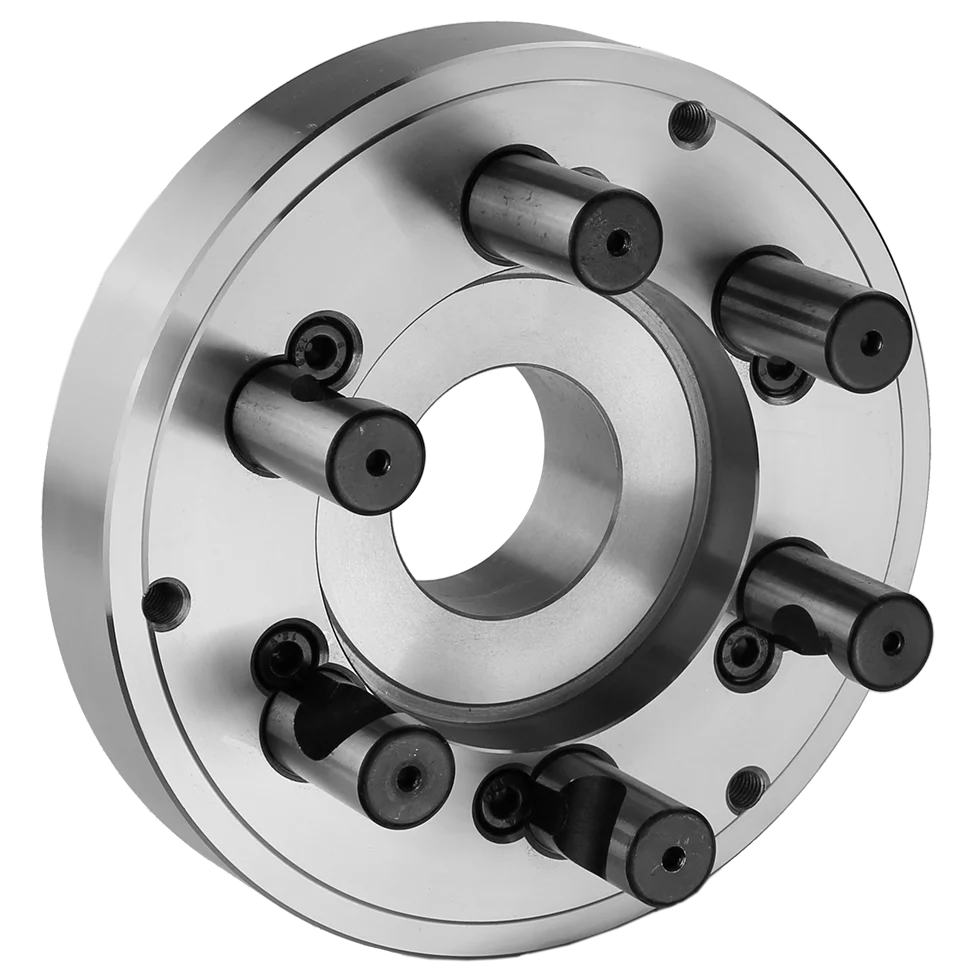

Fully-Finished Adapter, Forged Steel for 10" Independent Chucks, D1-6 Spindle Mount
Product Information
| Chuck Type | 4-Jaw Independent |
| Adapter Plate Mount | D1-6 |
| Adapter Plate Dia (in) | 7.992 |
| Chuck Dia (in) | 10 |
| Adapter Plate Thru-Hole (in) | 2.559 |
| Adapter Plate Material | Steel |
| Weight Gross (lbs) | 23.2 |
| Includes | Camlock Studs, Set Screws, Hex Key |
Product Dimensions
| Chuck Dia (in) | 10 |
| Taper Size | D1-6 |
| Adapter OD A (in) | 7.992 |
| Taper Dia D (in) | 4.1880 |
| d Hole (in) | 2.559 |
| E (in) | 4.126 |
| F (in) | 5.2500 |
| B (in) | 1.890 |
| B1 (in) | 0.3543 |
| C (in) | 5.9055 |
| Chuck Mounting Bolts M (mm) | M12 |
| QTY | 4 |
| Camlock Stud Dia (in) | 7/8 |
| QTY | 6 |
Accessories
| Chucks | |
|---|---|
| 4-Jaw Plain Back Iron Body Independent Chucks 2 PC Jaws | 1-301-1000 |
| 4-Jaw Plain Back Iron Body Independent Chucks Solid Jaws | 1-302-1000 |
| Spare Parts | |
| Camlock Studs | CA-D-06 |
