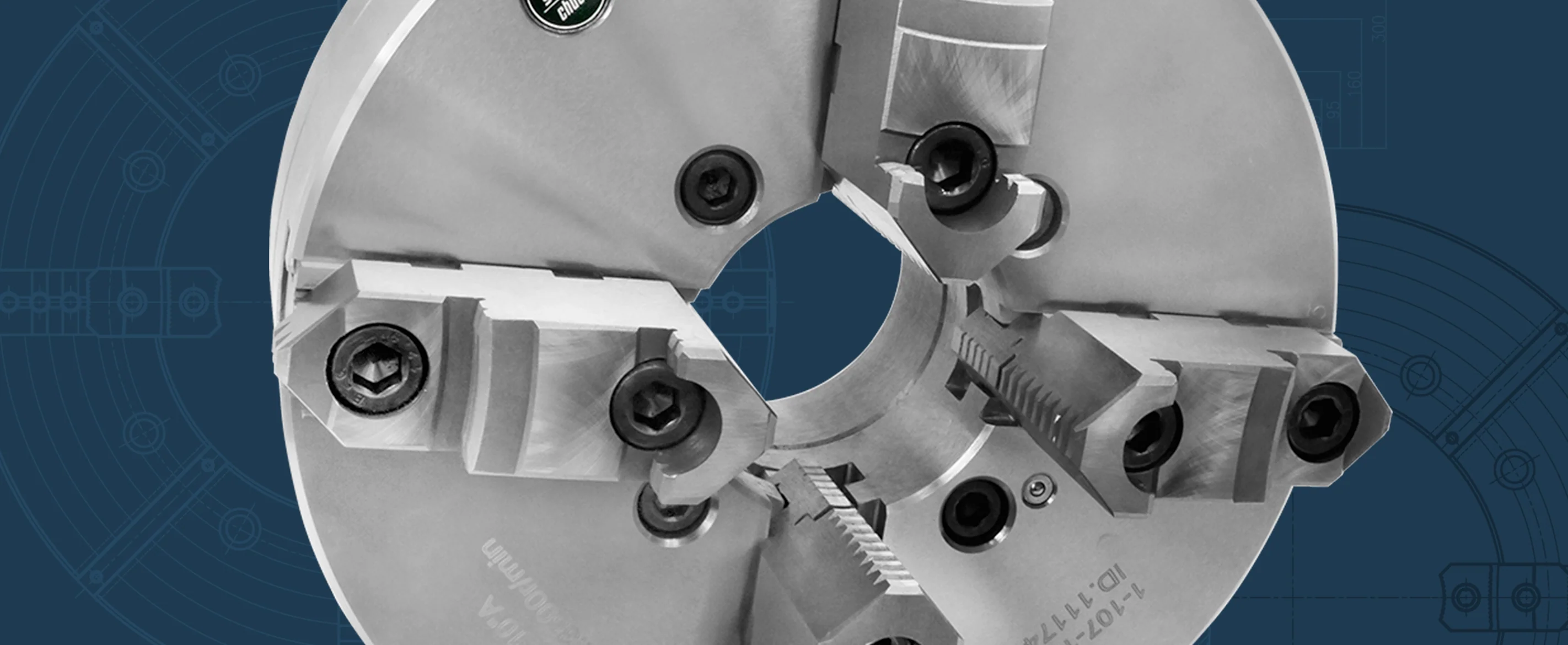

Product Information

Part Number	1-107-0800
Chuck Type	Scroll Self-Centering
Chuck Mount	Plain Back
Spindle Type	Requires Adapter
Chuck Dia (in)	8
Thru-Hole (in)	2.1654
Gripping Range Min-Max (in)	0.16 - 7.87
Chuck T.I.R (in)	0.0016
Max RPM	4000
Material	Forged Steel
Jaws	4
Jaw Type	2 PC Hard  Reversible
Weight Gross (lbs)	42.33
Includes	1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys

Product Dimensions

D (in)	8
F (in)	6.9291
E (H7) (in)	6.2992
d Hole (in)	2.1654
C (in)	0.1575
H (in)	3.071
h (in)	1.831
M Mounting Bolt Thread (mm)	M10x1.5
M Mounting Bolt Length (in)	0.98
Mounting Bolt Qty	6

Crossover to Other Brands

Bison

7-841-0800

Accessories

Jaws
Hard Top Jaws (set)	TJ-PS4-200
Hard Master Jaws (set)	MJ-PS4-200
Soft Top Jaws (set)	STJ-PS1-200
Spare Parts
Chuck Wrench (1 pc)	W-P-200
Scroll (1 pc)	SC-PS-200
Pinion (1 pc)	PI-PO-200
Pinion Sleeve (1 pc)	PS-P-200
Half Ring (1 pc)	HR-P-200
Chuck Mounting Bolts (1 pc)	MB-BS-200
Adapters
FM Machied Adapters A4	FM-200A4
FM Machied Adapters A5	FM-200A5
FM Machied Adapters A6	FM-200A6
FM Machied Adapters D4	FM-200D4
FM Machied Adapters D5	FM-200D5
FM Machied Adapters D6	FM-200D6
FM Machied Adapters L00	FM-200L00
FM Machied Adapters L0	FM-200L0
FM Machied Adapters L1	FM-200L1
SM Semi-Finished Adapters A4	SM-200A4
SM Semi-Finished Adapters A5	SM-200A5
SM Semi-Finished Adapters A6	SM-200A6
SM Semi-Finished Adapters D1-4	SM-200D4
SM Semi-Finished Adapters D1-5	SM-200D5
SM Semi-Finished Adapters D1-6	SM-200D6
SM Semi-Finished Adapters L00	SM-200L00
SM Semi-Finished Adapters L0	SM-200L0
SM Semi-Finished Adapters L1	SM-200L1
SM Semi-Finished Adapters 1-1/2-8UN-2B (T2)	SM-200T2
SM Semi-Finished Adapters 2-1/4-8UN-2B (T5)	SM-200T6
SM Semi-Finished Adapters 2-3/8-6UN-2B (T6)	SM-200T6
