4-Jaw Scroll Chuck, 25" Steel Body, Plain Back, 2 PC Hard Rev. Jaws
Product Information
| Part Number | 1-107-2500 |
| Chuck Type | Scroll Self-Centering |

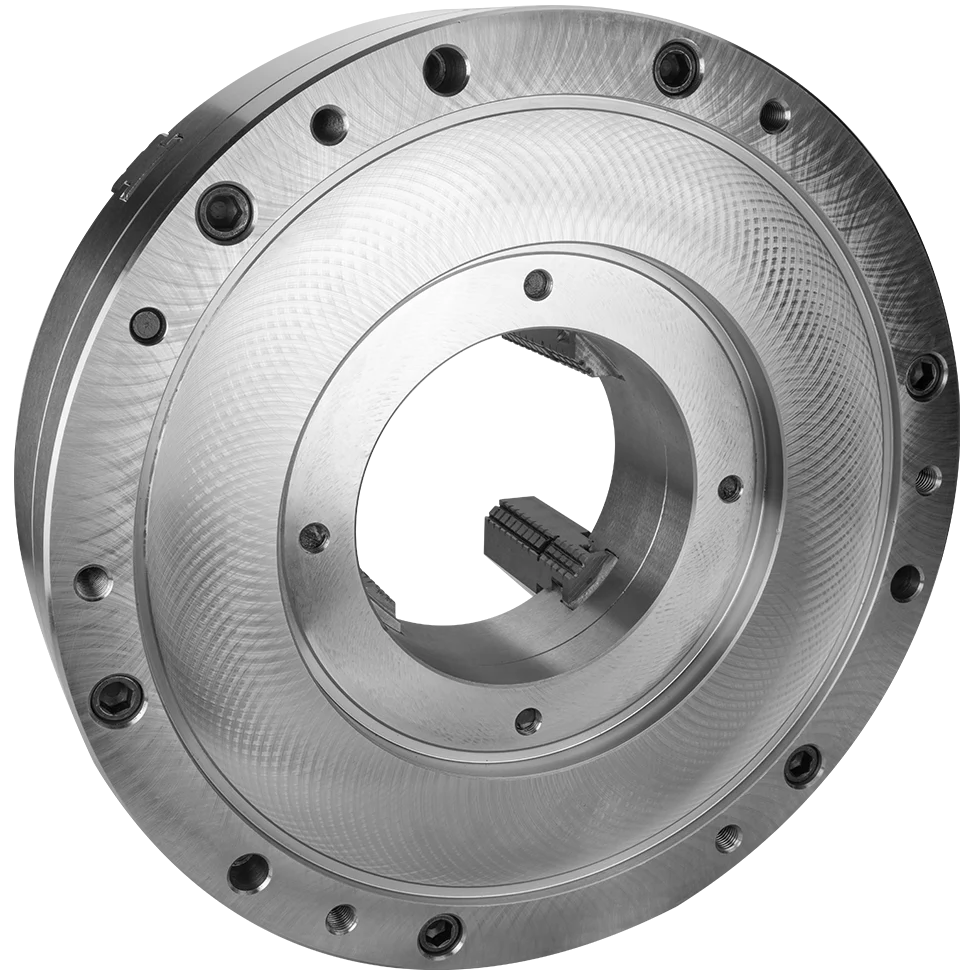

| Chuck Mount | Plain Back |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 25 |
| Thru-Hole (in) | 9.9213 |
| Gripping Range Min-Max (in) | 1.18 - 24.80 |
| Chuck T.I.R (in) | 0.004 |
| Max RPM | 1000 |
| Material | Forged Steel |
| Jaws | 4 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 595.25 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 25 |
| F (in) | 23.0709 |
| E (H7) (in) | 21.4567 |
| d Hole (in) | 9.9213 |
| C (in) | 0.2756 |
| H (in) | 5.079 |
| h (in) | 3.622 |
| M Mounting Bolt Thread (mm) | M16x2 |
| M Mounting Bolt Length (in) | 1.97 |
| Mounting Bolt Qty | 6 |
Crossover to Other Brands
| Bison | 7-841-2500 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (set) | TJ-PS4-630 |
| Hard Master Jaws (set) | MJ-PS4-630 |
| Soft Top Jaws (set) | STJ-PS1-630 |
| Spare Parts | |
| Chuck Wrench (1 pc) | W-P-630 |
| Scroll (1 pc) | SC-PS-630 |
| Pinion (1 pc) | PI-PO-630 |
| Pinion Sleeve (1 pc) | PS-P-630 |
| Half Ring (1 pc) | HR-P-630 |
| Chuck Mounting Bolts (1 pc) | MB-BS-630 |
| Adapters | |
| FM Machied Adapters A8 | FM-630A8 |
| FM Machied Adapters A11 | FM-630A11 |
| FM Machied Adapters A15 | FM-630A15 |
| FM Machied Adapters D8 | FM-630D8 |
| FM Machied Adapters D11 | FM-630D11 |
| FM Machied Adapters D15 | FM-630D15 |
| SM Semi-Finished Adapters A8 | SM-630A8 |
| SM Semi-Finished Adapters A11 | SM-630A11 |
| SM Semi-Finished Adapters A15 | SM-630A15 |
| SM Semi-Finished Adapters D1-8 | SM-630D8 |
| SM Semi-Finished Adapters D1-11 | SM-630D11 |
| SM Semi-Finished Adapters D1-15 | SM-630D15 |
