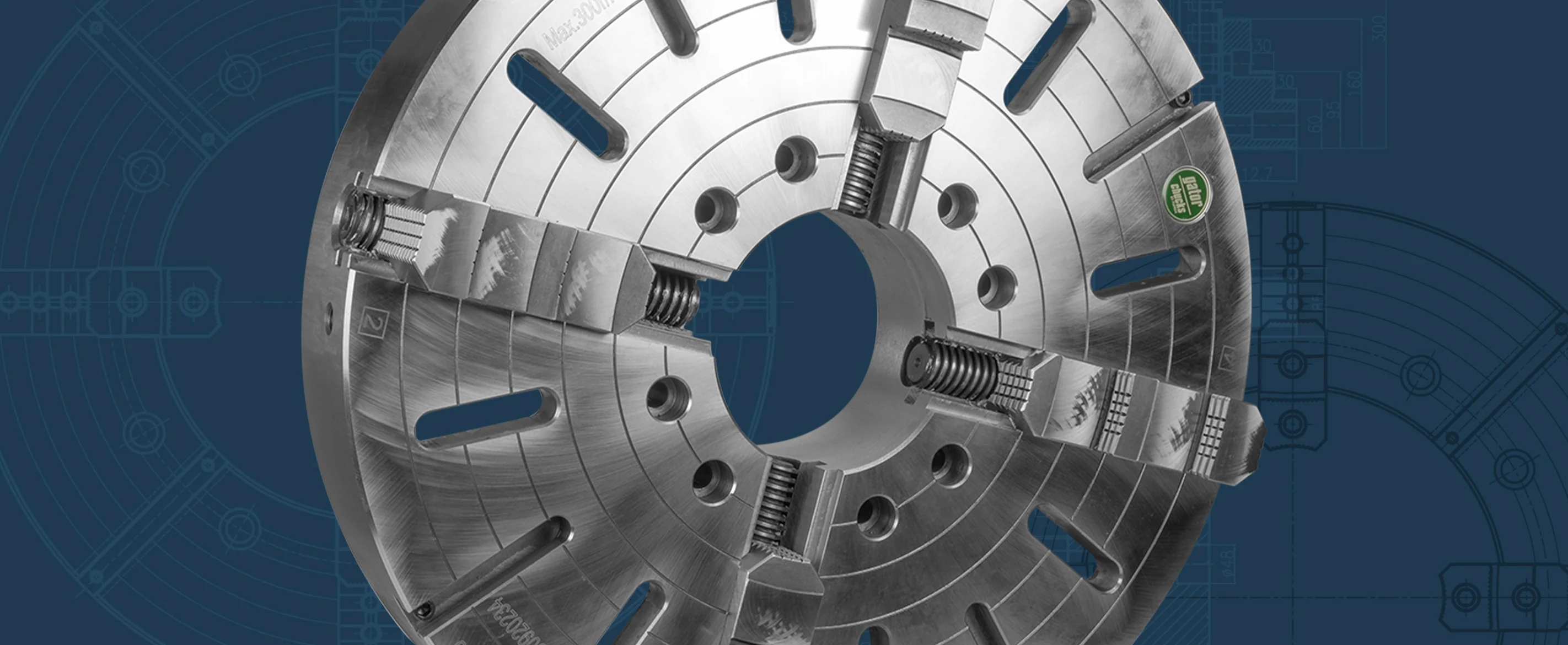

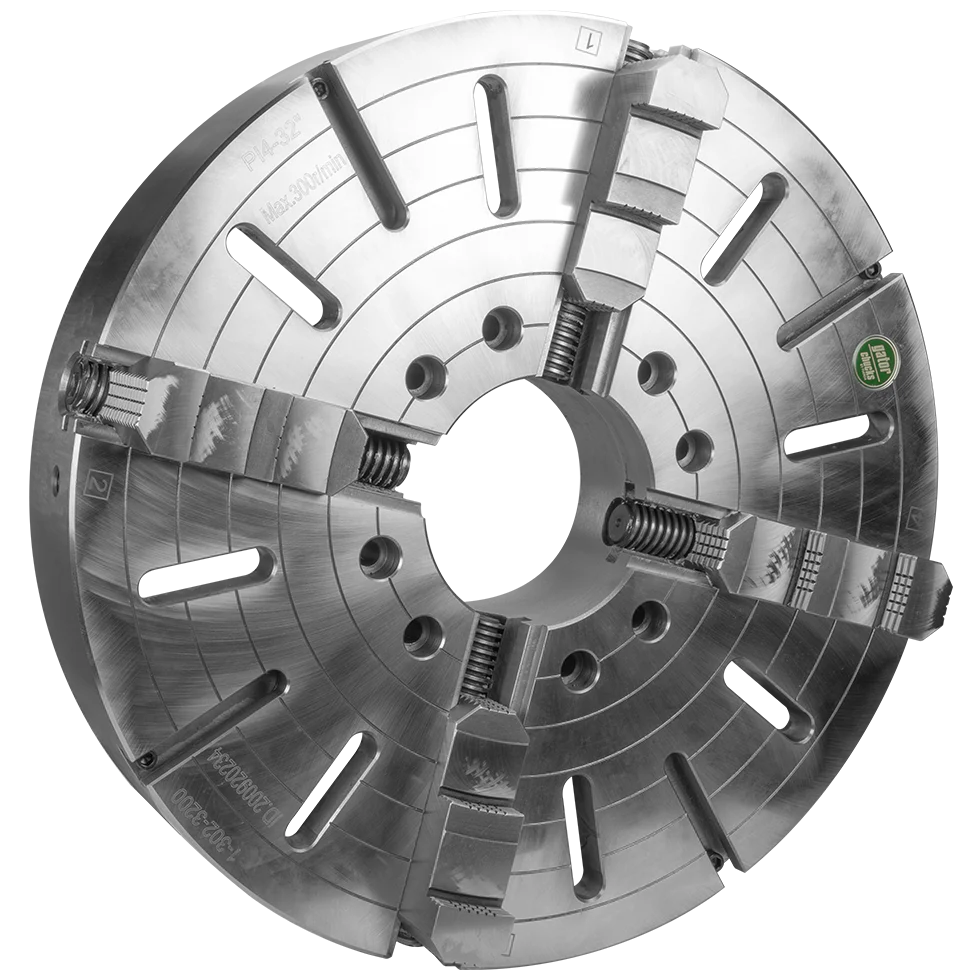

4-Jaw Independent, 50" Cast Steel Body, Plain Back, Hard Solid Jaws
Product Information
| Chuck Type | Independent |

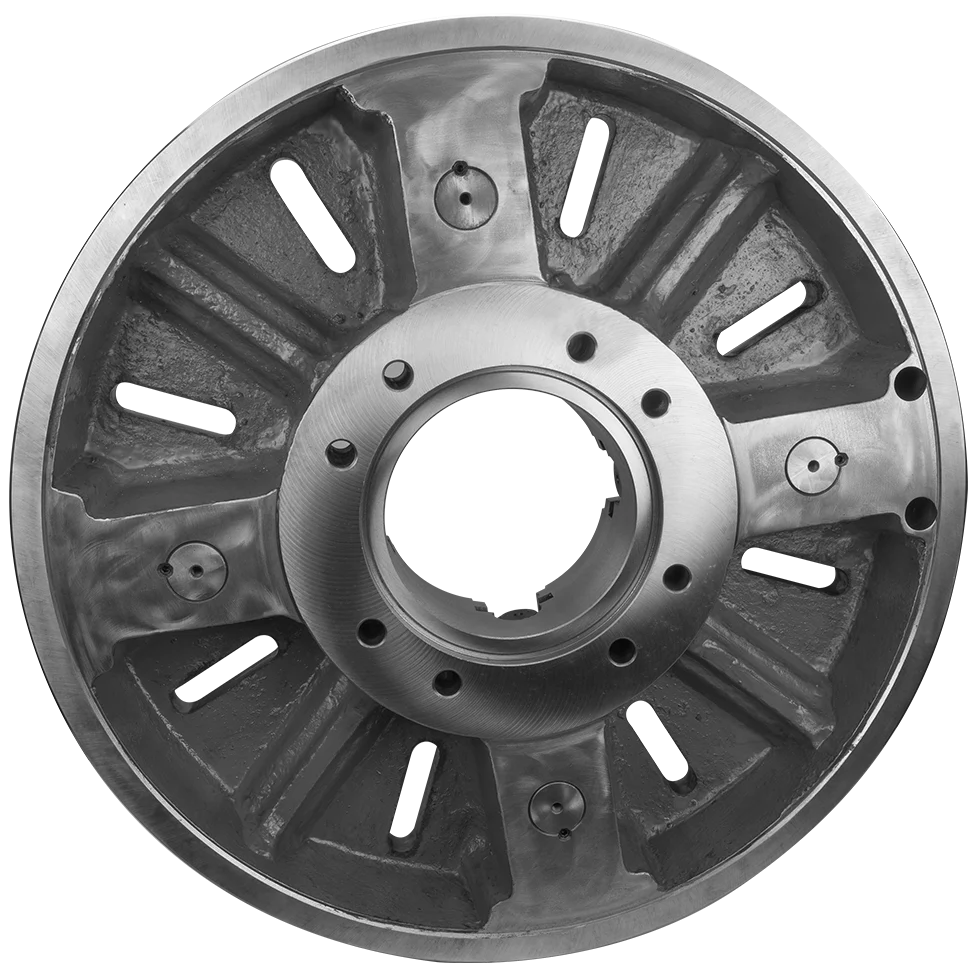

| Chuck Mount | Plain Back |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 50 |
| Thru-Hole (in) | 7.087 |
| Gripping Range Min-Max (in) | 6.69 - 49.21 |
| Chuck T.I.R (in) | 0.0071 |
| Max RPM | 150 |
| Material | Cast Steel |
| Jaws | 4 |
| Jaw Type | Hard Solid Reversible |
| Weight Gross (lbs) | 2083.37 |
| Includes | 1 Set of Hard Solid Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 50 |
| F (in) | 19.685 |
| E (H7) (in) | 15.748 |
| d Hole (in) | 7.087 |
| C (in) | 0.591 |
| H (in) | 6.496 |
| h (in) | 3.578 |
| M Mounting Bolt Thread (mm) | M20 |
| M Mounting Bolt Length (in) | 6.6929 |
| Mounting Bolt Qty | 8 |
Accessories
| Jaws | |
|---|---|
| Hard Solid Reversible Jaws (Set) | RJ-PI-1250 |
| Hard Top Jaws (Set) | TJ-PI-1250 |
| Hard Master Jaws (Set) | MJ-PI-1250 |
| Spare Parts | |

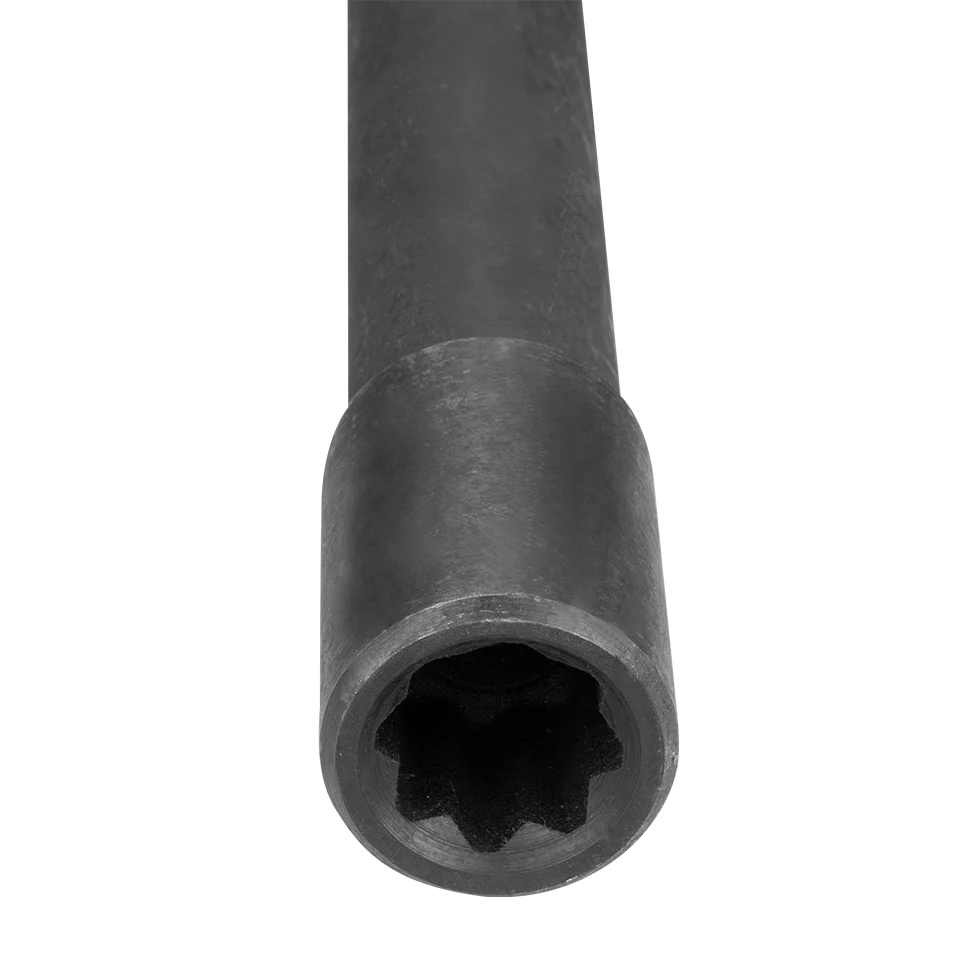

| Chuck Wrench (1Pc) | W-PI-1250 |
| Operating Screw (1Pc) | OS-PI-1250 |
| Thrust Bearing (1Pc) | TB-PI-1250 |
| Chuck Mounting Bolts (1Pc) | MB-BI-1250 |
