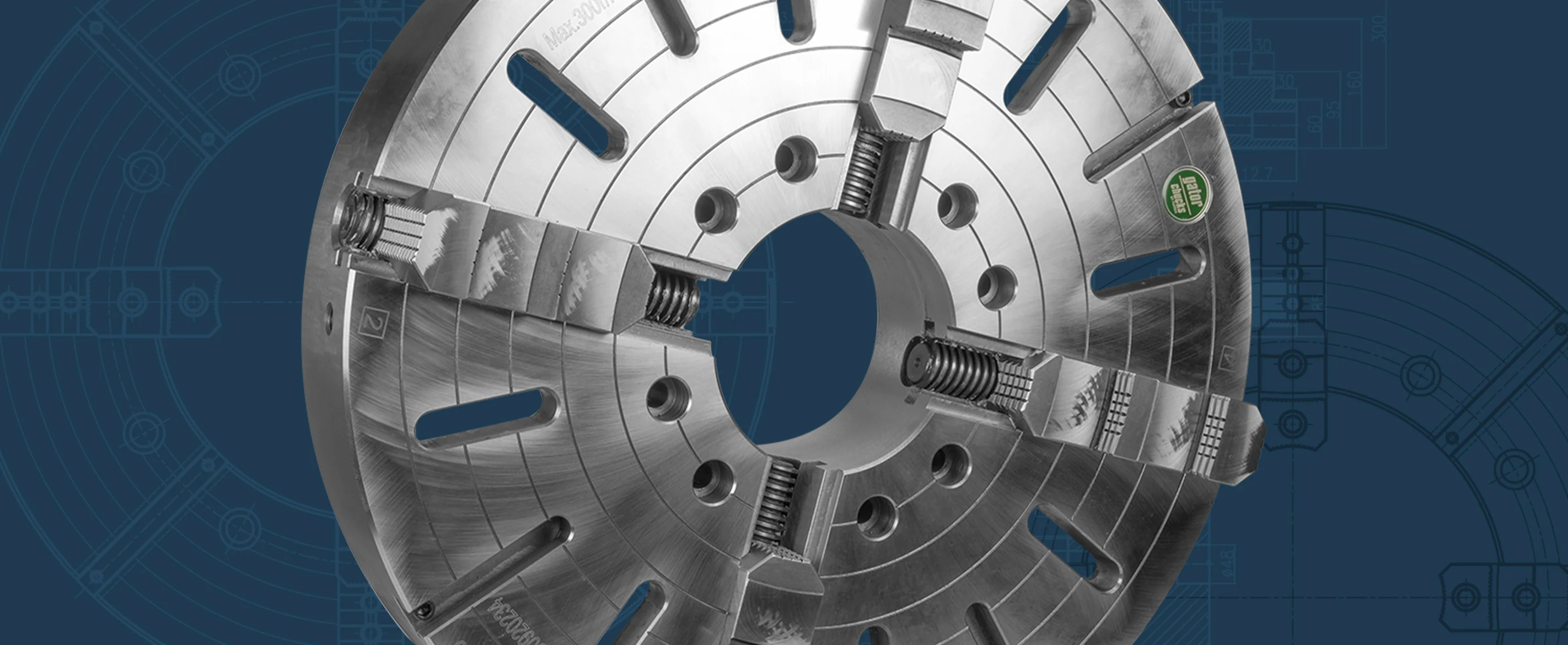

4-Jaw Independent, 32" Cast-Iron Body, Plain Back, Hard Solid Jaws
Product Information
| Chuck Type | Independent |
| Chuck Mount | Plain Back |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 31-1/2 |
| Thru-Hole (in) | 8.268 |
| Gripping Range Min-Max (in) | 1.97 - 31.50 |
| Chuck T.I.R (in) | 0.0059 |
| Max RPM | 300 |
| Material | Cast Iron |
| Jaws | 4 |
| Jaw Type | Hard Solid Reversible |
| Weight Gross (lbs) | 804.69 |
| Includes | 1 Set of Hard Solid Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 31-1/2 |
| F (in) | 11.811 |
| E (H7) (in) | 9.843 |
| d Hole (in) | 8.268 |
| C (in) | 0.472 |
| H (in) | 5.315 |
| h (in) | 2.953 |
| M Mounting Bolt Thread (mm) | M20 |
| M Mounting Bolt Length (in) | 5.9055 |
| Mounting Bolt Qty | 8 |
Crossover to Other Brands
| Bison | 7-850-3200 |
Accessories
| Jaws | |
|---|---|
| Hard Solid Reversible Jaws (Set) | RJ-PI-800 |
| Hard Top Jaws (Set) | TJ-PI-800 |
| Hard Master Jaws (Set) | MJ-PI-800 |
| Soft Top Jaws (1pc) | STJ-PS1-630 |
| Spare Parts | |
| Chuck Wrench (1Pc) | W-PI-800 |
| Operating Screw (1Pc) | OS-PI-800 |
| Thrust Bearing (1Pc) | TB-PI-800 |
| Chuck Mounting Bolts (1Pc) | MB-BI-800 |
| Adapters | |
| FLI Fully Machined Adapters A15 | FLI-800A15 |
| FM Machined Adapters L2 | FLI-800L2 |
| FM Machined Adapters L3 | FLI-800L3 |
