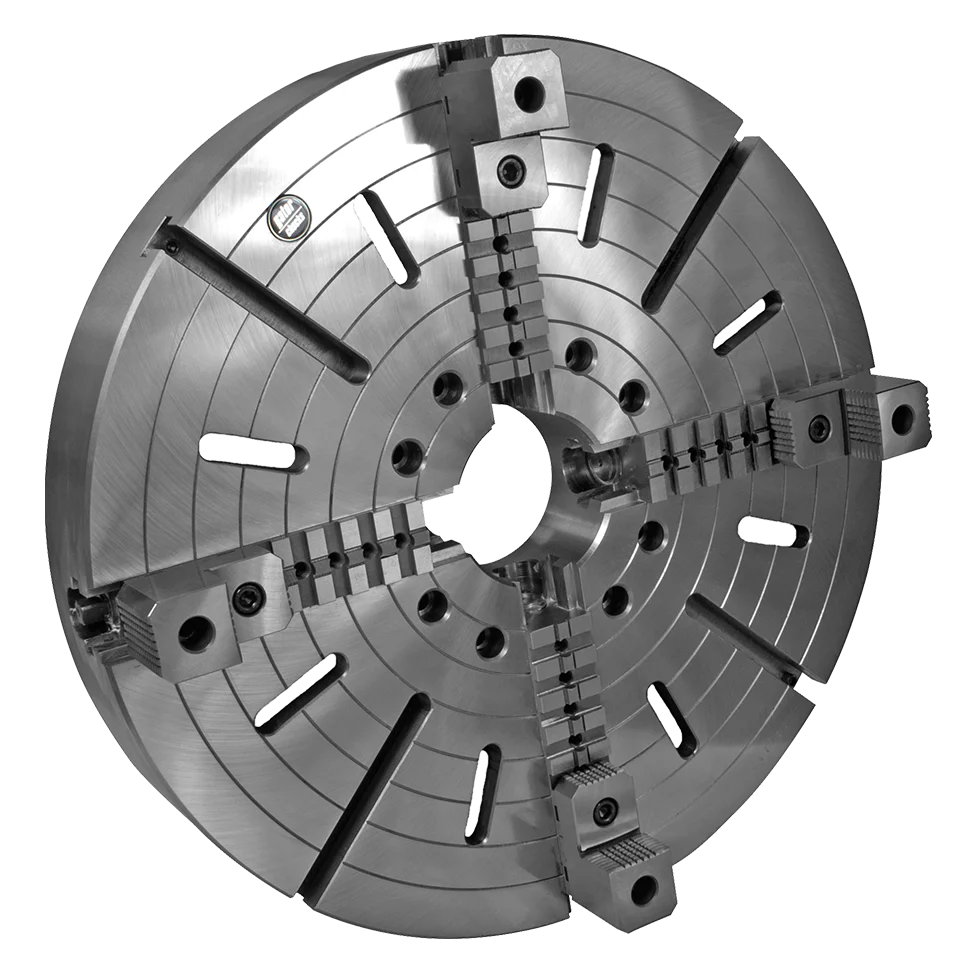

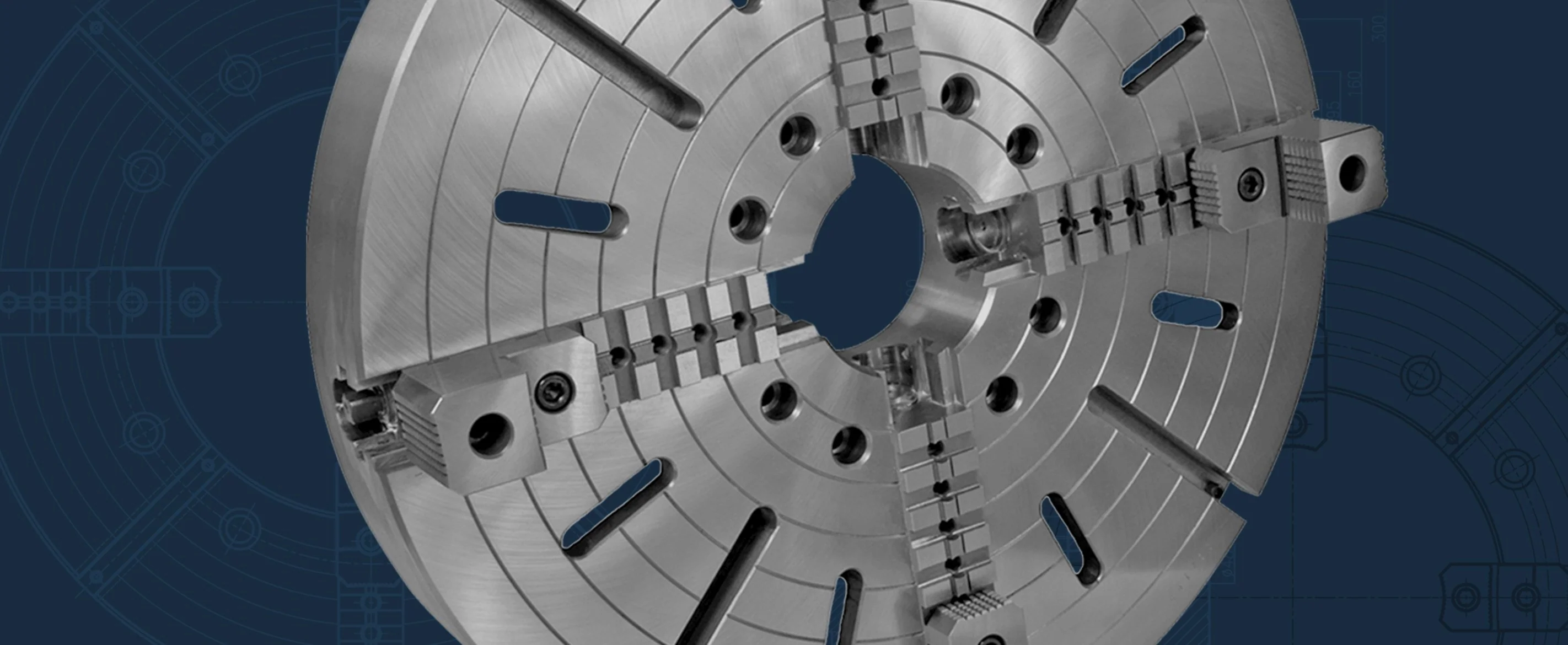

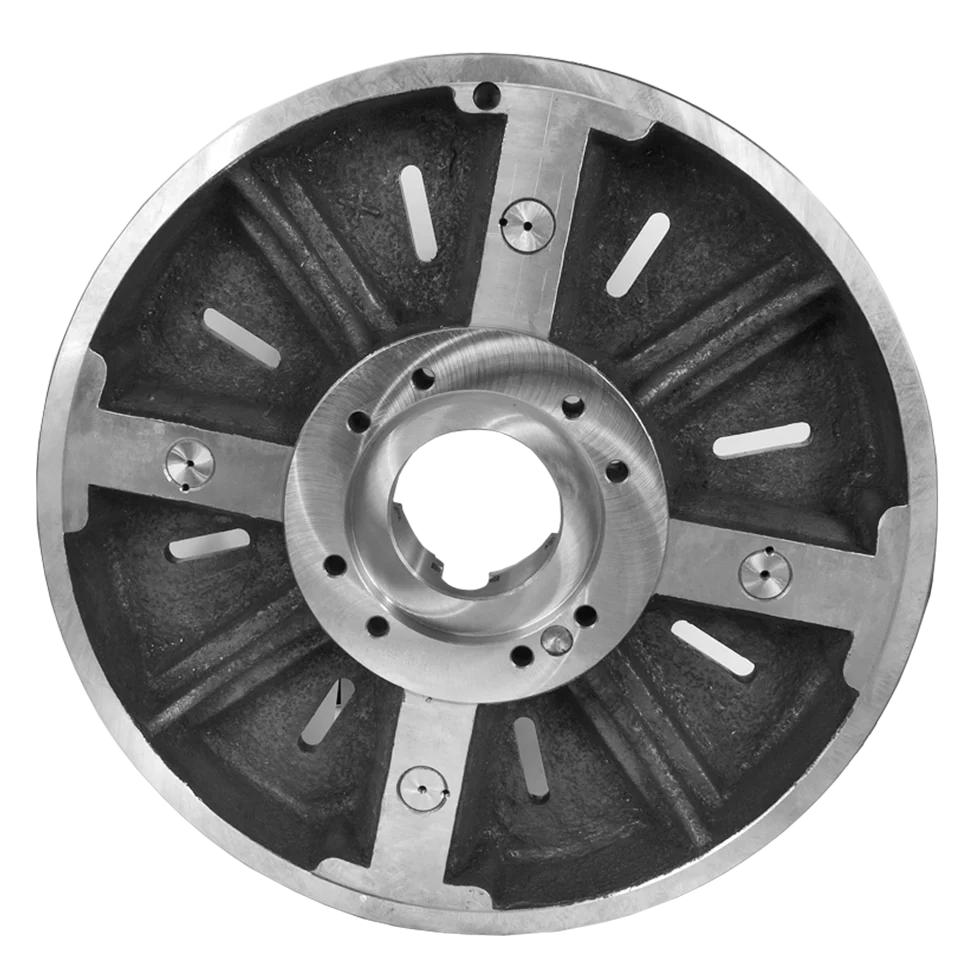

4-Jaw Independent, 40" Cast Steel Body, Plain Back, 2 PC Hard Rev. Jaws
Product Information
| Chuck Type | Independent |
| Chuck Mount | Plain Back |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 40 |
| Thru-Hole (in) | 10.236 |
| Gripping Range Min-Max (in) | 6.69 - 39.37 |
| Chuck T.I.R (in) | 0.0071 |
| Max RPM | 200 |
| Material | Cast Steel |
| Jaws | 4 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 1286.18 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 40 |
| F (in) | 14.567 |
| E (H7) (in) | 12.598 |
| d Hole (in) | 10.236 |
| C (in) | 0.591 |
| H (in) | 5.906 |
| h (in) | 4.685 |
| M Mounting Bolt Thread (mm) | M20 |
| M Mounting Bolt Length (in) | 6.2992 |
| Mounting Bolt Qty | 8 |
Accessories
| Jaws | |
|---|---|
| Hard Solid Reversible Jaws (Set) | RJ-PI-1000 |
| Hard Top Jaws (Set) | TJ-PI-1000 |
| Hard Master Jaws (Set) | MJ-PI-1000 |
| Spare Parts | |

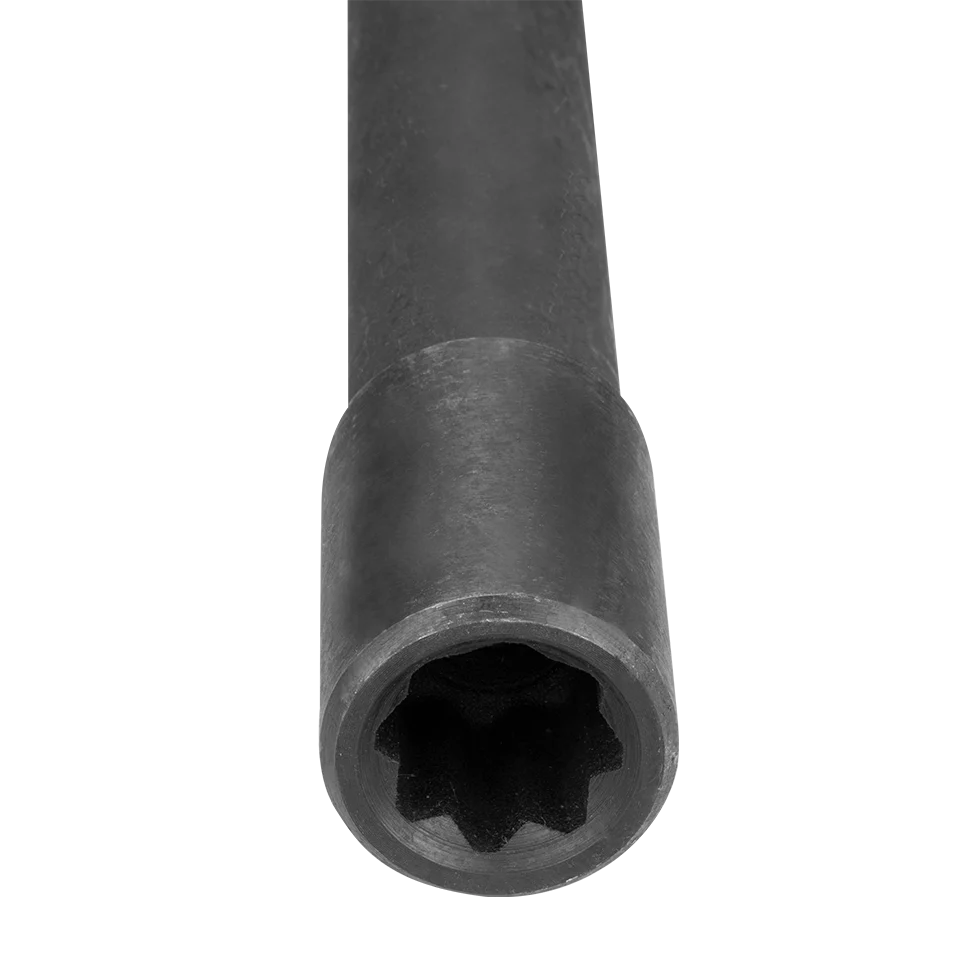

| Chuck Wrench (1Pc) | W-PI-1000 |
| Operating Screw (1Pc) | OS-PI-1000 |
| Thrust Bearing (1Pc) | TB-PI-1000 |
| Chuck Mounting Bolts (1Pc) | MB-BI-1000 |
