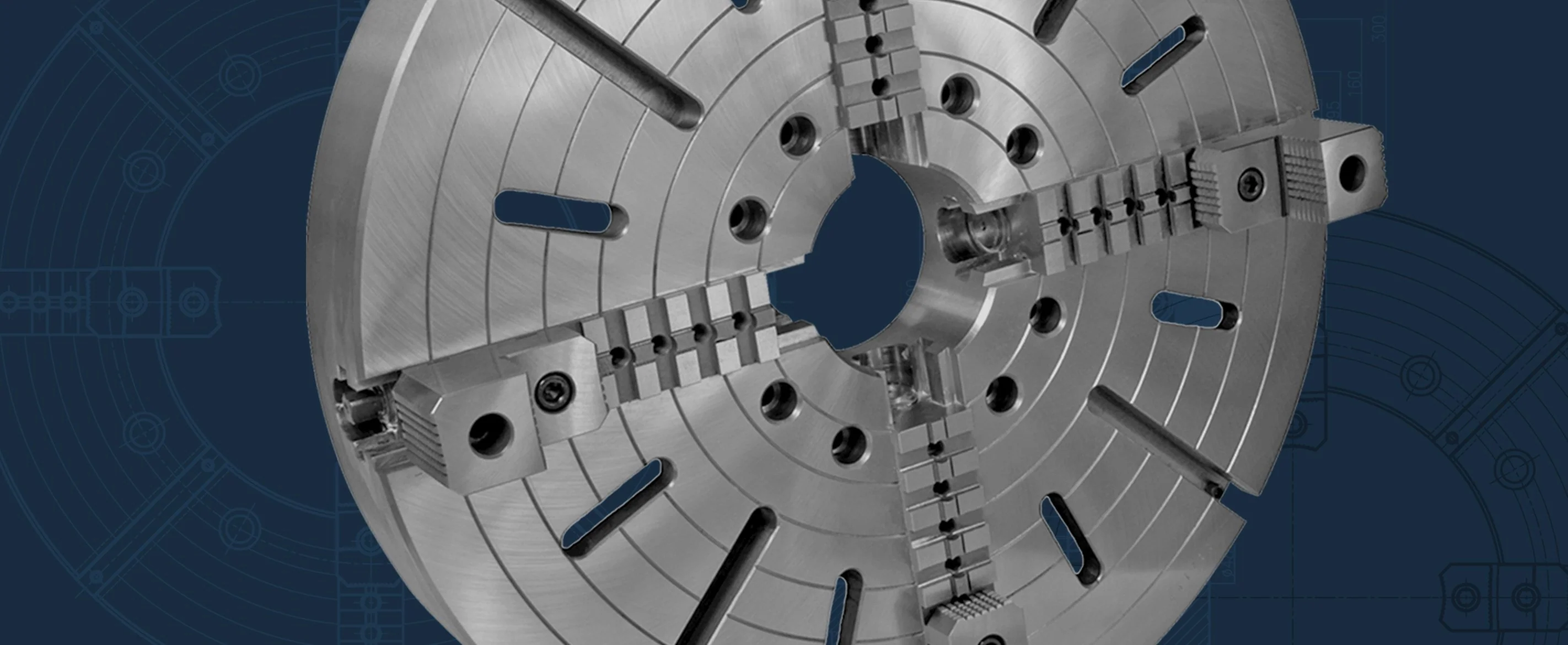

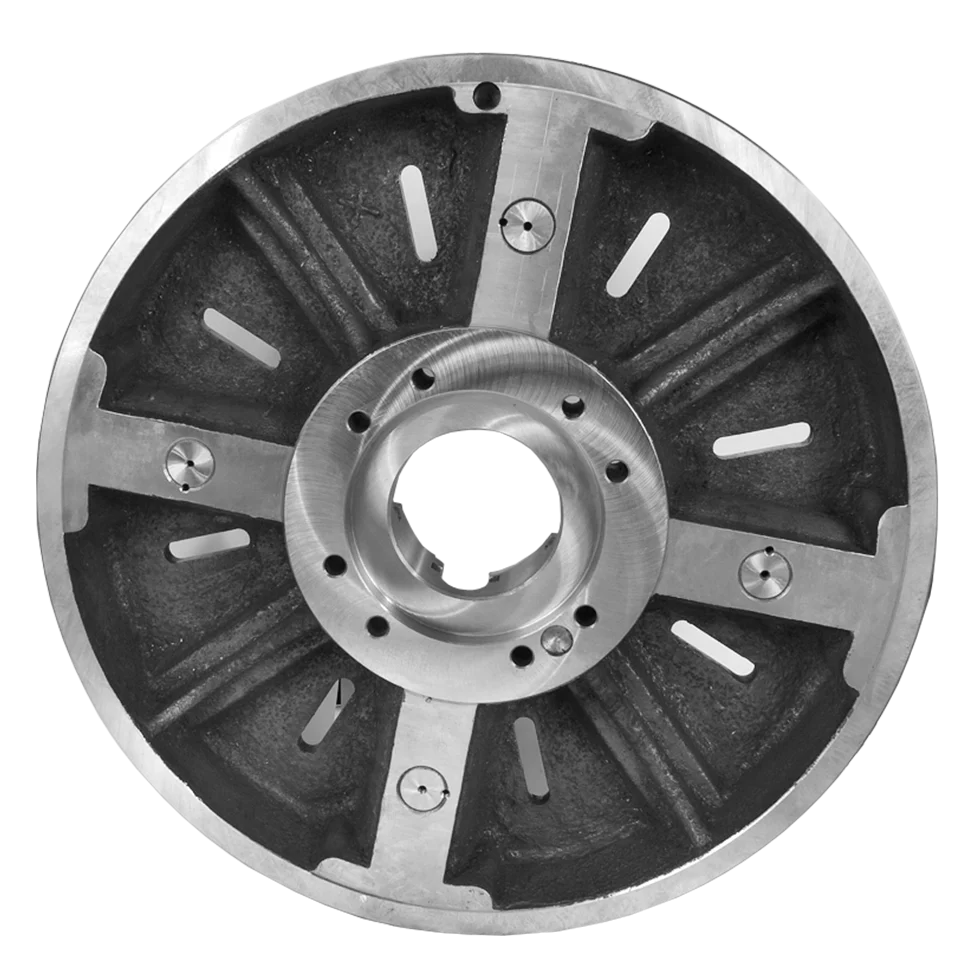

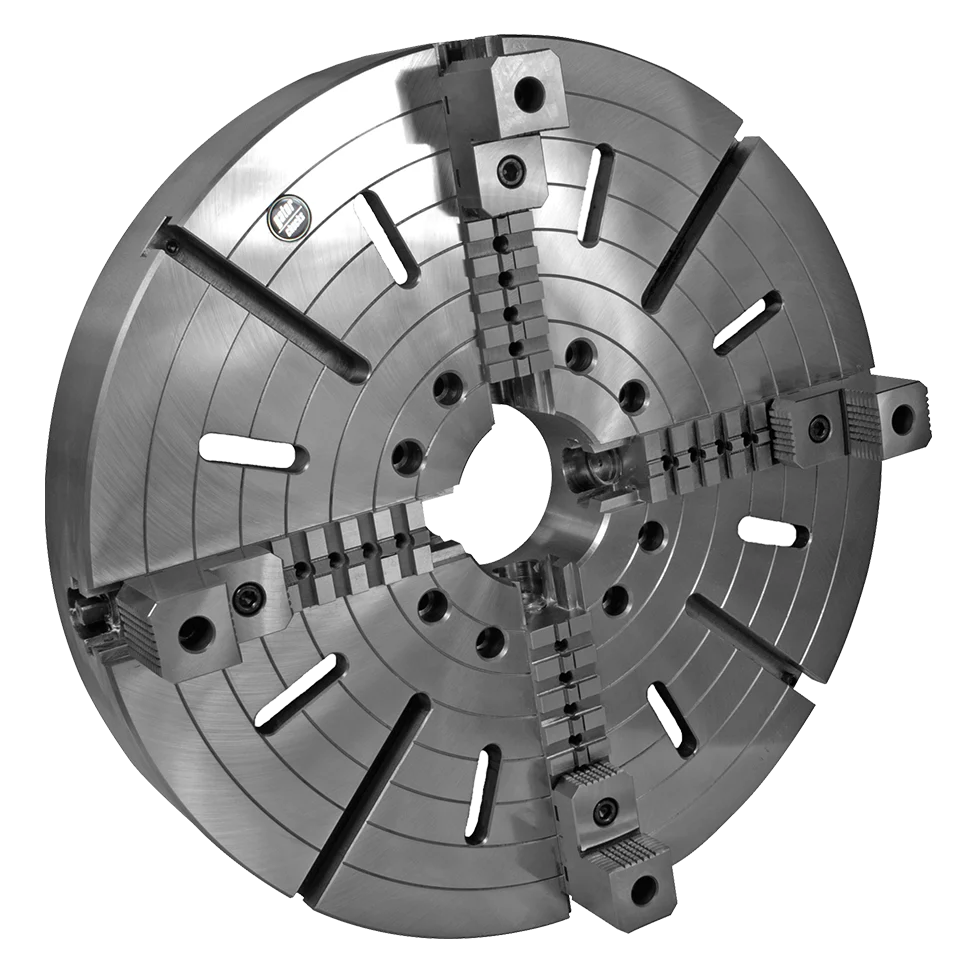

4-Jaw Independent, 40" Cast Steel Body, Direct Mount A2-15, 2 PC Hard Rev. Jaws
Product Information
| Chuck Type | Independent |
| Chuck Mount | A2-15 |
| Spindle Type | A1/A2-15 |
| Chuck Dia (in) | 40 |
| Thru-Hole (in) | 7.087 |
| Gripping Range Min-Max (in) | 6.69 - 39.37 |
| Chuck T.I.R (in) | 0.0071 |
| Max RPM | 200 |
| Material | Cast Steel |
| Jaws | 4 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 1344.82 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Chuck Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 40 |
| Taper Size | A2-15 |
| B (in) | 13.000 |
| G (in) | 11.251 |
| d Hole (in) | 7.087 |
| C (in) | 0.827 |
| H (in) | 5.906 |
| h (in) | 4.6850 |
| M Mounting Bolt Thread (in) | 7/8"-9 |
| Mounting Bolt Length (in) | 7-3/32 |
| Mounting Bolt Qty | 8 |
Accessories
| Jaws | |
|---|---|
| Hard Solid Reversible Jaws (Set) | RJ-PI-1000 |
| Hard Top Jaws (Set) | TJ-PI-1000 |
| Hard Master Jaws (Set) | MJ-PI-1000 |
| Spare Parts | |

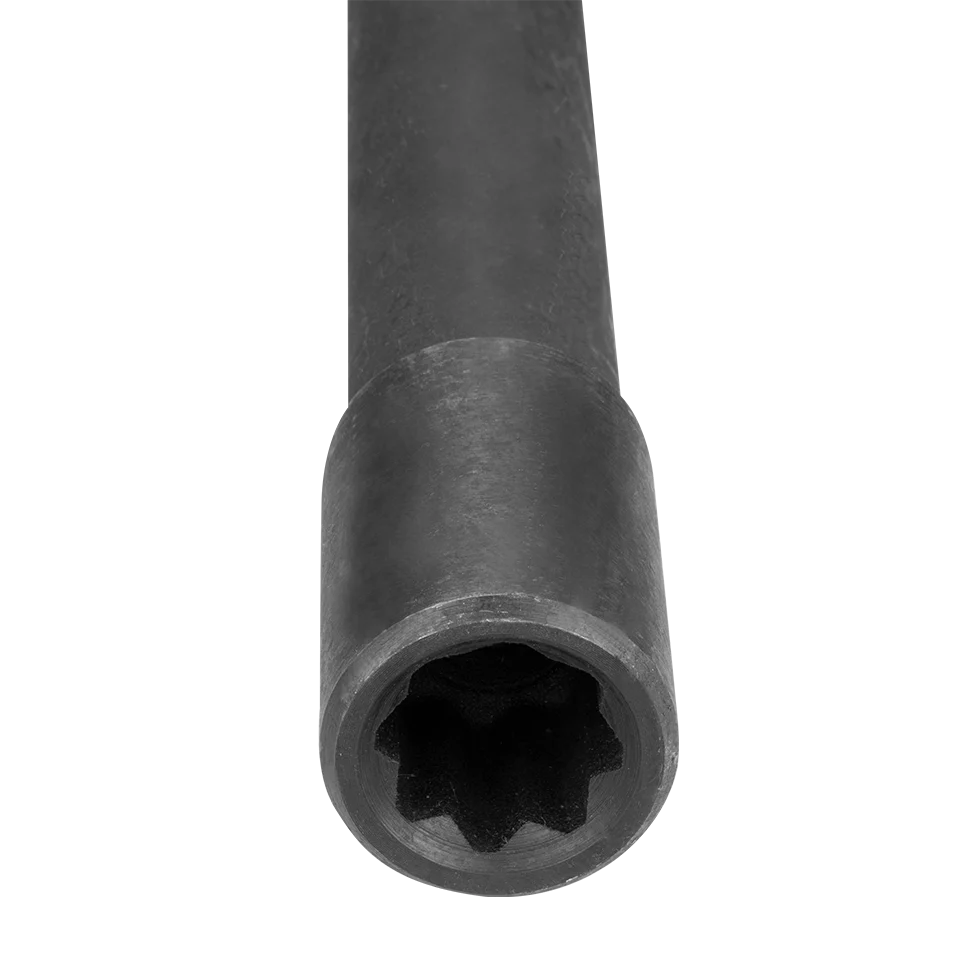

| Chuck Wrench (1Pc) | W-PI-1000 |
| Operating Screw (1Pc) | OS-PI-1000 |
| Thrust Bearing (1Pc) | TB-PI-1000 |
| Chuck Mounting Bolts (1Pc) | BA-P-40-15 |
