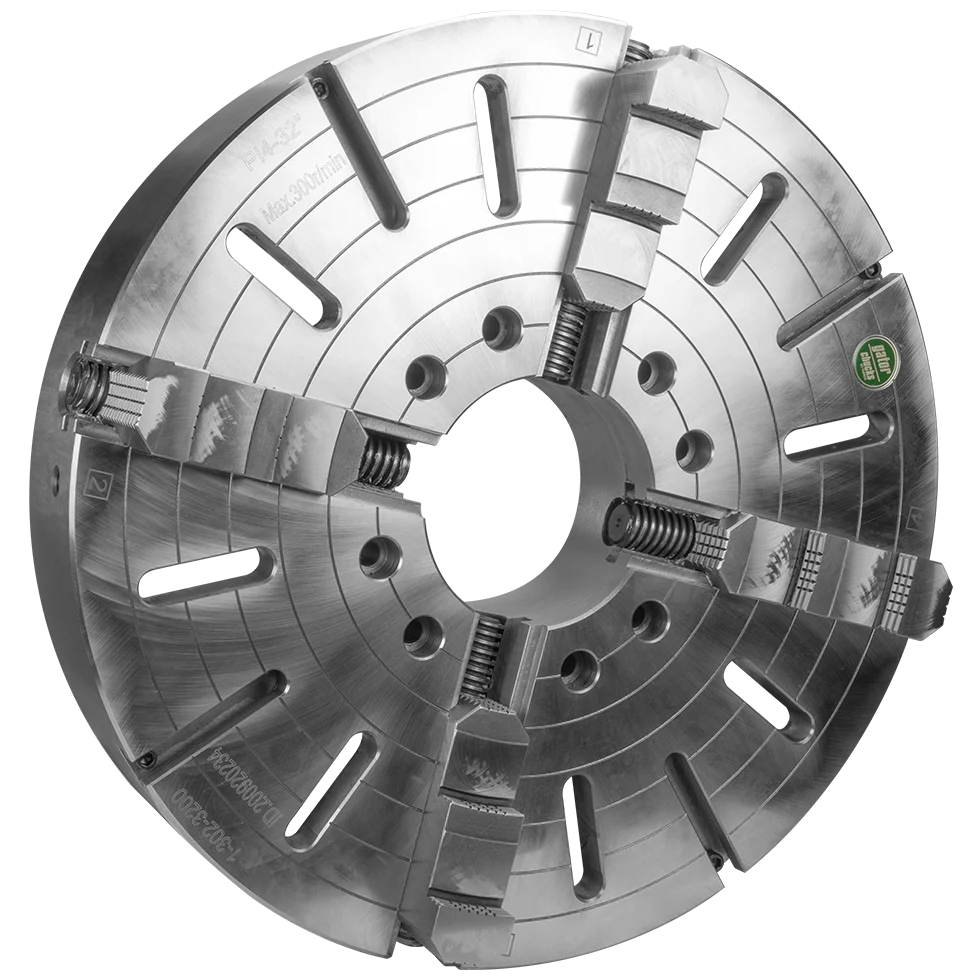

4-Jaw Independent, 40" Cast Steel Body, Direct Mount A2-11, Hard Solid Jaws
Product Information
| Chuck Type | Independent |
| Chuck Mount | A2-11 |
| Spindle Type | A1/A2-11 |
| Chuck Dia (in) | 40 |
| Thru-Hole (in) | 7.087 |
| Gripping Range Min-Max (in) | 6.69 - 39.37 |
| Chuck T.I.R (in) | 0.0071 |
| Max RPM | 200 |
| Material | Cast Steel |
| Jaws | 4 |
| Jaw Type | Hard Solid Reversible |
| Weight Gross (lbs) | 1115.54 |
| Includes | 1 Set of Hard Solid Reversible Jaws, Chuck Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 40 |
| Taper Size | A2-11 |
| B (in) | 9.252 |
| G (in) | 7.751 |
| d Hole (in) | 7.087 |
| C (in) | 0.787 |
| H (in) | 5.906 |
| h1 (in) | 3.582 |
| M Mounting Bolt Thread (in) | 3/4"-10 |
| Mounting Bolt Length (in) | 7-3/32 |
| Mounting Bolt Qty | 8 |
Accessories
| Jaws | |
|---|---|
| Hard Solid Reversible Jaws (Set) | RJ-PI-1000 |
| Hard Top Jaws (Set) | TJ-PI-1000 |
| Hard Master Jaws (Set) | MJ-PI-1000 |
| Spare Parts | |

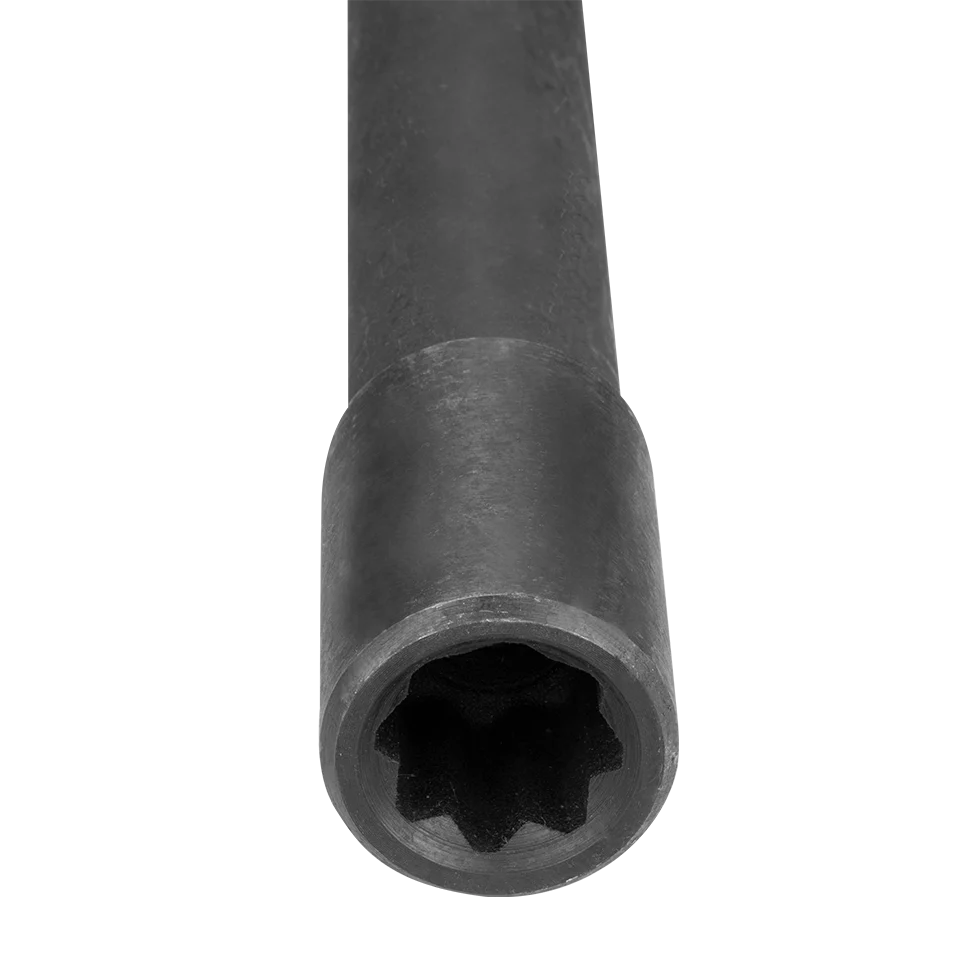

| Chuck Wrench (1Pc) | W-PI-1000 |
| Operating Screw (1Pc) | OS-PI-1000 |
| Thrust Bearing (1Pc) | TB-PI-1000 |
| Chuck Mounting Bolts (1Pc) | BA-P-40-11 |
