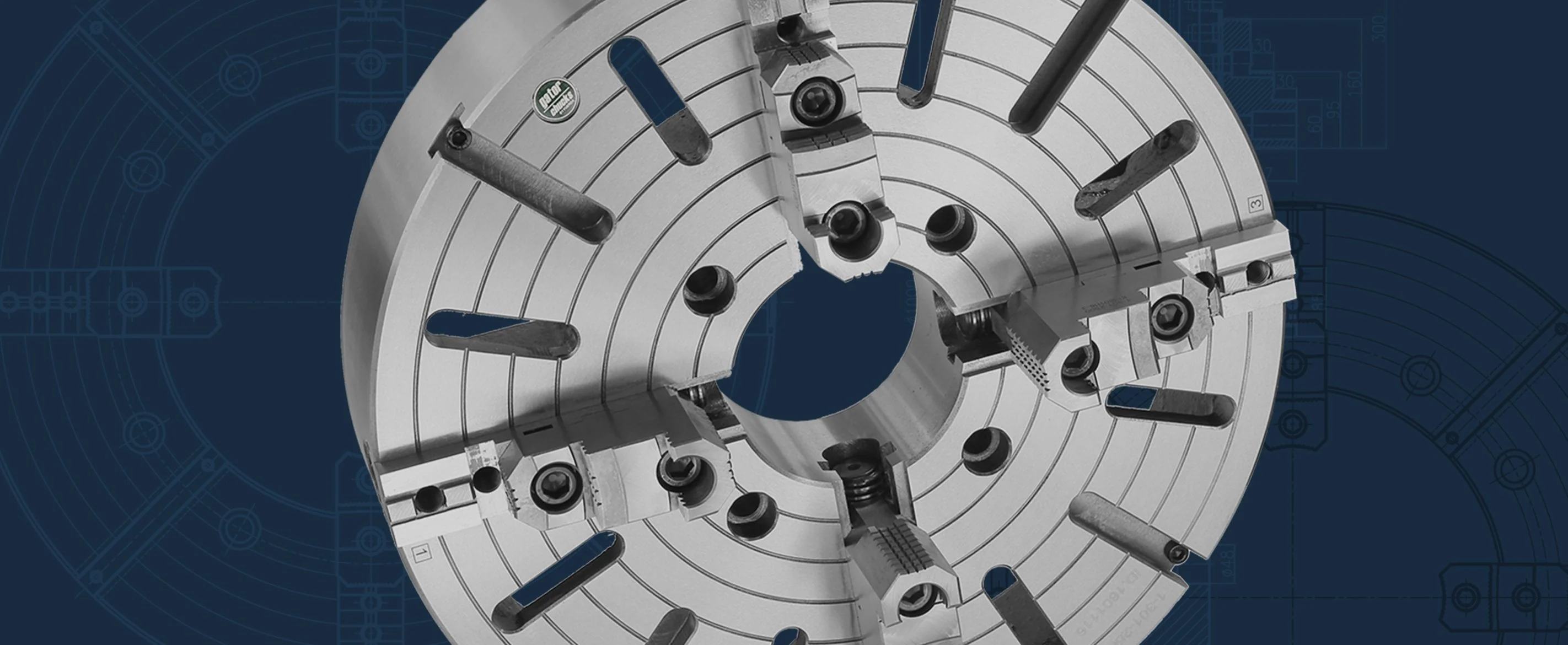

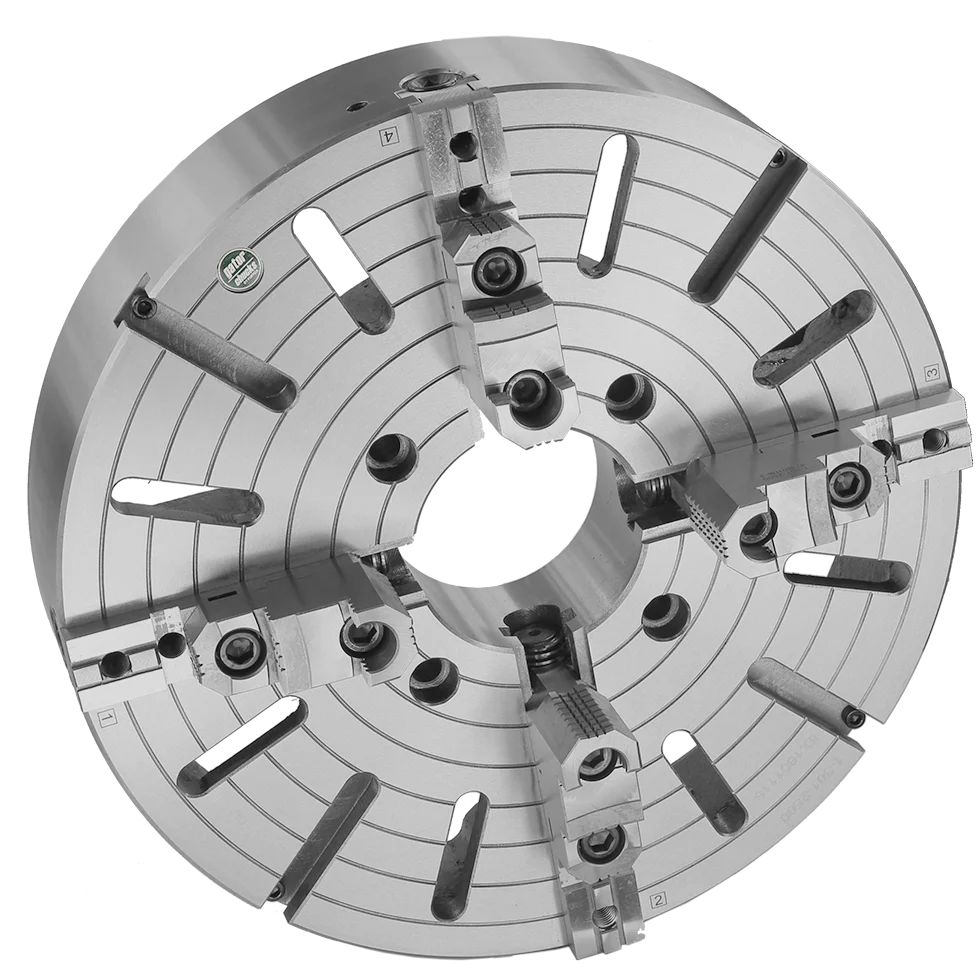

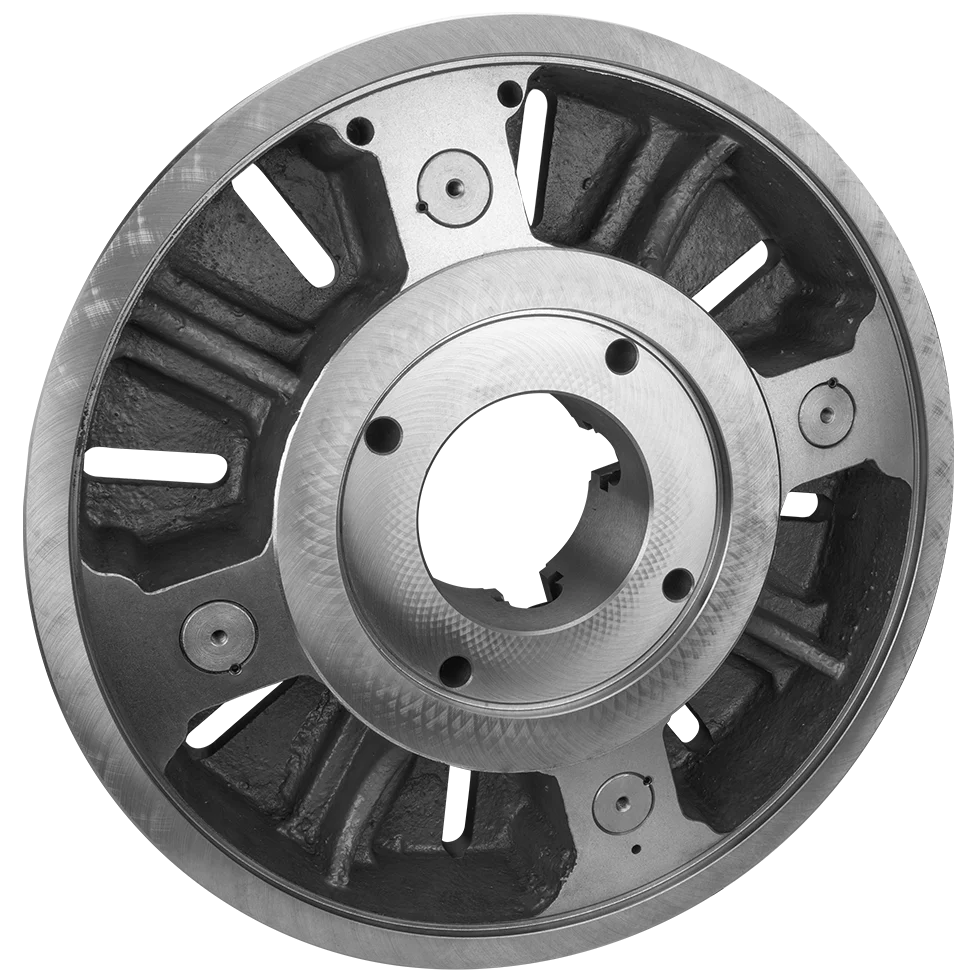

4-Jaw Independent, 25" Cast-Iron Body, Plain Back, 2 PC Hard Rev. Jaws
Product Information
| Chuck Type | Independent |
| Chuck Mount | Plain Back |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 25 |
| Thru-Hole (in) | 6.299 |
| Gripping Range Min-Max (in) | 1.97 - 24.80 |
| Chuck T.I.R (in) | 0.0040 |
| Max RPM | 400 |
| Material | Cast Iron |
| Jaws | 4 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 485.02 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 25 |
| F (in) | 9.252 |
| E (H7) (in) | 10.63 |
| d Hole (in) | 6.299 |
| C (in) | 0.472 |
| H (in) | 5.512 |
| h (in) | 3.851 |
| M Mounting Bolt Thread (mm) | M20 |
| M Mounting Bolt Length (in) | 4.7244 |
| Mounting Bolt Qty | 4 |
Accessories
| Jaws | |
|---|---|
| Hard Solid Reversible Jaws (Set) | RJ-PI-630 |
| Hard Top Jaws (Set) | TJ-PI-630 |
| Hard Master Jaws (Set) | MJ-PI-630 |
| Soft Top Jaws (1pc) | STJ-PS1-630 |
| Spare Parts | |
| Chuck Wrench (1Pc) | W-PI-630 |
| Operating Screw (1Pc) | OS-PI-630 |
| Thrust Bearing (1Pc) | TB-PI-630 |
| Chuck Mounting Bolts (1Pc) | MB-BI-630 |
| Adapters | |
| FLI Fully Machined Adapters A8 | FLI-500A8 |
| FLI Fully Machined Adapters A11 | FLI-500A11 |
| FLI Fully Machined Adapters D8 | FLI-500D8 |
| FLI Fully Machined Adapters D11 | FLI-500D11 |
