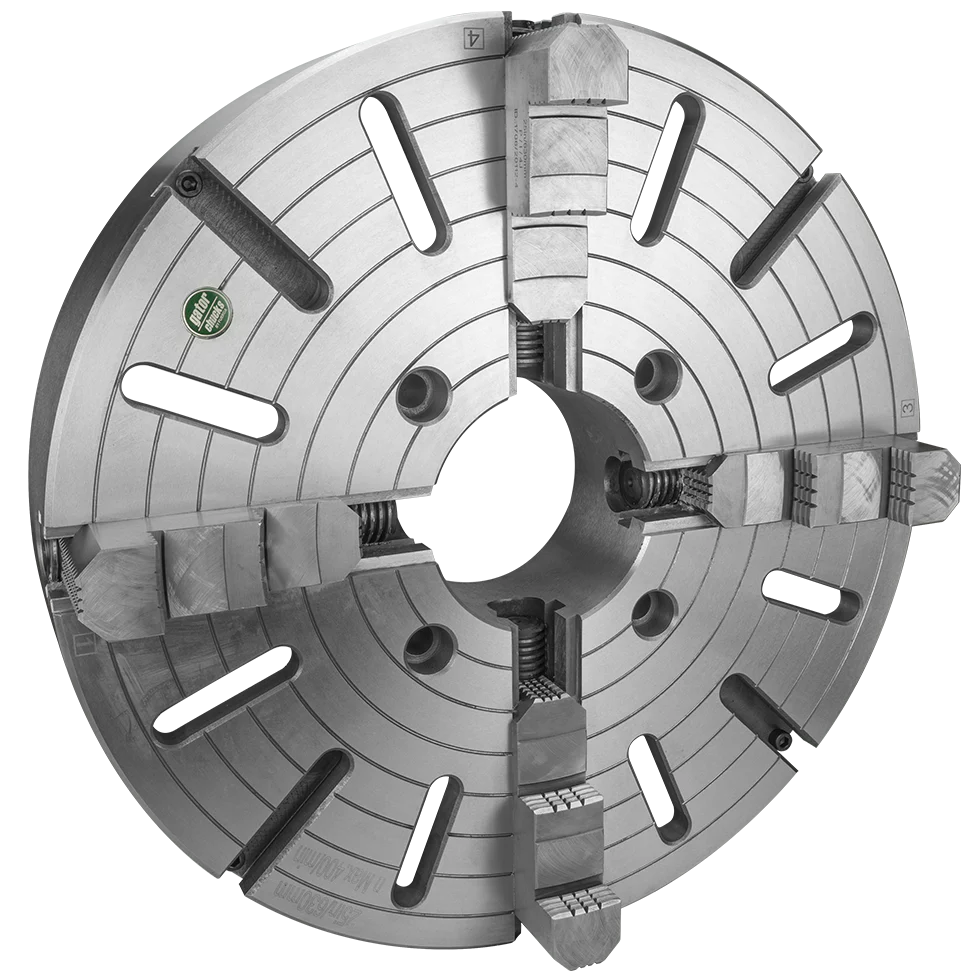

4-Jaw Independent, 16" Cast-Iron Body, Plain Back, Hard Solid Jaws
Product Information
| Part Number | 1-302-1600 |
| Chuck Type | Independent |
| Chuck Mount | Plain Back |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 15-3/4 |
| Thru-Hole (in) | 3.937 |
| Gripping Range Min-Max (in) | .787 - 15.75 |
| Chuck T.I.R (in) | 0.0024 |
| Max RPM | 800 |
| Material | Cast Iron |
| Jaws | 4 |
| Jaw Type | Hard Solid Reversible |
| Weight Gross (lbs) | 168.87 |
| Includes | 1 Set of Hard Solid Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 15-3/4 |
| F (in) | 6.7480 |
| E (H7) (in) | 7.874 |
| d Hole (in) | 3.937 |
| C (in) | 0.394 |
| H (in) | 4.134 |
| h (in) | 1.961 |
| M Mounting Bolt Thread (mm) | M16 |
| M Mounting Bolt Length (in) | 3.7402 |
| Mounting Bolt Qty | 4 |
Crossover to Other Brands
| Bison | 7-850-1600 |
Accessories
| Jaws | |
|---|---|
| Hard Solid Reversible Jaws (Set) | RJ-PI-400 |
| Hard Top Jaws (Set) | TJ-PI-400 |
| Hard Master Jaws (Set) | MJ-PI-400 |
| Soft Top Jaws (1pc) | STJ-PS1-400 |
| Spare Parts | |
| Chuck Wrench (1Pc) | W-PI-400 |
| Operating Screw (1Pc) | OS-PI-400 |
| Thrust Bearing (1Pc) | TB-PI-400 |
| Chuck Mounting Bolts (1Pc) | MB-BI-400 |
| Adapters | |
| FLI Fully Machined Adapters A6 | FLI-400A6 |
| FLI Fully Machined Adapters A8 | FLI-400A8 |
| FLI Fully Machined Adapters A11 | FLI-400A11 |
| FLI Fully Machined Adapters D6 | FLI-400D6 |
| FLI Fully Machined Adapters D11 | FLI-400D11 |
