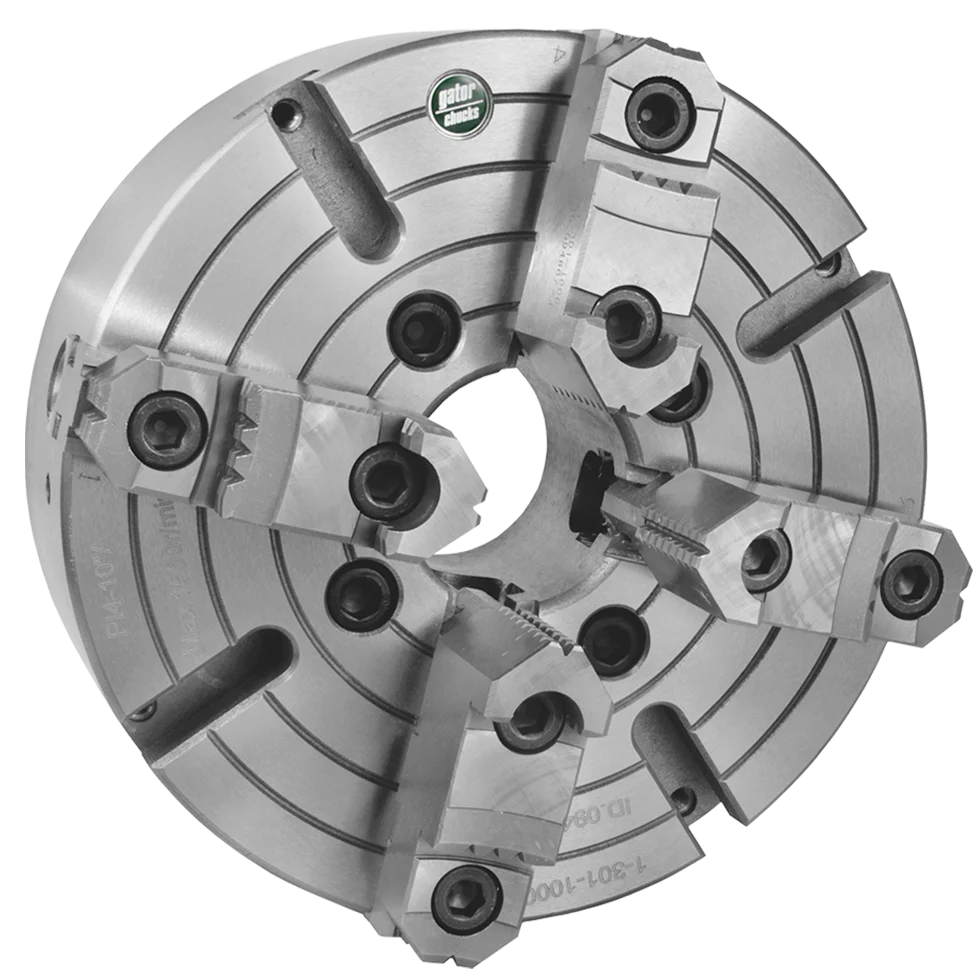

4-Jaw Independent, 16" Cast-Iron Body, Direct Mount A2-6, 2 PC Hard Rev. Jaws
Product Information
| Chuck Type | Independent |
| Chuck Mount | A2-6 |
| Spindle Type | A1/A2-6 |
| Chuck Dia (in) | 15-3/4 |
| Thru-Hole (in) | 3.937 |
| Gripping Range Min-Max (in) | .787 - 15.75 |
| Chuck T.I.R (in) | 0.0024 |
| Max RPM | 800 |
| Material | Cast Iron |
| Jaws | 4 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 194.01 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Chuck Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 15-3/4 |
| Taper Size | A2-6 |
| B (in) | 5.250 |
| G (in) | 4.188 |
| d Hole (in) | 3.937 |
| C (in) | 0.591 |
| H (in) | 4.134 |
| h (in) | 2.8465 |
| M Mounting Bolt Thread (in) | 1/2"-13 |
| Mounting Bolt Length (in) | 4 |
| Mounting Bolt Qty | 8 |
Accessories
| Jaws | |
|---|---|
| Hard Solid Reversible Jaws (Set) | RJ-PI-400 |
| Hard Top Jaws (Set) | TJ-PI-400 |
| Hard Master Jaws (Set) | MJ-PI-400 |
| Soft Top Jaws (1pc) | STJ-PS1-400 |
| Spare Parts | |
| Chuck Wrench (1Pc) | W-PI-400 |
| Operating Screw (1Pc) | OS-PI-400 |
| Thrust Bearing (1Pc) | TB-PI-400 |
| Chuck Mounting Bolts (1Pc) | BA-P-16-06 |
