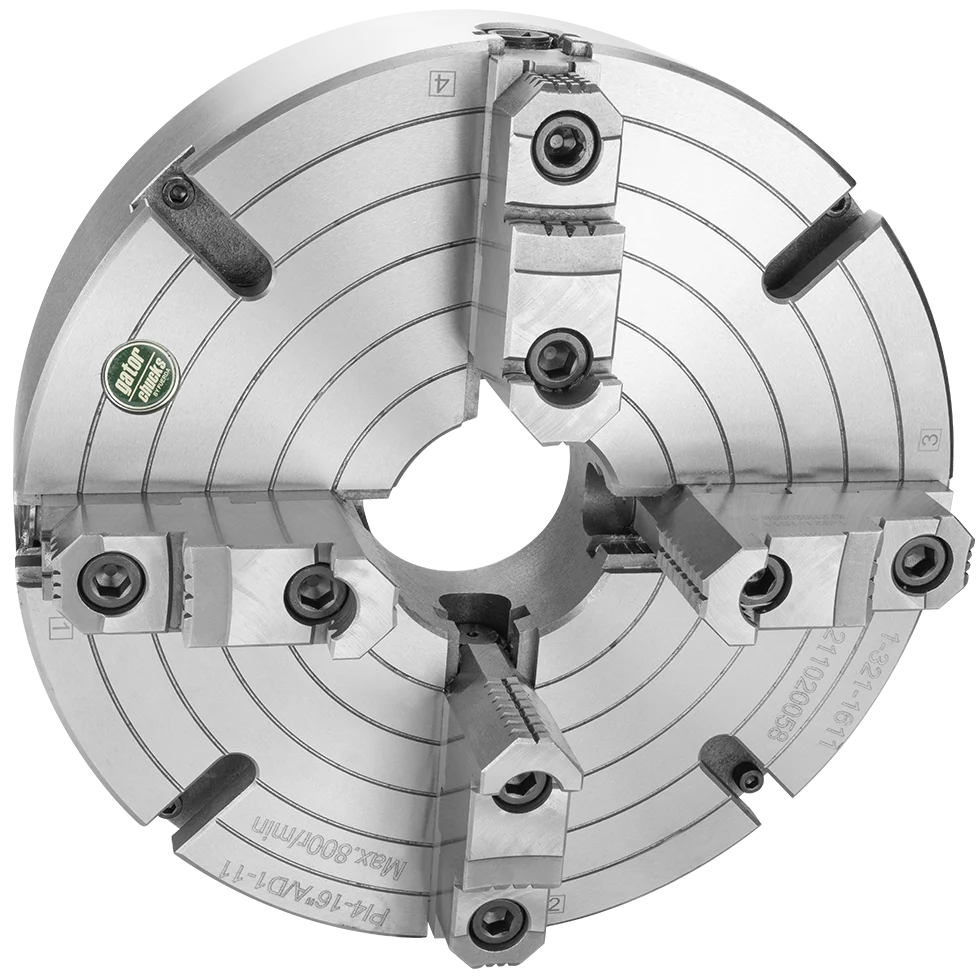

4-Jaw Independent, 12" Cast-Iron Body, Direct Mount D1-8, 2 PC Hard Rev. Jaws
Product Information
| Chuck Type | Independent |
| Chuck Mount | D1-8 |
| Spindle Type | D1-8 |
| Chuck Dia (in) | 12-1/2 |
| Thru-Hole (in) | 3.150 |
| Gripping Range Min-Max (in) | .591 - 12.40 |
| Chuck T.I.R (in) | 0.0020 |
| Max RPM | 1200 |
| Material | Cast Iron |
| Jaws | 4 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 136.69 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Chuck Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 12-1/2 |
| Taper Size | D1-8 |
| B (in) | 6.748 |
| G (in) | 5.5011 |
| d Hole (in) | 3.150 |
| C (in) | 0.7087 |
| H (in) | 3.74 |
| h (in) | 2.3980 |

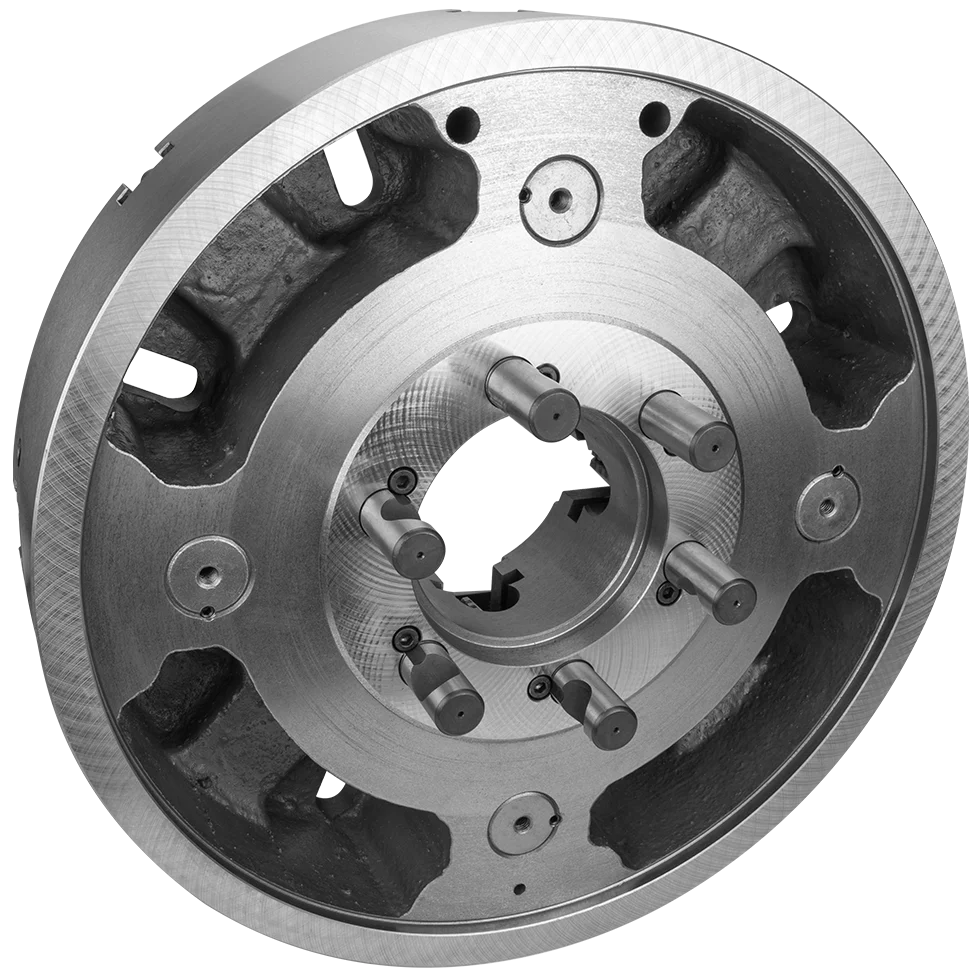

| Mounting Camlock Stud Thread (mm) | M20X1.5 |
| Mounting Camlock Stud OD Dia (in) | 1 |
| Camlock Stud Qty | 6 |
Accessories
| Jaws | |
|---|---|
| Hard Solid Reversible Jaws (Set) | RJ-PI-315 |
| Hard Top Jaws (Set) | TJ-PI-315 |
| Hard Master Jaws (Set) | MJ-PI-315 |
| Soft Top Jaws (1pc) | STJ-PS1-315 |
| Spare Parts | |
| Chuck Wrench (1Pc) | W-PI-400 |
| Operating Screw (1Pc) | OS-PI-315 |
| Thrust Bearing (1Pc) | TB-PI-315 |
| Camlock Studs (1Pc) | CA-D-08 |
