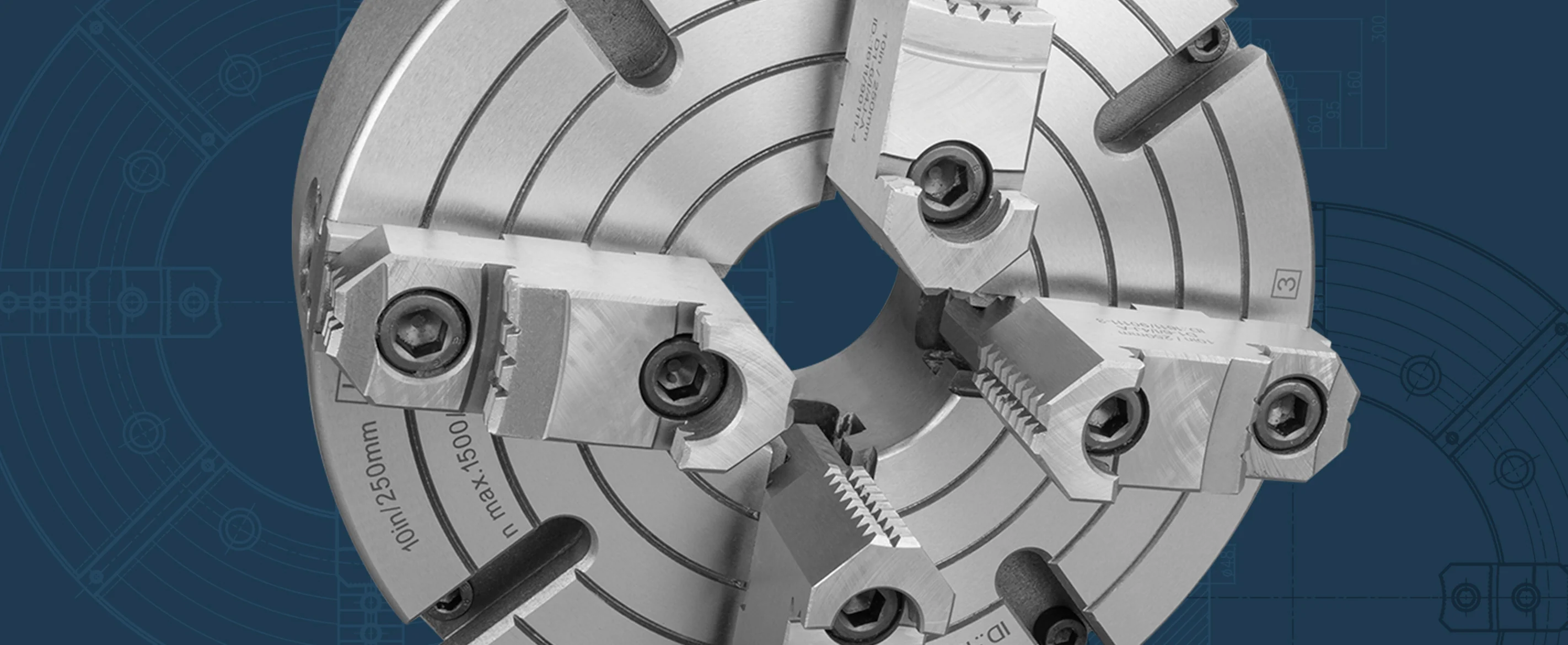

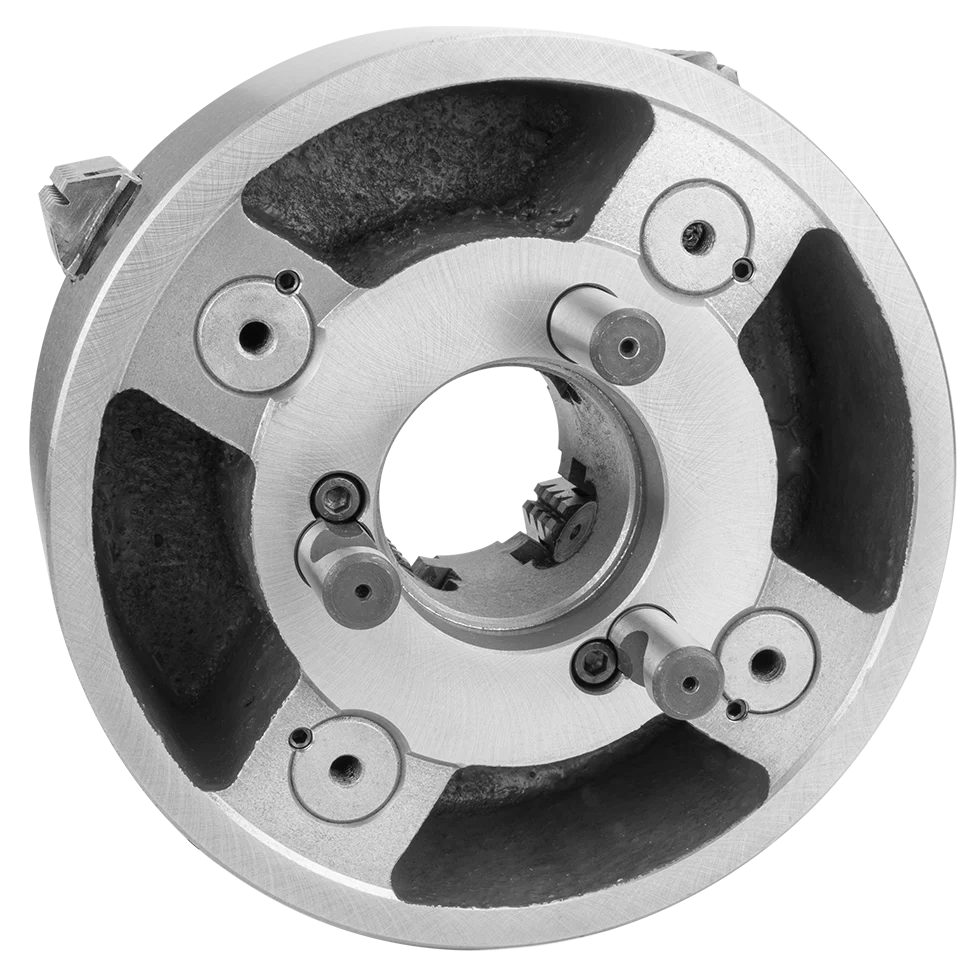

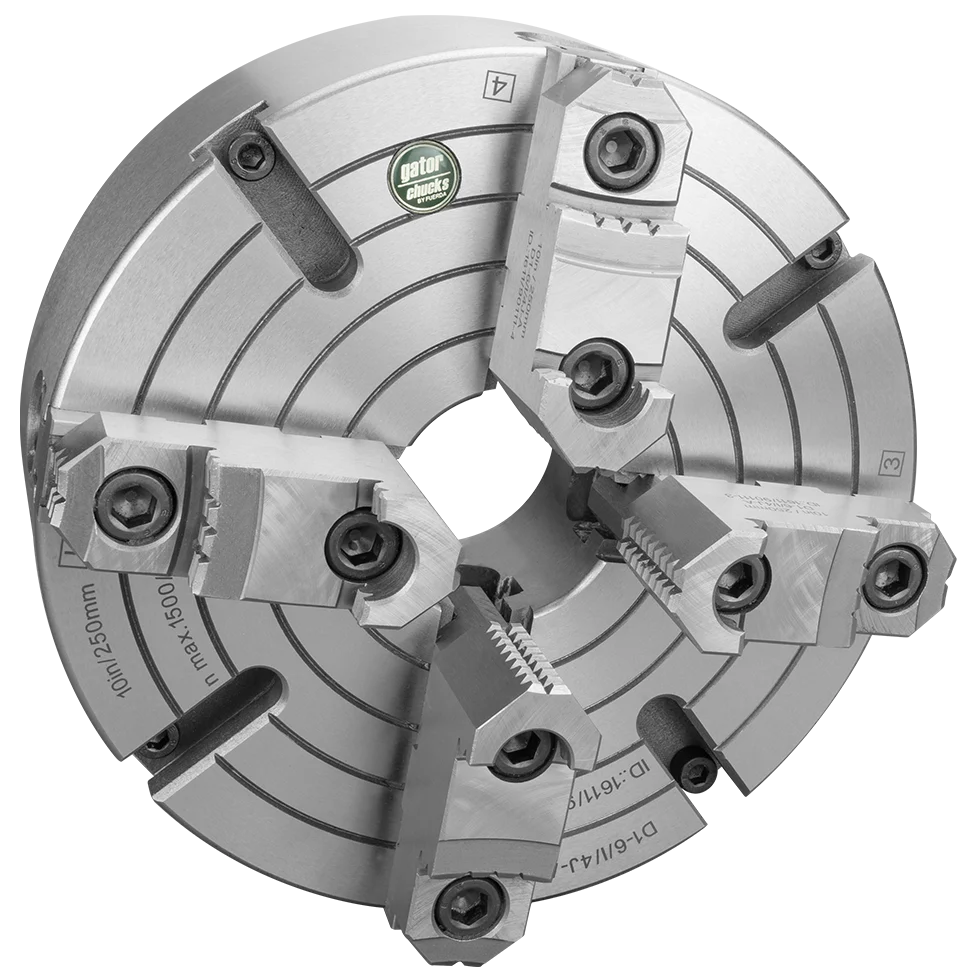

4-Jaw Independent, 10" Cast-Iron Body, Direct Mount D1-4, 2 PC Hard Rev. Jaws
Product Information
| Chuck Type | Independent |
| Chuck Mount | D1-4 |
| Spindle Type | D1-4 |
| Chuck Dia (in) | 10 |
| Thru-Hole (in) | 2.362 |
| Gripping Range Min-Max (in) | .394 - 9.84 |
| Chuck T.I.R (in) | 0.0016 |
| Max RPM | 1500 |
| Material | Cast Iron |
| Jaws | 4 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 73.41 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Chuck Mounting Bolts, Chuck Wrench, Hex Keys |
Product Dimensions
| D (in) | 10 |
| Taper Size | D1-4 |
| B (in) | 3.252 |
| G (in) | 2.501 |
| d Hole (in) | 2.362 |
| C (in) | 0.5118 |
| H (in) | 3.347 |
| h (in) | 2.3780 |
| Mounting Camlock Stud Thread (mm) | M10X1 |
| Mounting Camlock Stud OD Dia (in) | 5 / 8 |
| Camlock Stud Qty | 3 |
Accessories
| Jaws | |
|---|---|
| Hard Solid Reversible Jaws (Set) | RJ-PI-250 |
| Hard Top Jaws (Set) | TJ-PI-250 |
| Hard Master Jaws (Set) | MJ-PI-250 |
| Soft Top Jaws (1pc) | STJ-PS1-250 |
| Spare Parts | |
| Chuck Wrench (1Pc) | W-PI-250 |
| Operating Screw (1Pc) | OS-PI-250 |
| Thrust Bearing (1Pc) | TB-PI-250 |
| Camlock Studs (1Pc) | CA-D-04 |
