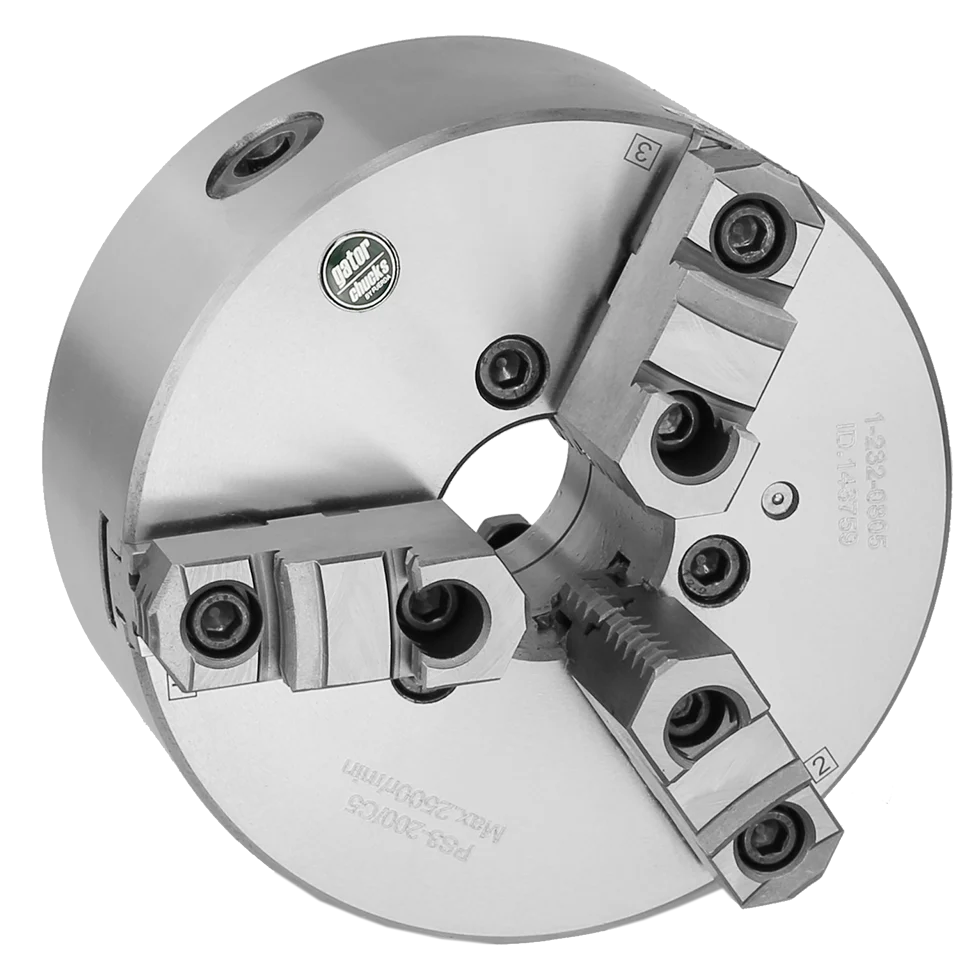

3-Jaw Scroll Chuck, 8" Cast-Iron Body, Direct Mount D1-6, 2 PC Hard Rev. Jaws
Product Information
| Title | 3-Jaw Scroll Chuck, 8" Cast-Iron Body, Direct Mount D1-6, 2 PC Hard Rev. Jaws |
| Chuck Type | Scroll Self-Centering |
| Chuck Mount | D1-6 |
| Spindle Type | D1-6 |
| Chuck Dia (in) | 8" |
| Thru-Hole (in) | 2.1653 |
| Gripping Range Min-Max (in) | 0.16 - 7.87 |
| Chuck T.I.R (in) | 0.0016 |
| Max RPM | 2500 |
| Material | Cast Iron |
| Jaws | 3 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 44.53 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Chuck Mounting Bolts, Chuck Wrench, Hex Keys |
Product Dimensions
| D (in) | 8" |
| Taper Size | D1-6 |
| d Hole (in) | 2.1653 |
| B (in) | 5.2520 |
| G (in) | 4.1880 |
| C (in) | .5905 |
| H (in) | 3.5827 |
| h (in) | 1.8307 |

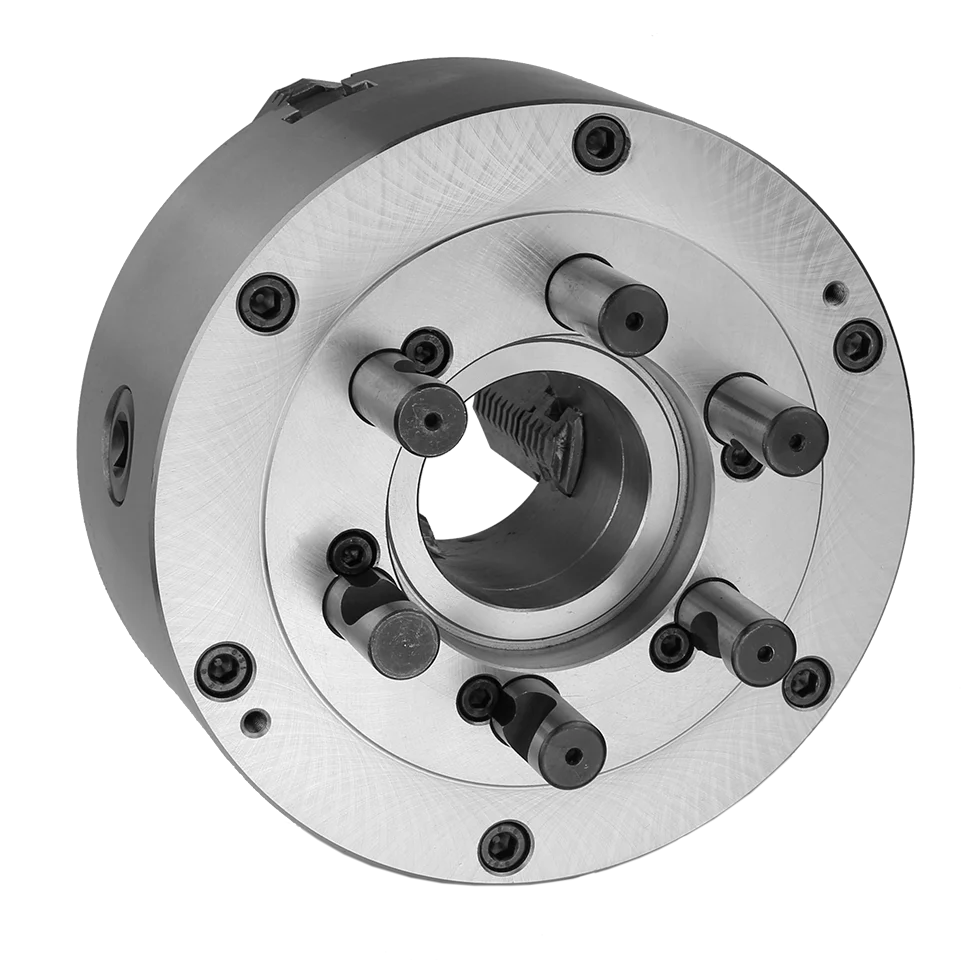

| CAMLOCK Stud OD (in) | 7/8 |
| CAMLOCK Stud Thread (mm) | M16x1.5 |
| CAMLOCK Stud Qty | 6 |
Crossover to Other Brands
| Bison | 7-803-0836 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (set) | TJ-PS3-200 |
| Hard Master Jaws (set) | MJ-PS3-200 |
| Soft Top Jaws (set) | STJ-PS1-200 |
| Spare Parts | |
| Chuck Wrench (1 pc) | W-P-200 |
| Scroll (1 pc) | SC-PS-200 |
| Pinion (1 pc) | PI-PS-200 |
| Pinion Screw (1 pc) | PH-P-200 |
| Camlock Studs (1 pc) | CA-D-06 |
