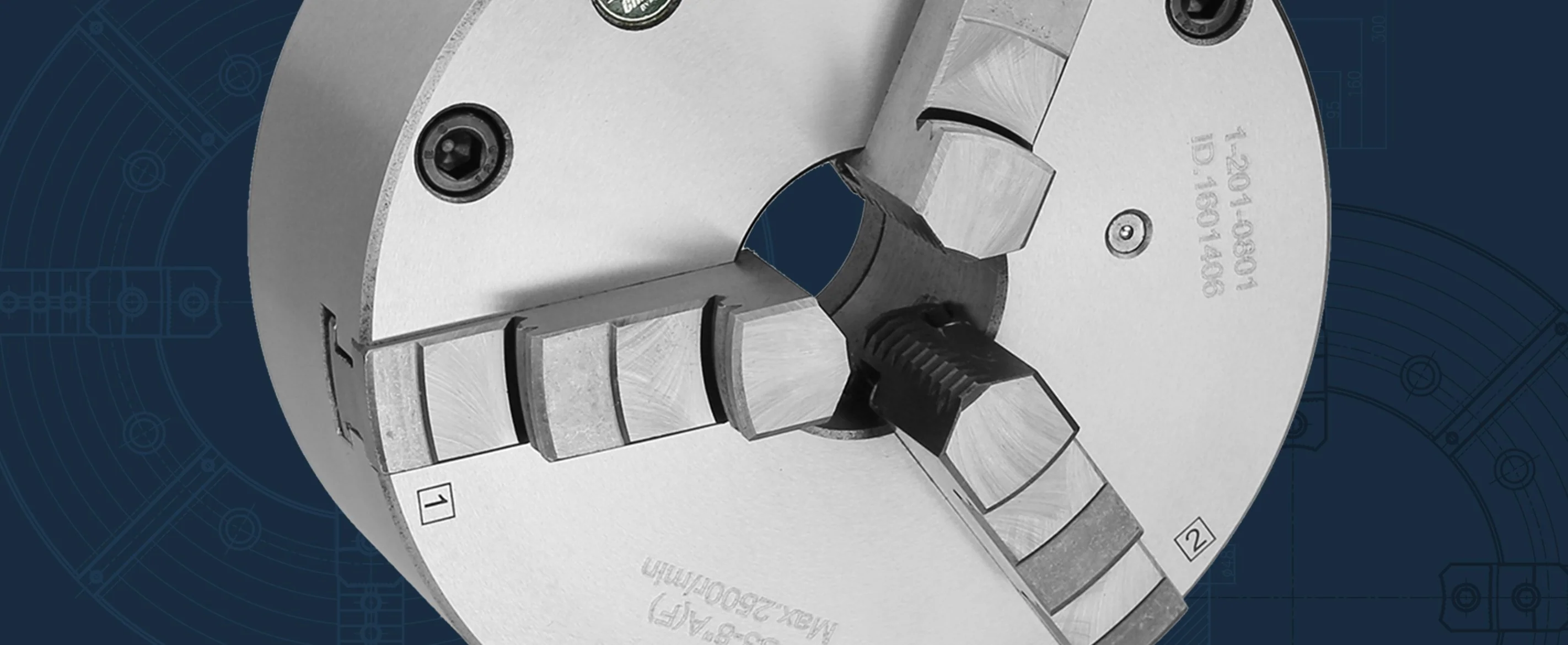

3-Jaw Scroll Chuck, 4" Cast-Iron Body, Front Mount, Hard Solid Jaws
Product Information
| Chuck Type | Scroll Self-Centering |
| Chuck Mount | Front Mount |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 4 |
| Thru-Hole (in) | .7874 |
| Gripping Range Min-Max (in) | 0.12 - 3.27 |
| Chuck T.I.R (in) | 0.0008 |
| Max RPM | 3500 |
| Material | Cast Iron |
| Jaws | 3 |
| Jaw Type | Hard Solid |
| Weight Gross (lbs) | 6.39 |
| Includes | 1 Set of Hard Solid ID & OD Jaws, Adapter Mounting Bolts,Chuck Wrench, Hex Keys |
Product Dimensions
| D (in) | 4 |
| F (in) | 3.2677 |
| E H7 (in) | 2.7559 |
| d Hole (in) | 0.7874 |
| C (in) | 0.1181 |
| H (in) | 1.969 |
| h1 (in) | 0.669 |
| M1 Front Mounting Bolt Thread (in) | 5/16"-18 |
| M1 Front Mounting Bolt Qty | 3 |
| M Back Mounting Bolt Thread (mm) | M8x1.25 |
| M Back Mounting Bolt Qty | 3 |
Crossover to Other Brands
| Bison | 7-811-0400 |
Accessories
| Jaws | |
|---|---|
| ID Hard Solid Jaws (Set) | OJ-PS3-100 |
| OD Hard Solid Jaws (Set) | IJ-PS3-100 |
| Soft Solid Jaws Optional (Set) | SJ-PS3-100 |
| Spare Parts | |
| Chuck Wrench (1Pc) | W-P-125 |
| Scroll (1Pc) | SC-PS-100 |
| Pinion (1Pc) | PI-PS-100 |
| Pinion Screw (1Pc) | PH-P-100 |
| Chuck Mounting Bolts G (1Pc) | MB-FS-100 |
| Chuck Mounting Bolts M (1Pc) | MB-BS-100 |
