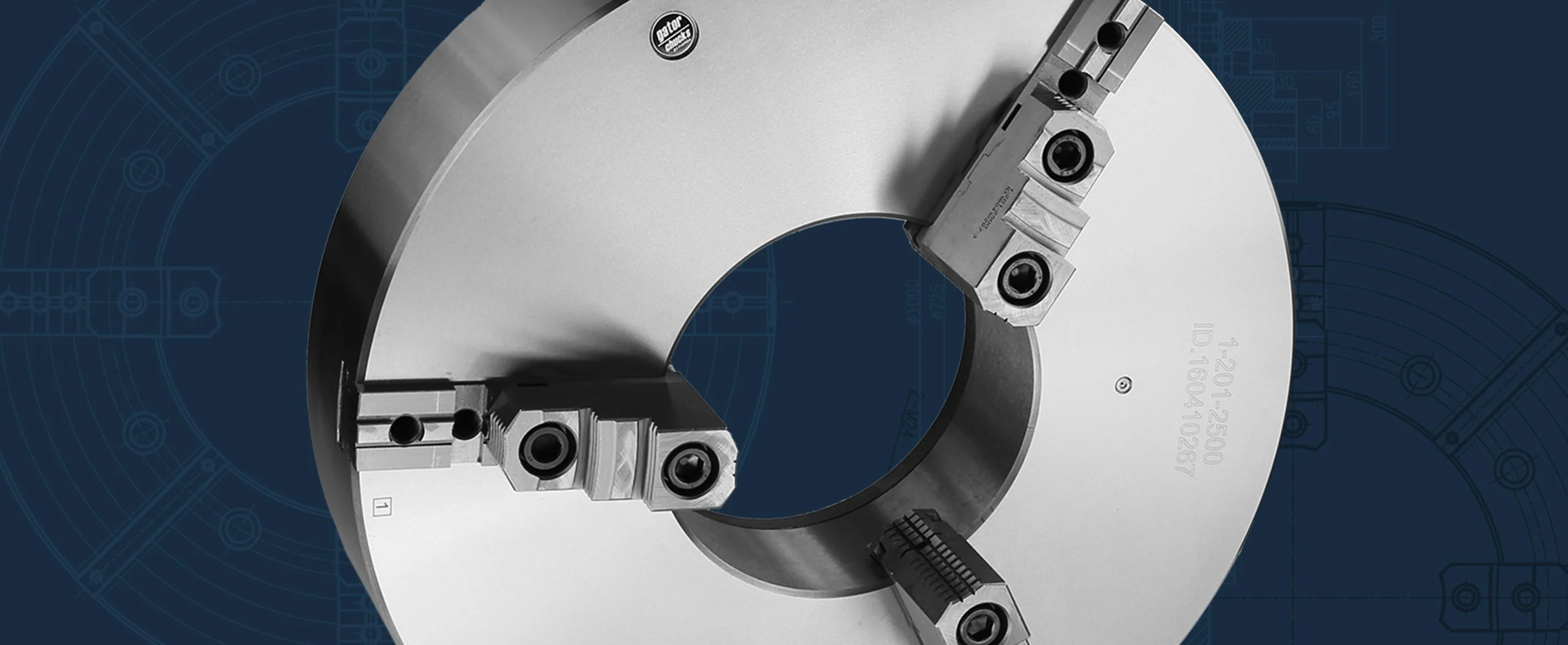

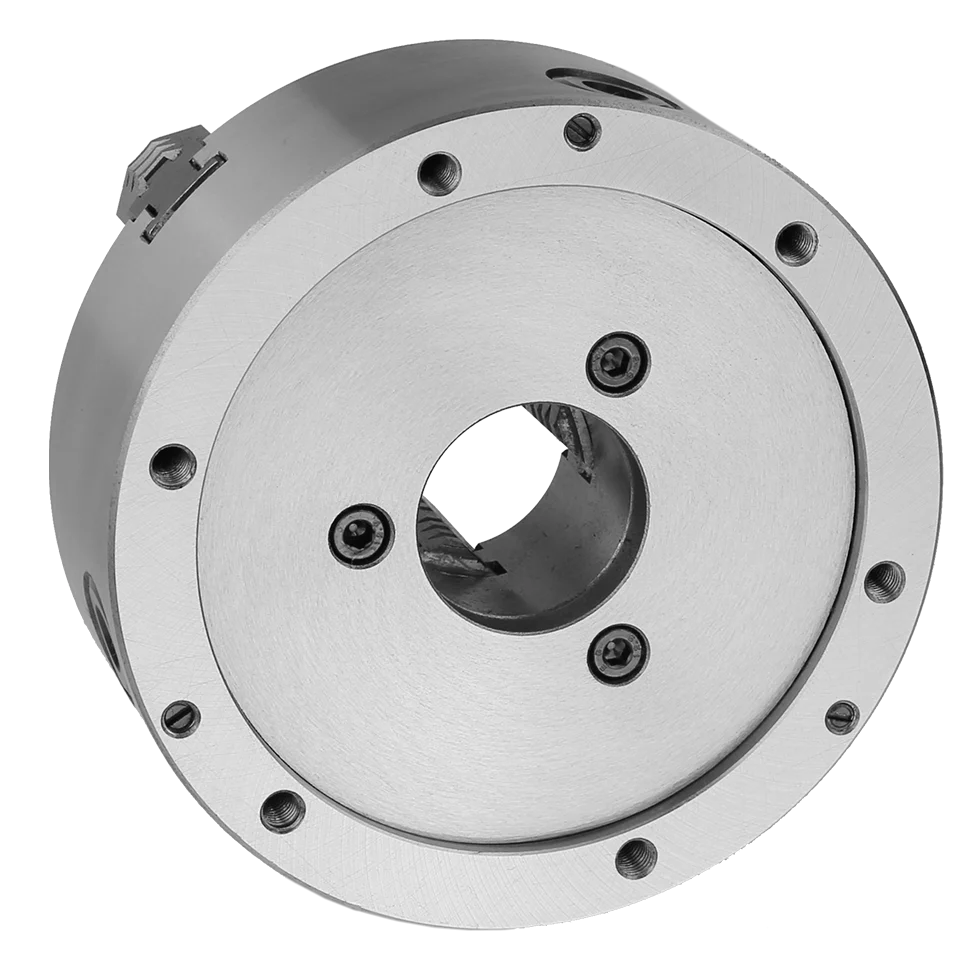

3-Jaw Scroll Chuck, 20" Cast-Iron Body, Plain Back, 2 PC Hard Rev. Jaws
Product Information
| Part Number | 1-201-2000 |
| Chuck Type | Scroll Self-Centering |
| Chuck Mount | Plain Back |
| Spindle Type | Requires Adapter |
| Chuck Dia (in) | 20" |
| Thru-Hole (in) | 7.4803 |
| Gripping Range Min-Max (in) | 0.79 - 19.69 |
| Chuck T.I.R (in) | 0.004 |
| Max RPM | 700 |
| Material | Cast Iron |
| Jaws | 3 |
| Jaw Type | 2 PC Hard Reversible |
| Weight Gross (lbs) | 304.24 |
| Includes | 1 Set of Master and Hard Top Reversible Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts |
Product Dimensions
| D (in) | 20 |
| F (in) | 18.0314 |
| E (H7) (in) | 16.5354 |
| d Hole (in) | 7.4803 |
| C (in) | .1969 |
| H (in) | 4.7244 |
| h (in) | 3.602 |
| M Mounting Bolt Thread |
M16x2 |
| M Mounting Bolt Length (in) |
1.57 |
| Mounting Bolt Qty |
6 |
Crossover to Other Brands
| Bison | 7-800-2000 |
Accessories
| Jaws | |
|---|---|
| Hard Top Jaws (set) | TJ-PS3-500 |
| Hard Master Jaws (set) | MJ-PS3-500 |
| Soft Top Jaws (set) | STJ-PS1-500 |
| Spare Parts | |
| Chuck Wrench (1 pc) | W-P-630 |
| Scroll (1 pc) | SC-PS-500 |
| Pinion (1 pc) | PI-PS-500 |
| Pinion Screw (1 pc) | PH-P-500 |
| Chuck Mounting Bolts (1 pc) | MB-BS-500 |
| Adapters | |
| FM Machined Adapters A8 | FM-500A8 |
| FM Machined Adapters A11 | FM-500A11 |
| FM Machined Adapters A15 | FM-500A15 |
| FM Machined Adapters D8 | FM-500D8 |
| FM Machined Adapters D11 | FM-500D11 |
| FM Machined Adapters D15 | FM-500D15 |
| FM Machined Adapters L2 | FM-500L2 |
| SM Semi-Finished Adapters A8 | SM-500A8 |
| SM Semi-Finished Adapters A11 | SM-500A11 |
| SM Semi-Finished Adapters A15 | SM-500A15 |
| SM Semi-Finished Adapters D1-8 | SM-500D8 |
| SM Semi-Finished Adapters D1-11 | SM-500D11 |
| SM Semi-Finished Adapters D1-15 | SM-500D15 |
| SM Semi-Finished Adapters L2 | SM-500L2 |
