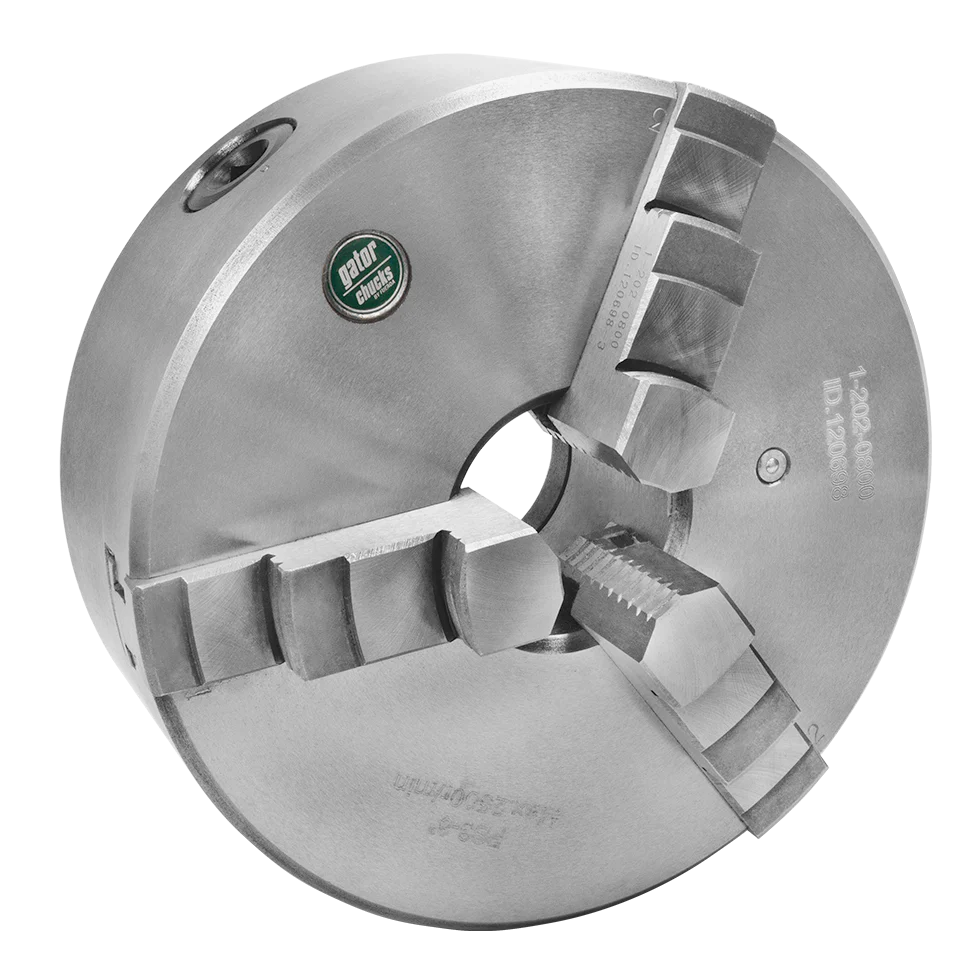

Product Information

Chuck Type	Scroll Self-Centering

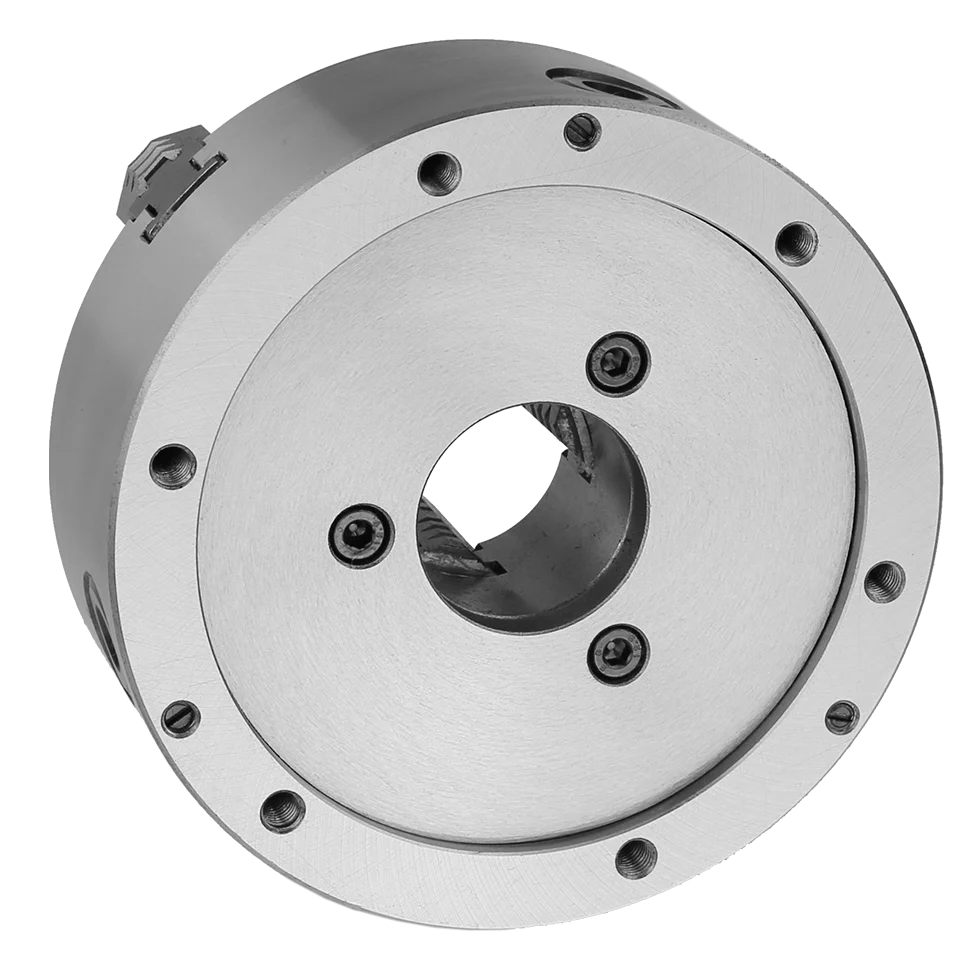

Chuck Mount	Plain Back
Spindle Type	Requires Adapter
Chuck Dia (in)	15-3/4"
Thru-Hole (in)	5.3543
Gripping Range Min-Max (in)	0.39 - 15.75
Chuck T.I.R (in)	0.0024
Max RPM	1000
Material	Cast Iron
Jaws	3
Jaw Type	Hard Solid
Weight Gross (lbs)	192.46
Includes	1 Set of Hard Solid ID & OD Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts

Product Dimensions

D (in)	15-3/4
F  (in)	14.2519
E (H7) (in)	12.9921
d Hole (in)	5.3543
C (in)	.1969
H  (in)	4.134
h1  (in)	2.165
M Mounting Bolt Thread	M16x2
M Mounting Bolt Length (in)	1.57
Mounting Bolt Qty	6

Crossover to Other Brands

Bison

7-810-1600

Accessories

Jaws
ID Hard Solid Jaws (set)	OJ-PS3-400
OD Hard Solid Jaws (set)	IJ-PS3-400
Soft Solid Jaws (set)	SJ-PS3-400
Spare Parts
Chuck Wrench (1 pc)	W-P-400
Scroll (1 pc)	SC-PS-400
Pinion (1 pc)	PI-PS-400
Pinion Screw (1 pc)	PH-P-400
Chuck Mounting Bolts (1 pc)	MB-BS-400
Adapters
FM Machined Adapters A6	FM-400A6
FM Machined Adapters A8	FM-400A8
FM Machined Adapters A11	FM-400A11
FM Machined Adapters D6	FM-400D6
FM Machined Adapters D8	FM-400D8
FM Machined Adapters D11	FM-400D11
FM Machined Adapters L1	FM-400L1
FM Machined Adapters L2	FM-400L2
FM Machined Adapters L3	FM-400L3
SM Semi-Finished Adapters A6	SM-400A6
SM Semi-Finished Adapters A8	SM-400A8
SM Semi-Finished Adapters A11	SM-400A11
SM Semi-Finished Adapters D1-6	SM-400D6
SM Semi-Finished Adapters D1-8	SM-400D8
SM Semi-Finished Adapters D1-11	SM-400D11
SM Semi-Finished Adapters L1	SM-400L1
SM Semi-Finished Adapters L2	SM-400L2
SM Semi-Finished Adapters L3	SM-400L3
