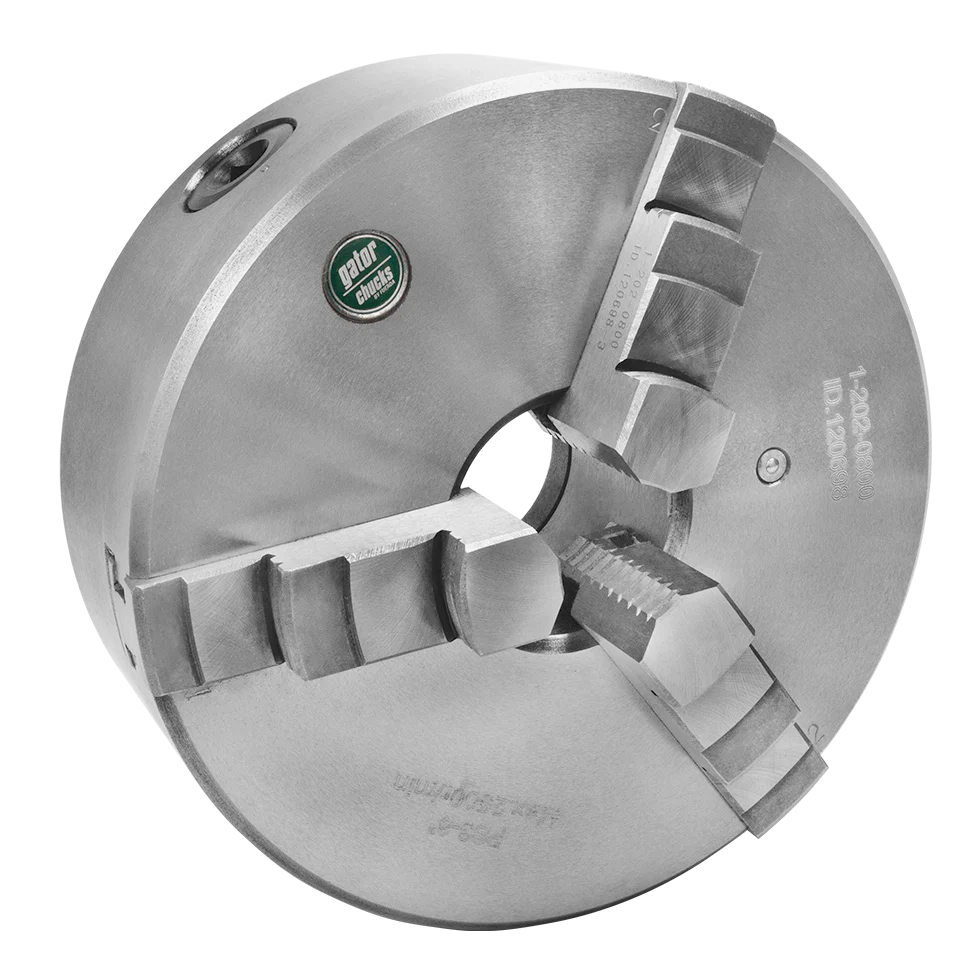

Product Information

Chuck Type	Scroll Self-Centering

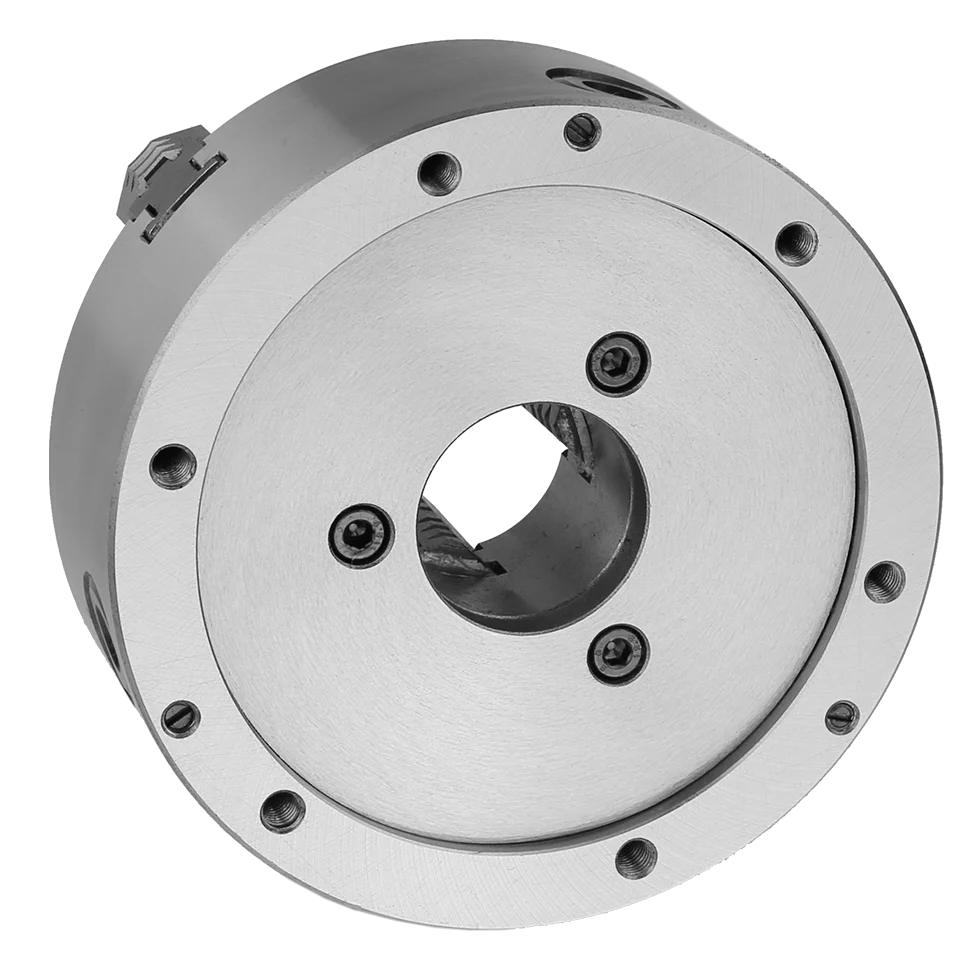

Chuck Mount	Plain Back
Spindle Type	Requires Adapter
Chuck Dia (in)	12-1/2"
Thru-Hole (in)	4.0551
Gripping Range Min-Max (in)	0.39 - 12.40
Chuck T.I.R (in)	0.002
Max RPM	1500
Material	Cast Iron
Jaws	3
Jaw Type	Hard Solid
Weight Gross (lbs)	117.07
Includes	1 Set of Hard Solid ID & OD Jaws, Adapter Mounting Bolts, Chuck Wrench, Hex Keys, Eye Bolts

Product Dimensions

D (in)	12-1/2
F  (in)	11.2598
E (H7) (in)	10.2362
d Hole (in)	4.0551
C (in)	.1969
H  (in)	3.701
h1  (in)	1.693
M Mounting Bolt Thread	M16x2
M Mounting Bolt Length (in)	1.18
Mounting Bolt Qty	6

Crossover to Other Brands

Bison

7-810-1200

Accessories

Jaws
ID Hard Solid Jaws (set)	OJ-PS3-315
OD Hard Solid Jaws (set)	IJ-PS3-315
Soft Solid Jaws (set)	SJ-PS3-315
Spare Parts
Chuck Wrench (1 pc)	W-P-315
Scroll (1 pc)	SC-PS-315
Pinion (1 pc)	PI-PS-315
Pinion Screw (1 pc)	PH-P-315
Chuck Mounting Bolts (1 pc)	MB-BS-315
Adapters
FM Machined Adapters A6	FM-315A6
FM Machined Adapters A8	FM-315A8
FM Machined Adapters A11	FM-315A11
FM Machined Adapters D6	FM-315D6
FM Machined Adapters D8	FM-315D8
FM Machined Adapters D11	FM-315D11
FM Machined Adapters L0	FM-315L0
FM Machined Adapters L1	FM-315L1
FM Machined Adapters L2	FM-315L2
SM Semi-Finished Adapters A6	SM-315A6
SM Semi-Finished Adapters A8	SM-315A8
SM Semi-Finished Adapters A11	SM-315A11
SM Semi-Finished Adapters D1-6	SM-315D6
SM Semi-Finished Adapters D1-8	SM-315D8
SM Semi-Finished Adapters D1-11	SM-315D11
SM Semi-Finished Adapters L0	SM-315L0
SM Semi-Finished Adapters L1	SM-315L1
SM Semi-Finished Adapters L2	SM-315L2
SM Semi-Finished Adapters 2-3/8-6UN-2B (T6)	SM-315T6
